11 Commissioning
112 PHLOX II Ignition Control System
No charge
This error is displayed if the energy level set point required has not been reached before
ignition. In this case, the measured charge duration [Par. 13700-13715] should be higher
than the maximum charge duration available [Par. 13750-13765].
Possible causes:
Wrong pick-up configuration. Follow instructions given in paragraph 2
Unit power supply failure (for example empty battery). Check the measured
power supply voltage [Par. 3600]. Note: the voltage may be correct at the en-
gine stop but may fail when engine is running.
The min. and max. current settings for the charge process are inadequate [Par.
1950-1951]. Increase the max. current setting up to 20-25A.
Wrong cylinder individual ignition timing corrections (for example one cyl-
inder with +12 deg BTDC, the next one with -12 deg BTFD).
Primary Short
This error is displayed if a short circuit is detected on the primary ignition coil circuit. In
this case the spark duration [Par. 13650-13665] will be displayed as 0,010ms. As this kind
of failure can overstress the unit, it is recommended that you turn off the ignition as soon

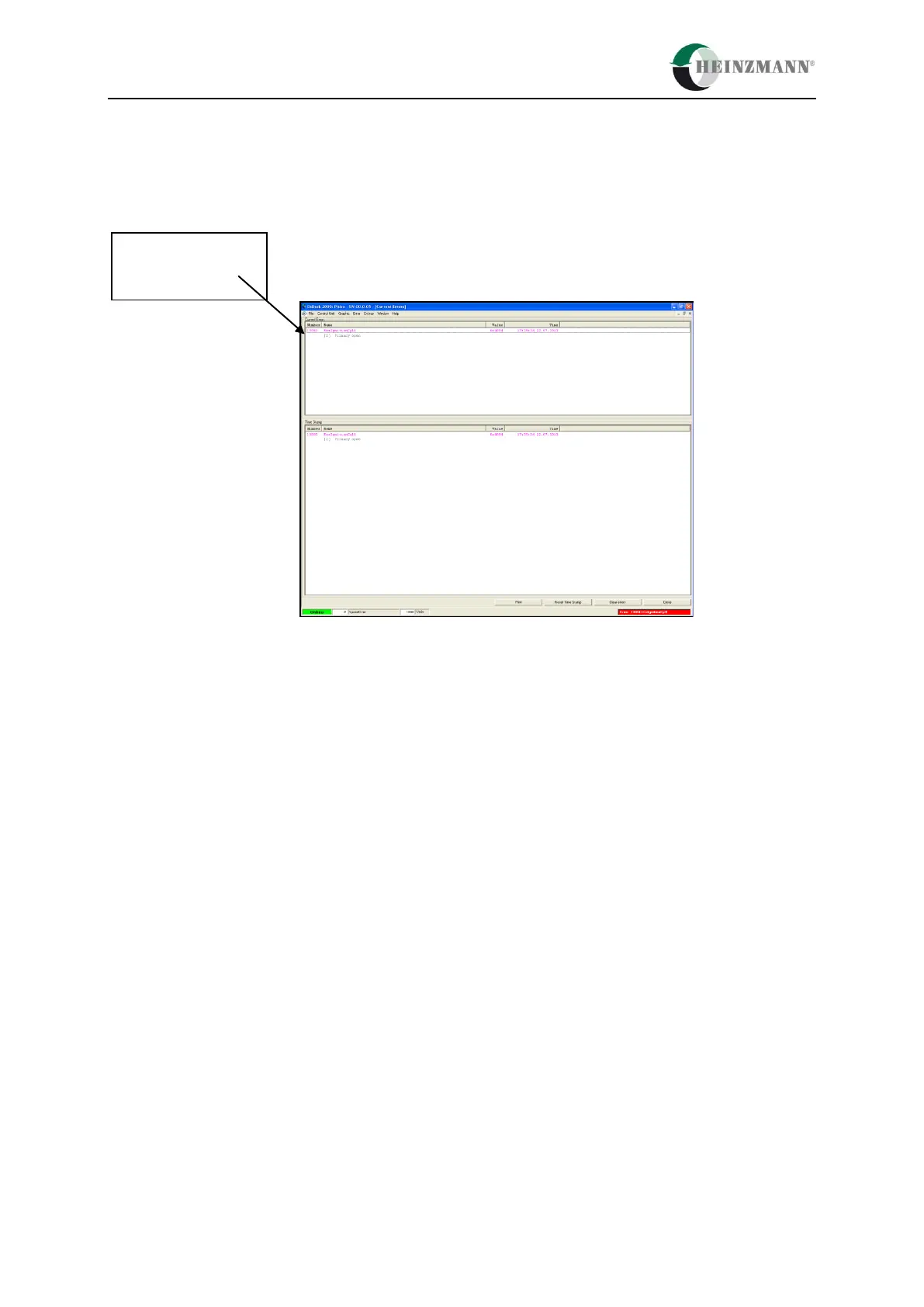

Error detected
for cylinder #1
Error type: Pri-
mary Open
