11 Commissioning
PHLOX - Ignition Control System 109

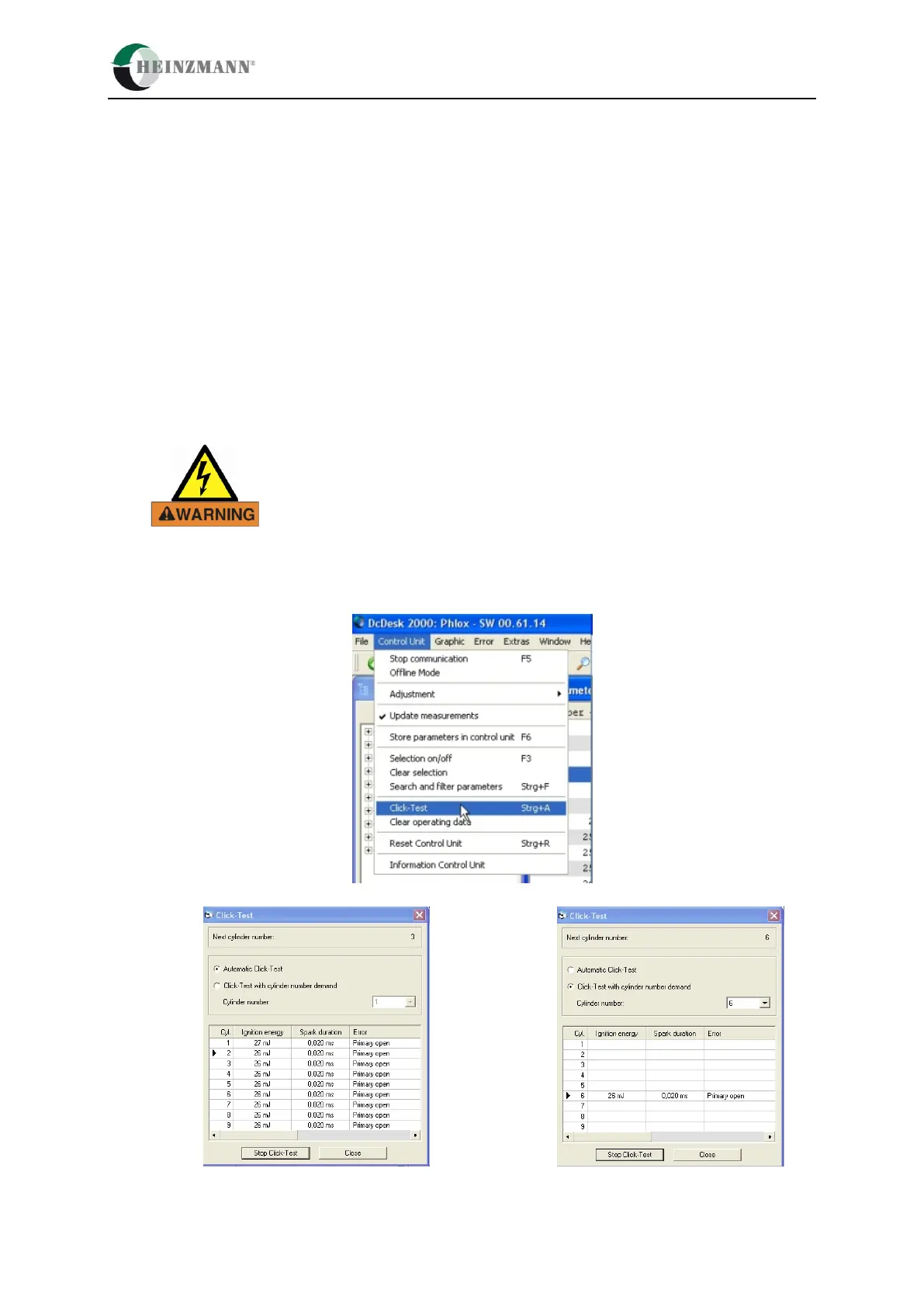

11.10 Ignition test
When the engine is stopped, a test mode can be found under the menu Control Unit ->
Click-Test. The ignition test is started / stopped by using the relevant button in the ignition
test window. During the test, ignition can be forced on one particular cylinder or on all cyl-
inders alternatively. This test-mode is clearly indicated before the first time the engine
starts up in order to verify that each PHLOX II output is connected to the right cylinder
and that no problems occur with the primary and secondary circuits (for example short cir-
cuit in the primary cable, faulty sparkplug). To perform this test, high voltage cable(s) and
sparkplug(s) must be disconnected from the engine and the spark plug ground connected to
engine ground. All ignition diagnostics must be active while the test-mode is active.
Danger of serious injuries due to live currents!
Do not touch any of the ignition components (spark plugs,
high voltage cables, ignition coils) while the test is running
Ignition test on all cylinders alternatively Ignition test on Cylinder Nr. 6
