11 Commissioning
PHLOX - Ignition Control System 73
11 Commissioning
11.1 Software versions

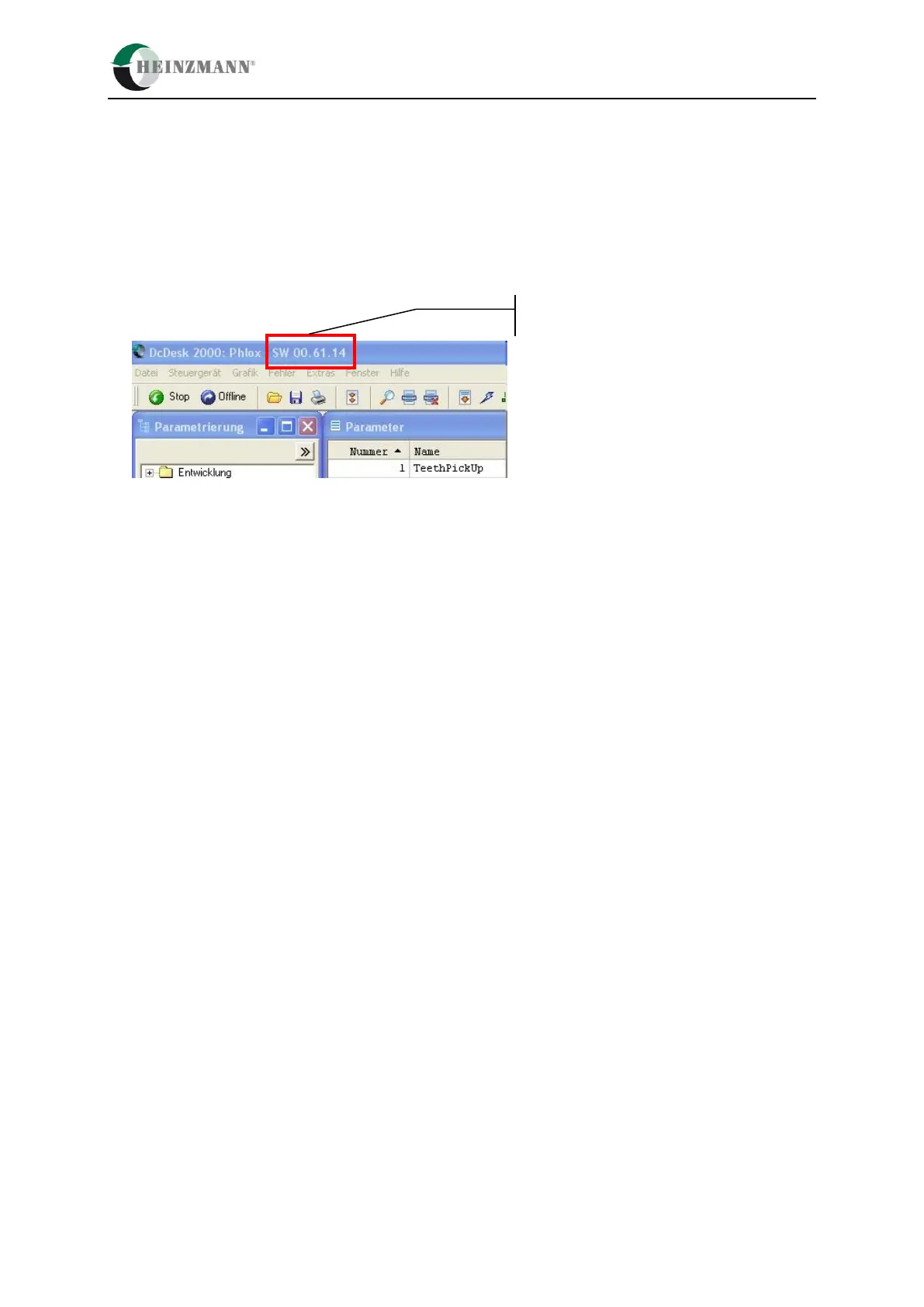

The PHLOX II control unit can be delivered with different firmware, the version of which
is displayed at the top of the DcDesk window.
The structure of the firmware version designation is as follows:
SW AAA.BC.DD with
AAA: Customer number in case of customer specific modification or need for a limited
DcDesk access to the PHLOX II control unit (00 means Heinzmann standard firmware)
BC: Firmware variant
B: CAN or ModBus implementation
o 6: ModBus, 8: CAN SAE J1939, 9: CANopen
C: Pick-up configuration
o 0: 1 pick-up on a camshaft trigger disc
o 1:
1 pick-up on a X-1 measuring wheel (single gap) on crankshaft and
1 pick-up as reference index on camshaft
OR
1 pick-up on a X-1 measuring wheel (single gap) on camshaft
o 2:
1 pick-up on a X-2 measuring wheel (double gap) on crankshaft and
1 pick-up as reference index on camshaft
OR
1 pick-up on a X-2 measuring wheel (double gap) on camshaft
o 4: 2 redundant pick-ups on a X-1 measuring wheel (single gap) on cam-
shaft
