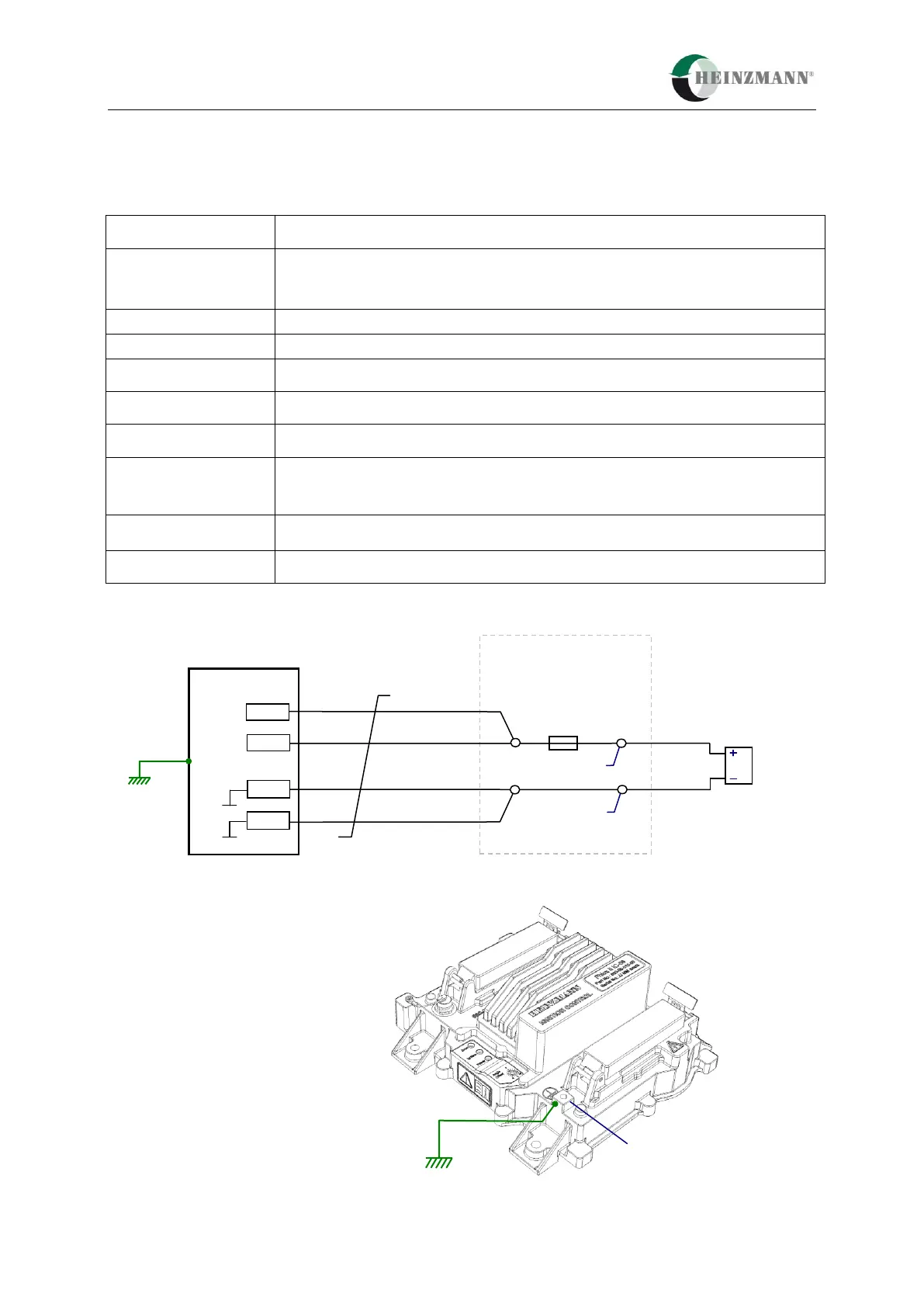

6 Installation
26 PHLOX II Ignition Control System
6.3.2 DC power supply terminal end protoctive earth
Category
DC – direct current power input (incorporated in S3 –cable)
Designation
Wires for DC power supply input:
terminals 1 / 14 (-Bat),
terminals 2 / 15 (+Bat)
Function of terminal
Power supply
Range
12 … 32 V (DC) , max. 10 A
Connected to
PHLOX and control cabinet terminal block (power supply 24V (DC)
Type of cord used
Wire 1.5 ... 2.5 mm
2
, unshielded
Max. length
< 200 m
Requirements
- Use 10 AT / 32 V (DC) C-type fuse or circuit-breaker
- Connect PE (protective earth) to PE-wiring point at PHLOX II housing.
Note
Incorporated in the input cable harness of PHLOX II, cable to the control cabinet
Recommendation for test
See test arrangement
The PE-wire between PE-terninal and
metal construction elements, connected to PE:
conductor 2,5mm
2
, length 200mm max
Connection place for screw M6
- Bat
T. 1
+Bat
T. 15
PHLOX II
Power
supply
+24 V
DC
0V
Fuse 10AT
or circuit-breaker
to other dev.
to other dev.
Control-cabinet
T. 14
T. 2
- Bat
+Bat
