10 Configuring the control’s inputs and outputs
66 PHLOX II Ignition Control System
10.4.3 Value Range of output parameters
When values are to be read out, it will sometimes not be the entire range that is of inter-
est but only a restricted one. Therefore, output via the PWM output can be adapted to
the desired range by means of the 1603 / 1608 PWMOutx_ValueMin and 1604 / 1609
PWMOutx_ValueMax. As there are a great many different value ranges, these parame-
ters are to be set to the required low and high output values specified in per cent of the
value range of the respective output parameter.

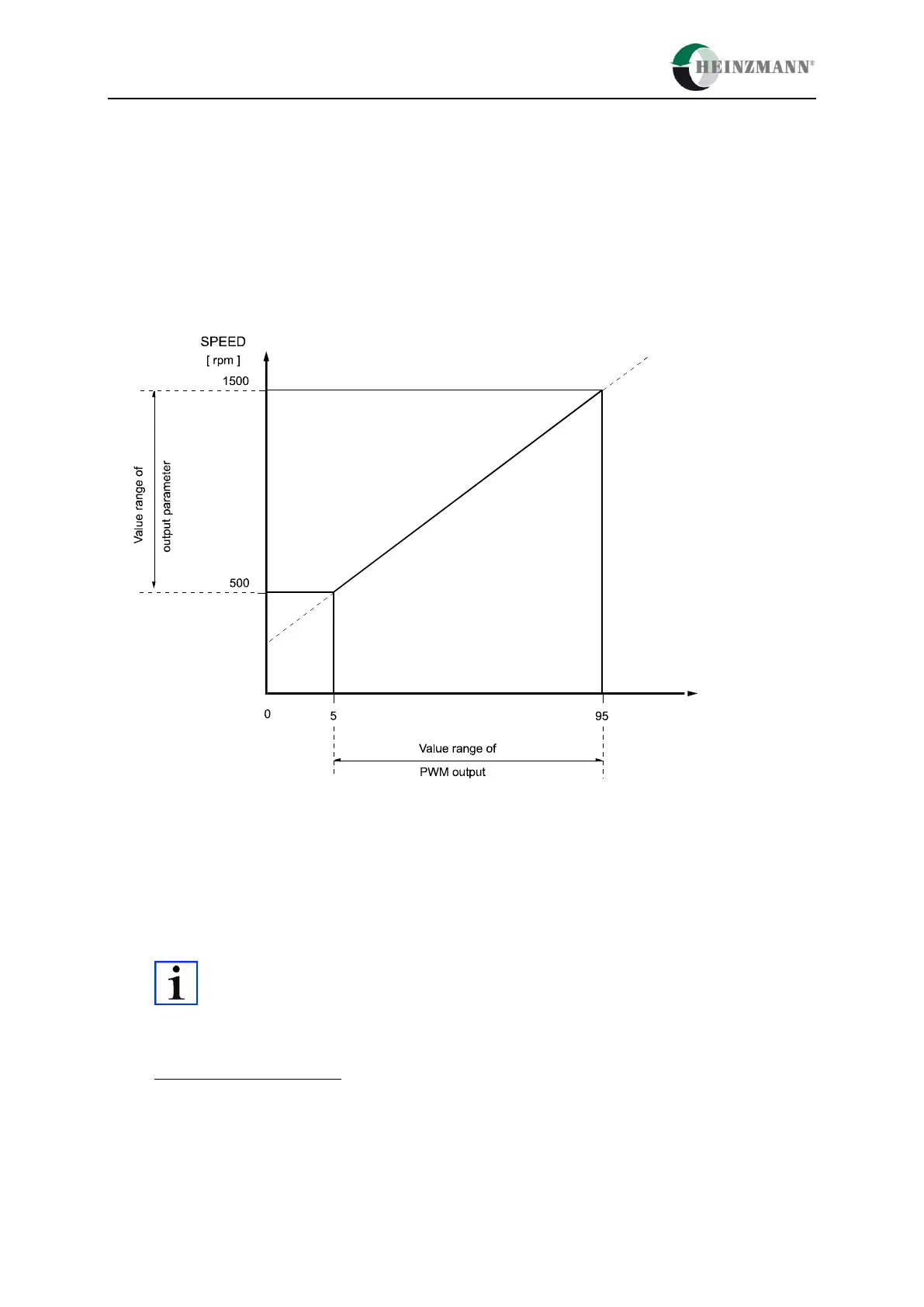

Figure 10: Reading out a parameter via a PWM output
If the entire value range is required, the minimum value should be set to 0 % and the
maximum value to 100 %.
The HEINZMANN PC programme DcDesk 2000 features a special window
for PWM outputs, where the value ranges of the output parameters are
listed with their physical values and the respective percentage values are
calculated.
Parameterising Example:
Actual speed 2000 Speed is to be read out via a PWM output but the range is to be re-
stricted to 500 rpm - 1500 rpm, i.e., 500 rpm will correspond to 5 % and
1500 rpm to 95
%. As the values of this parameter have a range from 0 to 4000 rpm, the output will
have to be adapted:
