11 Commissioning
PHLOX - Ignition Control System 105

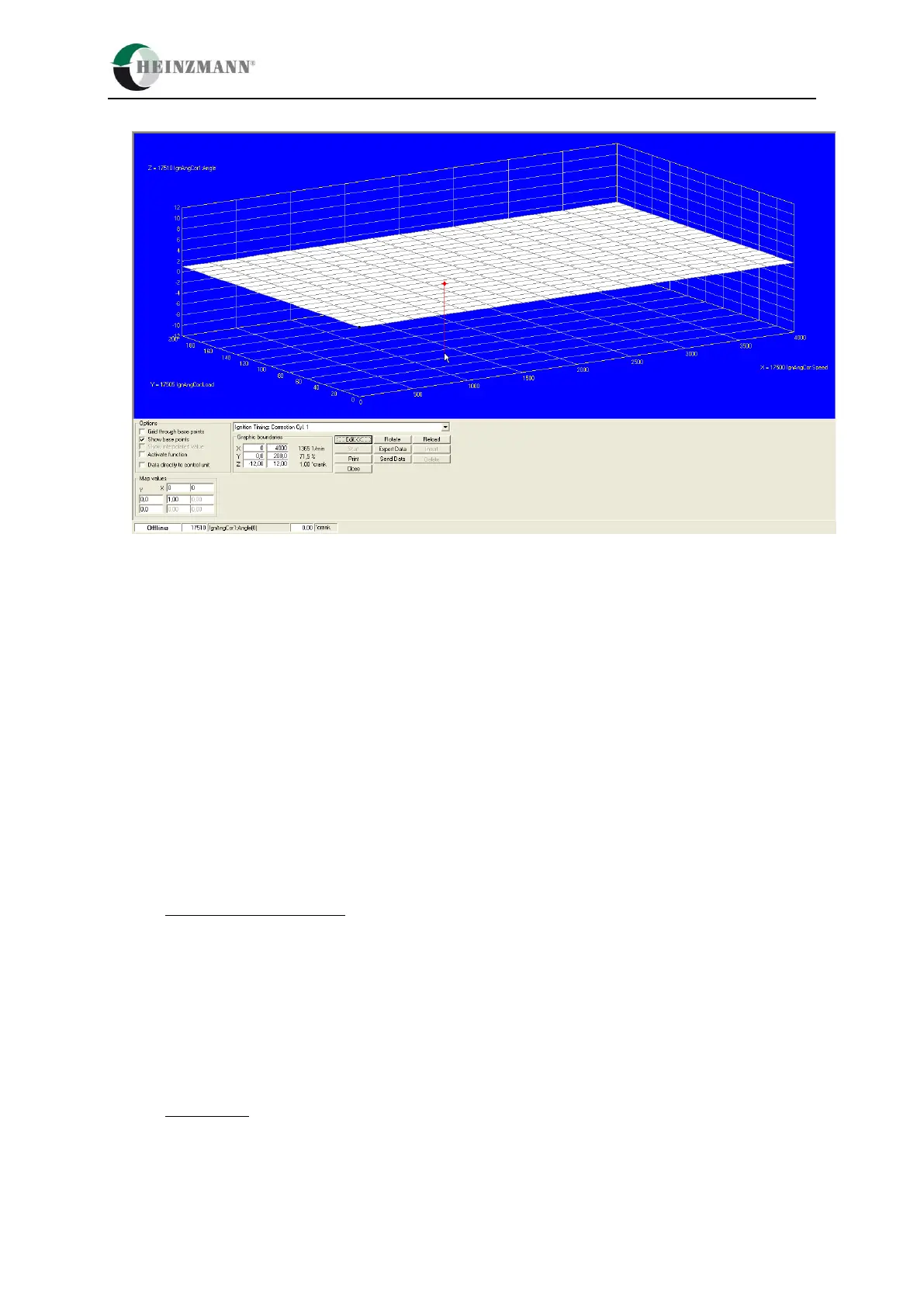

Once everything has been configured, the cylinder individual ignition angle correction
maps must be activated by:
Par. 5920 = 1
11.8.2 External cylinder specific knock retards
If knock retards need to be used, the PHLOX II and Ariadne control units must be con-
nected by CAN bus.
CAN bus settings
- To set up the baud rate of the CAN bus, perform following configuration
PHLOX II and Ariadne:
Par. 416 = baud rate [125, 250, 500, 1000 kBaud]
Par. 4416 = 0
Attention: the settings in both control units must be identical
- To setup the CAN bus participant numbers of each control unit, perform following con-
figuration:
PHLOX II:
Par. 401 = PHLOX CAN participant number
Par. 430 = Ariadne CAN participant number
