11 Commissioning
116 PHLOX II Ignition Control System

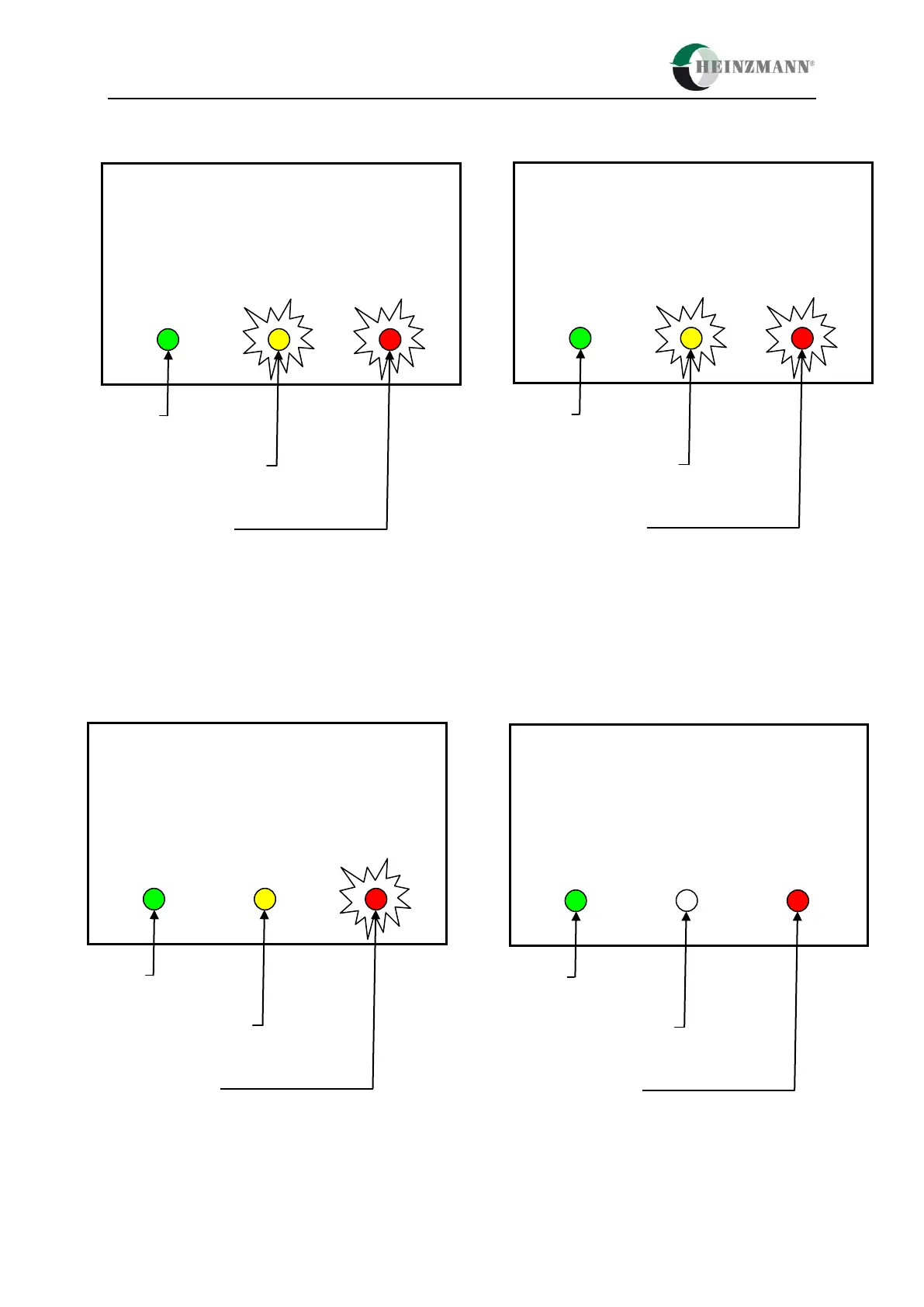

Power on
Speed detected,
Not synchron. to disk / gap,
Ignition off
No fatal error,
Alarm detected
Power
Ignition
Error
Flashing
2x100ms
1s delay
Flashing
1x/s
Power on
Speed detected,
Synchron. to disk / gap,
Ignition off
No fatal error,
Alarm detected
Power
Ignition
Error
Flashing
2x/s
Flashing
1x/s
Power on
Speed detected,
Synchron. to disk / gap,
Ignition on
No fatal error,
Alarm detected
Power
Ignition
Error
Flashing
1x/s
Power on
No speed detected,
Not synchron. to disk / gap,
Ignition off
Fatal error
Power
Ignition
Error
