Heinzmann PHLOX II IC-08 User Manual

6 Installation
PHLOX II Ignition Control System 29

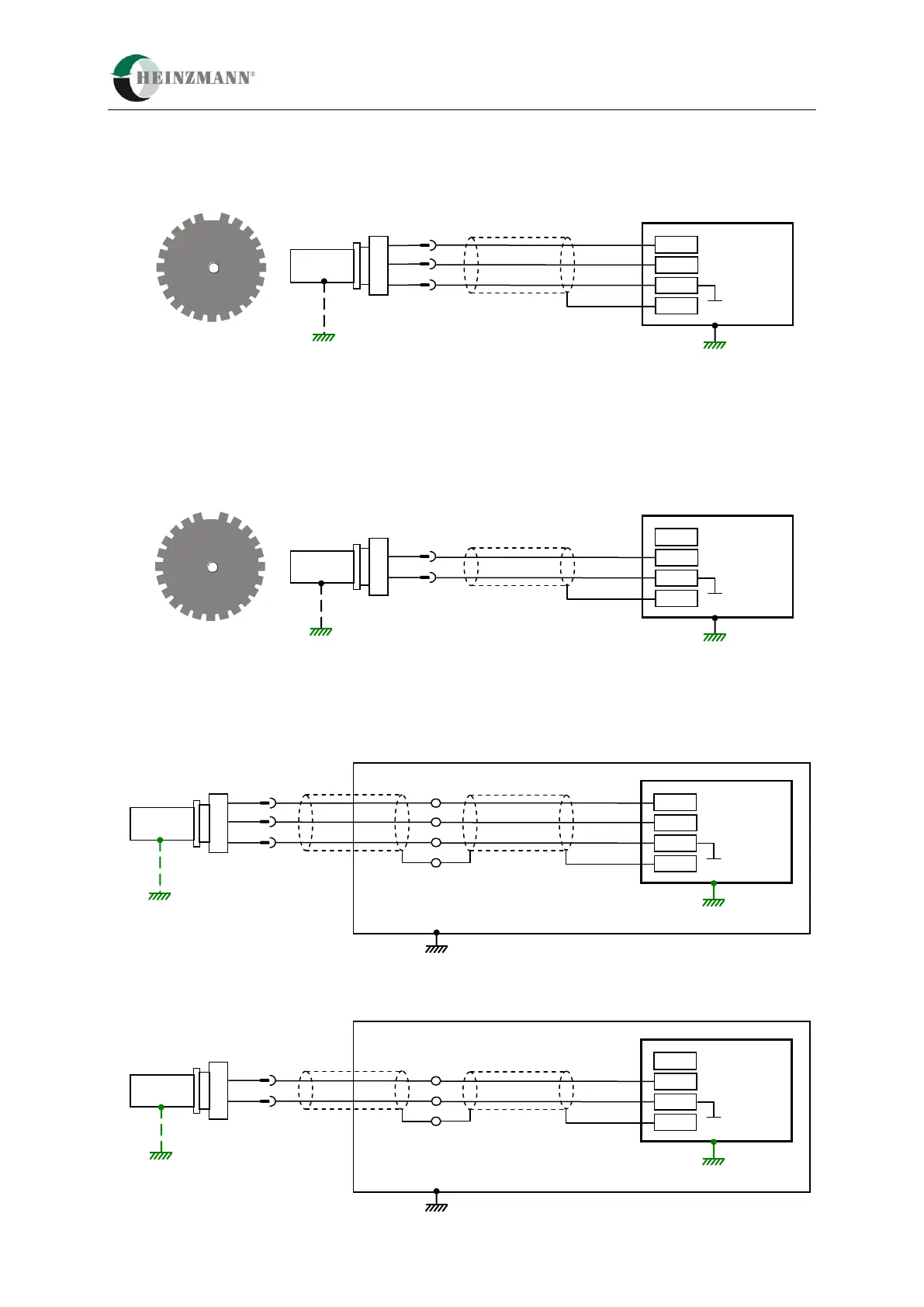

Connection to Hall effect shaft position sensor by ECU on the engine-block or other construction
Connection to inductive shaft position sensor by ECU on the engine-block or other construction
Connection to Hall effect shaft position sensor by ECU in control-cabinet
Connection to inductive shaft position sensor by ECU in control-cabinet
0V
T. 25
Hall-effect
Pick-Up Sensor
T. 13
PHLOX II
T. 22
Sig
5/12V
PE
T. 10
PE by engine-block
Shield
0V
T. 25
Induvtive
Pick-Up Sensor
T. 13
PHLOX II
T. 22
Sig
T. 10
PE by engine-block
PE
Shield
0V
T. 25
Hall-effect
Pick-Up Sensor
T. 13
PHLOX II
T. 22
Sig
5/12V
Cabinet terminals
Control-cabinet
Connection to mounting-plate
with PE-potential
PE
T. 10
PE by engine-block
Shield
0V
T. 25
Inductive
Pick-Up Sensor
T. 13
PHLOX II
T. 22
Sig
Cabinet terminals
Control-cabinet
Connection to mounting-plate
with PE-potential
PE
T. 10
PE by engine-block
Shield
