ENGINE (J05E)/TROUBLESHOOTING2–160
DTC: P007C and P007D
EN01H02127030602016034
P007C: Intake air temperature sensor (intercooler outlet) - out of range (Out of range low)
INFORMATION
1. Technical description
• The intake air temperature sensor (intercooler outlet) installed to the downstream of the boost pressure sensor con-
sistently measures temperature at the outlet of the intercooler.
<Description of malfunction>
• The intake air temperature at the intercooler outlet cannot be correctly recognized.
2. DTC set condition
(1) DTC detection condition
• Starter key "ON".
• Battery voltage is in the range of 10 V to 16 V.
• The engine is stopped, or the engine speed remains at 500 r/min or more for 5 seconds or more.
(2) Judgement criteria
• Output of the intake air temperature sensor (intercooler outlet) remains at 0.06 V (200 C {392 F})or less for 3
seconds or longer.
3. Reset condition
• After restoration to normal condition
4. Indication, warning or system control regulation when the DTC is set.
• MIL: ON
• SVS light: OFF

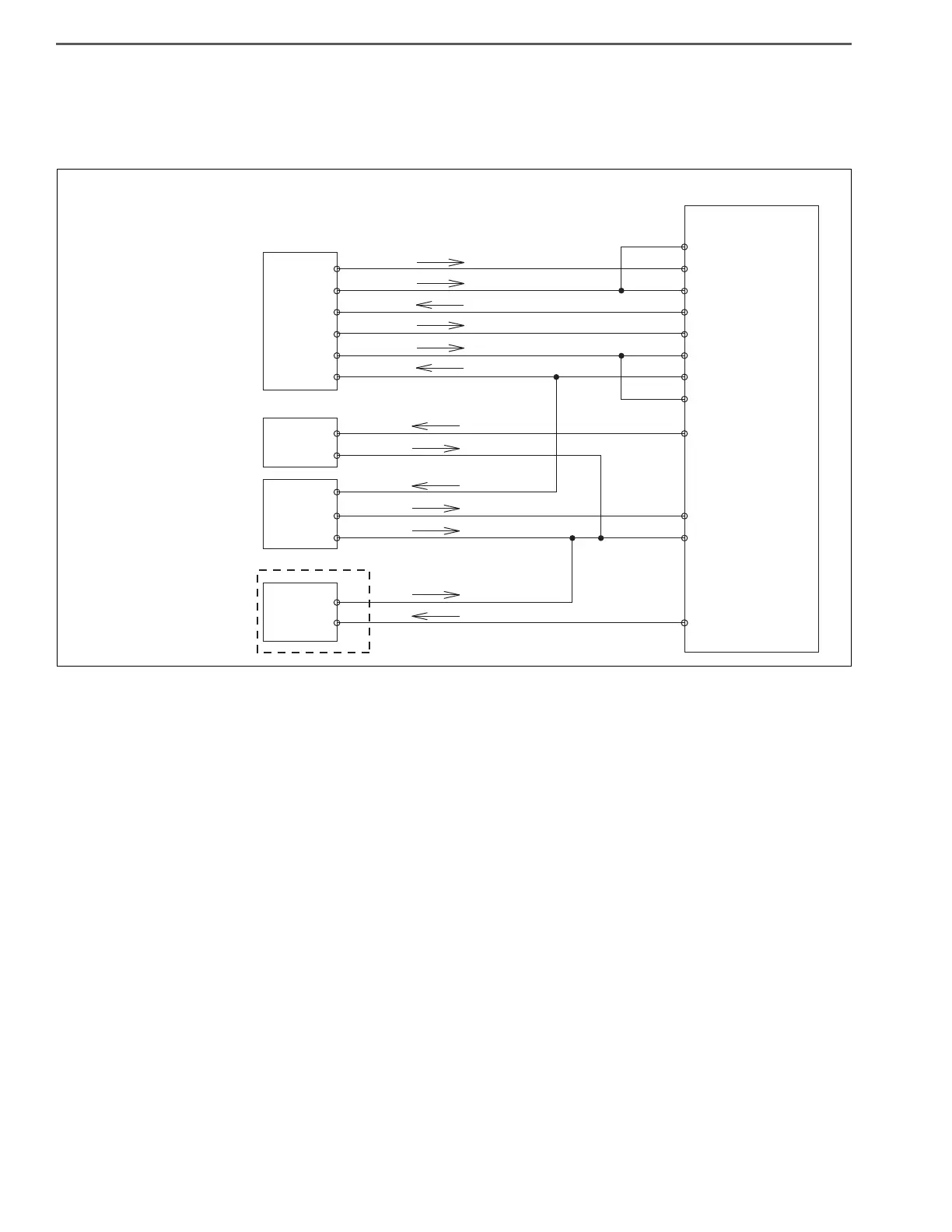

E7Q
(E2)
E7P
(THG)
(THAO)
XSW
Intercooler outlet
temperature sensor
$XW
(PC2S)
E1
X85
XZG
Z70
$XV
PCR1
VC1
E2
PCR2
VC2
Z72
XZH
(THG)
(VC2)
(PCR2)
(E2)
(VC)
(PCR1)
(E1)
(PC1S)
Z6R
EBJ
EBH
EBN
EBM
EBL
EBK
X7U
Z2N
J0L
(E2)
J0M
(VC)
(PIM)
(E)
X4A
ZJP
(E4)
X0G
(PIM)
(THG)
10mA
10mA
15mA
5mA
15mA
15mA
2mA
2mA
15mA
15mA
15mA
10mA
10mA
Common rail
pressure sensor
Exhaust gas
temperature sensor
Boost pressure sensor
Engine ECU
XG2
To Next Page
