Hino Motors HINO 195 series User Manual

ENGINE (J05E)/TROUBLESHOOTING2–702
DTC: P0686
EN01H02127030602016115
P0686: ECM/PCM Power Relay Control Circuit high
INFORMATION
1. Technical description
• The main relay (EDU relay) supplies power from the battery to the ECU.
<Description of malfunction>
• The main relay cannot be turned OFF.
2. DTC set condition
(1) DTC detection condition
• Battery voltage is in the range of 10 V to 16 V.
(2) Judgement criteria
• With the main relay in OFF position, 8 V or higher power supply voltage remains for 60 seconds.
3. Reset condition
• After restoration to normal condition.
4. Indication, warning or system control regulation when the DTC is set.
• MIL: OFF
• SVS light: ON

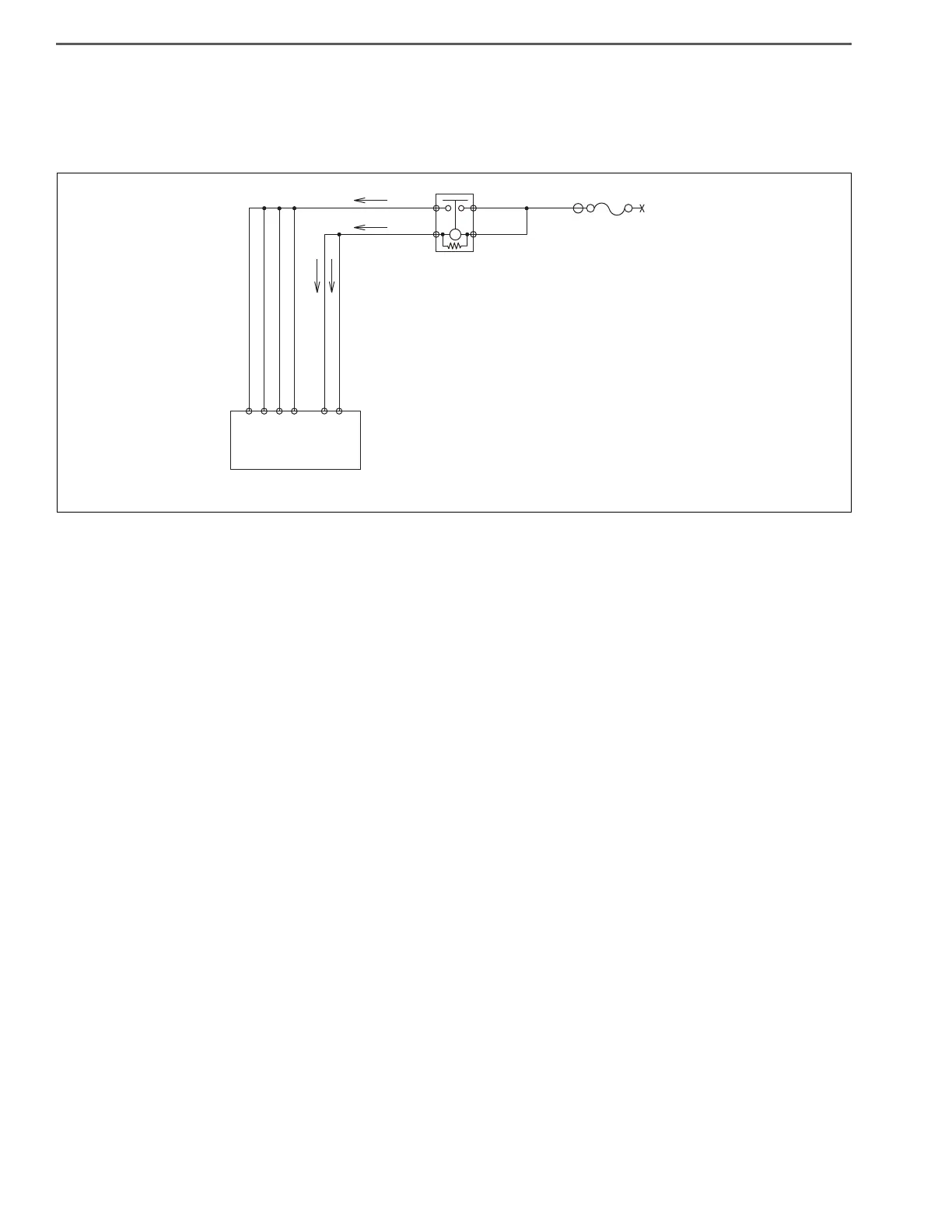

X0D XAU JFZ X21 $XT X64
3.2 (Inrush : 6.87A) 3.2 (Inrush : 6.87A) 3.2 (Inrush : 6.87A)
3.2 (Inrush : 6.87A)
(MREL)
(MRL2)
YRC
YRD
YRA
YRB
(INJ)
X04
(L )
(IREL)
(B)
(B2)
(+B)
(+B1) (+B2)
(+BM)
Engine ECU
EDU relay
SHTS021270300642
