ENGINE (J05E)/TROUBLESHOOTING2–56

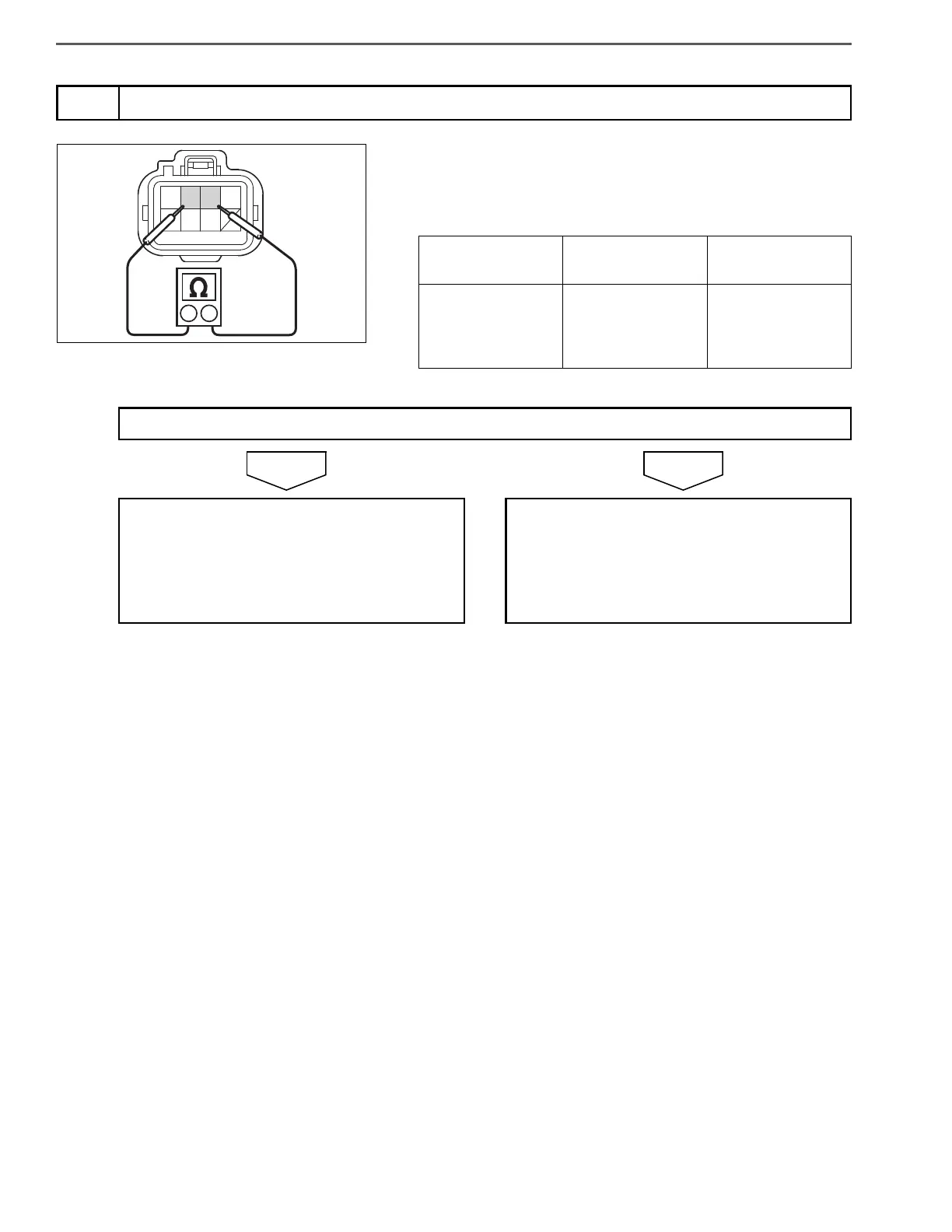

1. Disconnect the J/C_ENG_CAN2 connector.
2. Use electrical tester to measure the resistance between No.5
(CANH) terminal and No.8 (CANL) terminal at the J/
C_ENG_CAN2 connector.
4
Check harness in CAN bus line between J/C_ENG_CAN2 and J/C_ENG_CAN (Failure Site 8)
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
J/C_ENG_CAN2
connector
No.5 (CANH) –
No.8 (CANL)
110 – 130
Do the measurements meet the standard value?
Connect the J/C_ENG_CAN2 connector, and
go to step 5.
CAN bus line disconnection between J/
C_ENG_CAN2 and the J/C_ENG_CAN
Repair or replace the harness.
Perform After-inspection work. (Clear all past
DTC. Check no DTC is stored after test
drive.)
To Next Page
