ENGINE (J05E)/TROUBLESHOOTING 2–17
MOUNTING THE ENGINE ECU CONNECTOR
1. ATTACHING THE ENGINE ECU CONNECTOR
(1) Check that the harness side connector lever is fully open and
place it straight on the engine ECU side connector.
NOTICE
At this time, check that the lever is fully open.
HINT
Check that it is inserted along the wrong fitting prevention key-
way.
(2) Press the upper part of the harness side connector and
insert the connector uniformly.

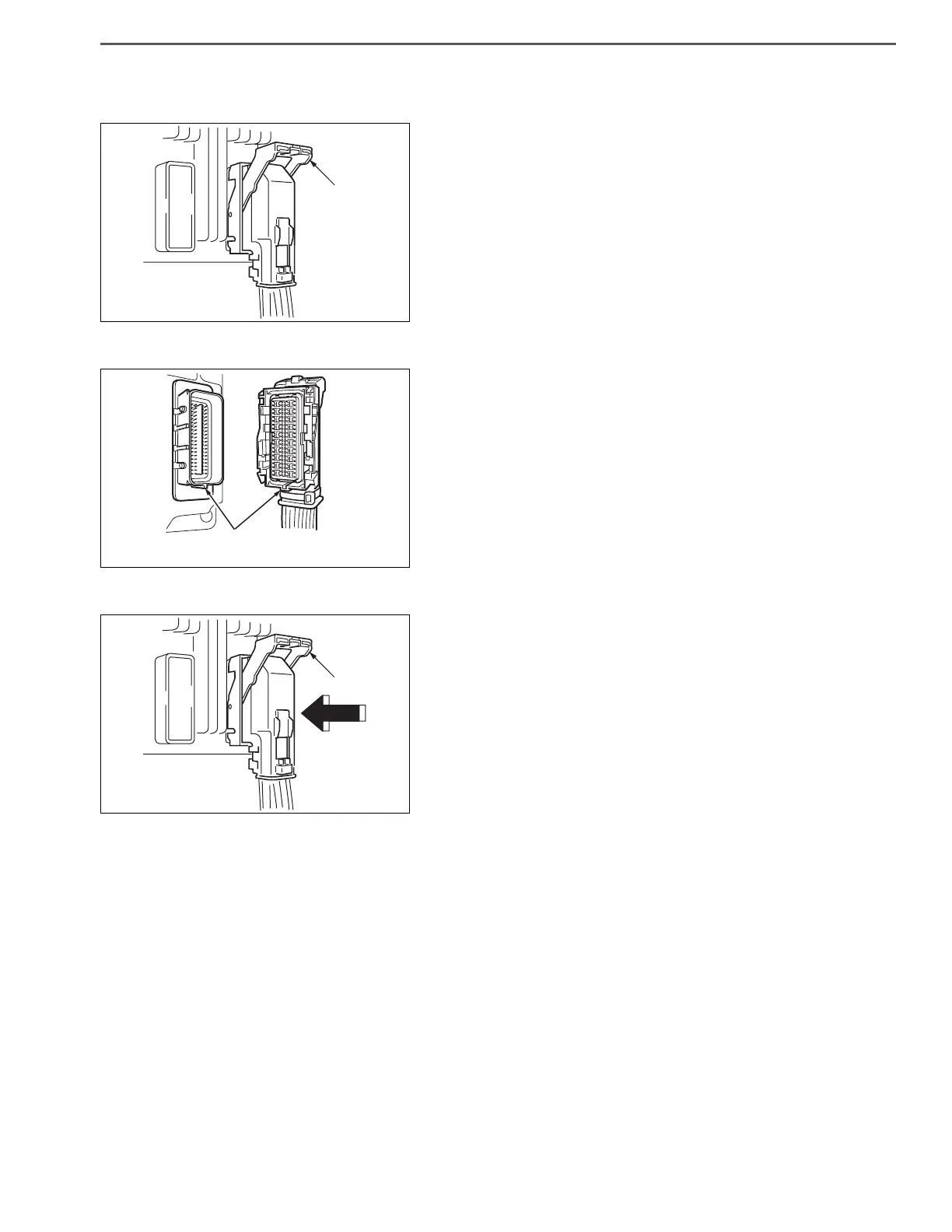

Lever
SHTS021270300016
Wrong fitting
prevention keyway
SHTS021270300017
Lever
SHTS021270300018
