ENGINE (J05E)/TROUBLESHOOTING 2–227
DTC: P0112 and P0113
EN01H02127030602016043
P0112: Intake air temperature sensor (air flow sensor built-in) - out of range
(Out of range low)
INFORMATION
1. Technical description
• The intake air temperature sensor built in the air flow sensor consistently measures intake air temperature.
<Description of malfunction>
• The intake air temperature cannot be correctly recognized.
2. DTC set condition
(1) DTC detection condition
• Starter key "ON".
• Battery voltage is in the range of 10 V to 16 V.
• The engine is stopped, or the engine speed remains at 500 r/min or more for 5 seconds or more.
(2) Judgement criteria
• Output of the intake air temperature sensor (built in air flow sensor) remains less than 0.09 V (90 C {194 F})
for 3 seconds or longer.
3. Reset condition
• After restoration to normal condition
4. Indication, warning or system control regulation when the DTC is set.
• MIL: ON
• SVS light: OFF
5. Symptoms on the vehicle when the DTC is set
<Symptoms on the vehicle due to backup control (fail safe function)>
• –
<Symptoms on the vehicle due to malfunction>
• –
6. Pre-inspection work
• Check that the battery voltage is in the normal range.

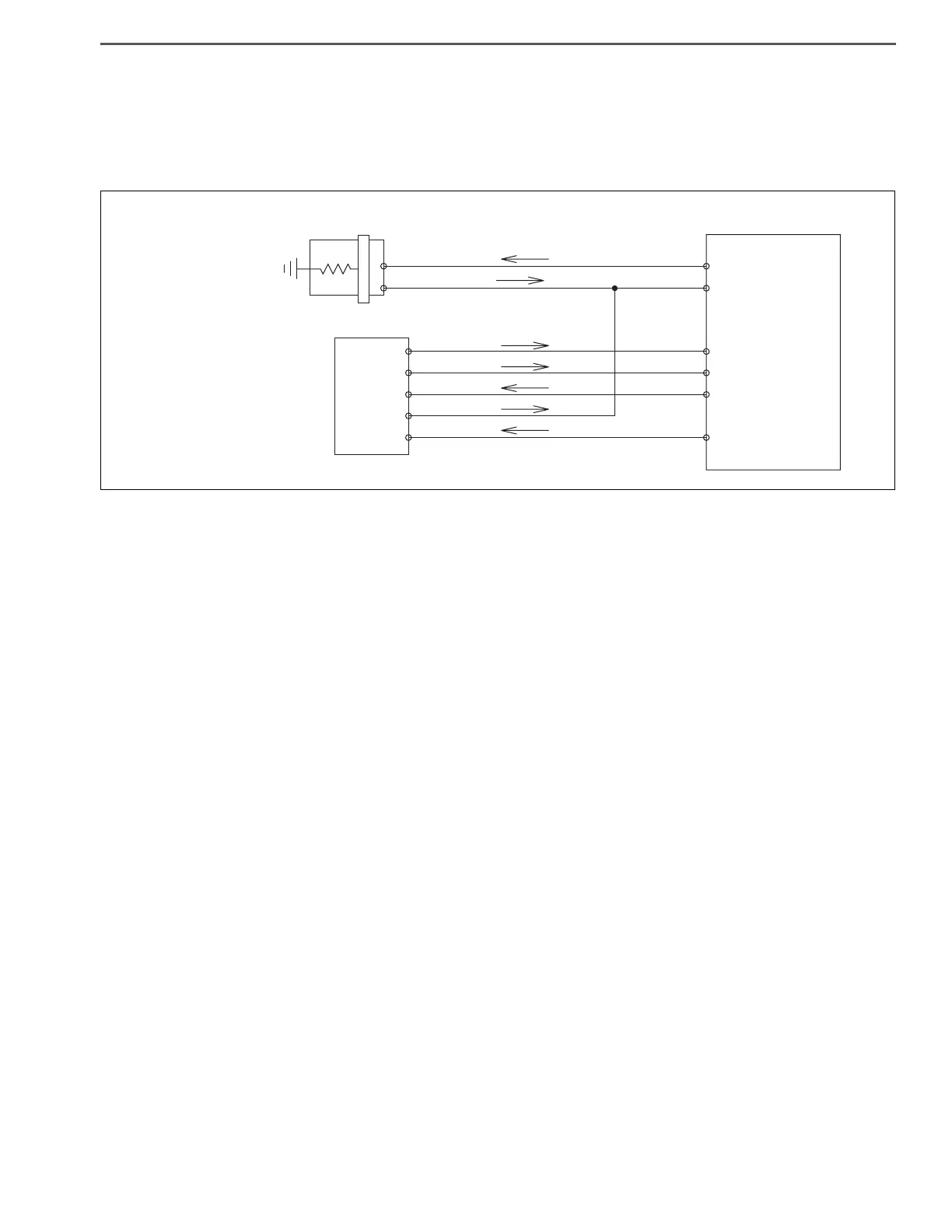

Intake air
temperature sensor
(air flow sensor built in)
(E)
(THW)
XCV
X71
XCT
Z65
(FC)
(E2G)
(+B)
(E2)
X72
(THA)
X4K
(VG)
Z5G
X66
ZJQ
(E5)
X28
(THW)
(EVG)
XMH
(VAF)
X2U
(THA)
X8210mA
10mA
10mA
10mA
200mA
200mA
Coolant temperature sensor
Body earth
10mA
Engine ECU
To Next Page
