ENGINE (J05E)/TROUBLESHOOTING2–634
1. Set the starter key to the "LOCK" position.
2. Disconnect the neutral start switch.

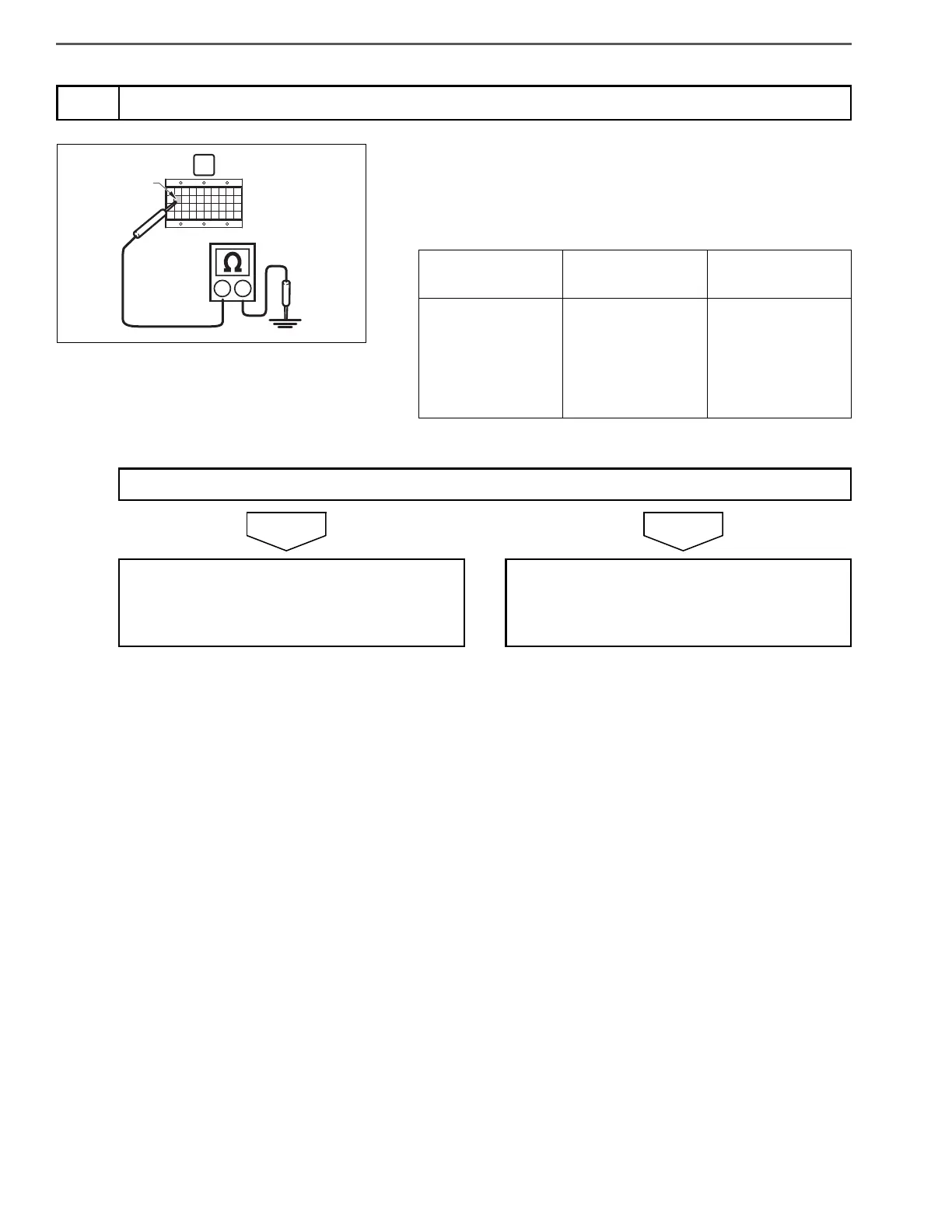

3. Use the electrical tester to measure the resistance between the
engine ECU (signal check harness) and ground.
3
Inspect for short-circuit of the wire harness of the starter key "Start" signal
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
Engine ECU (sig-
nal check har-
ness) – ATM
starter relay con-
nector
ST (V12) – Ground
Do the measurements meet the standard value?
Go to step 4. Repair or replace the harness.
(Engine ECU – Neutral start switch)
Perform "After-inspection work" of INFOR-
MATION section.
To Next Page
