ENGINE (J05E)/TROUBLESHOOTING 2–9
8. CONNECT THE SIGNAL CHECK HARNESS.
(1) Set the starter key to the "LOCK" position and disconnect the
connectors from the engine ECU.

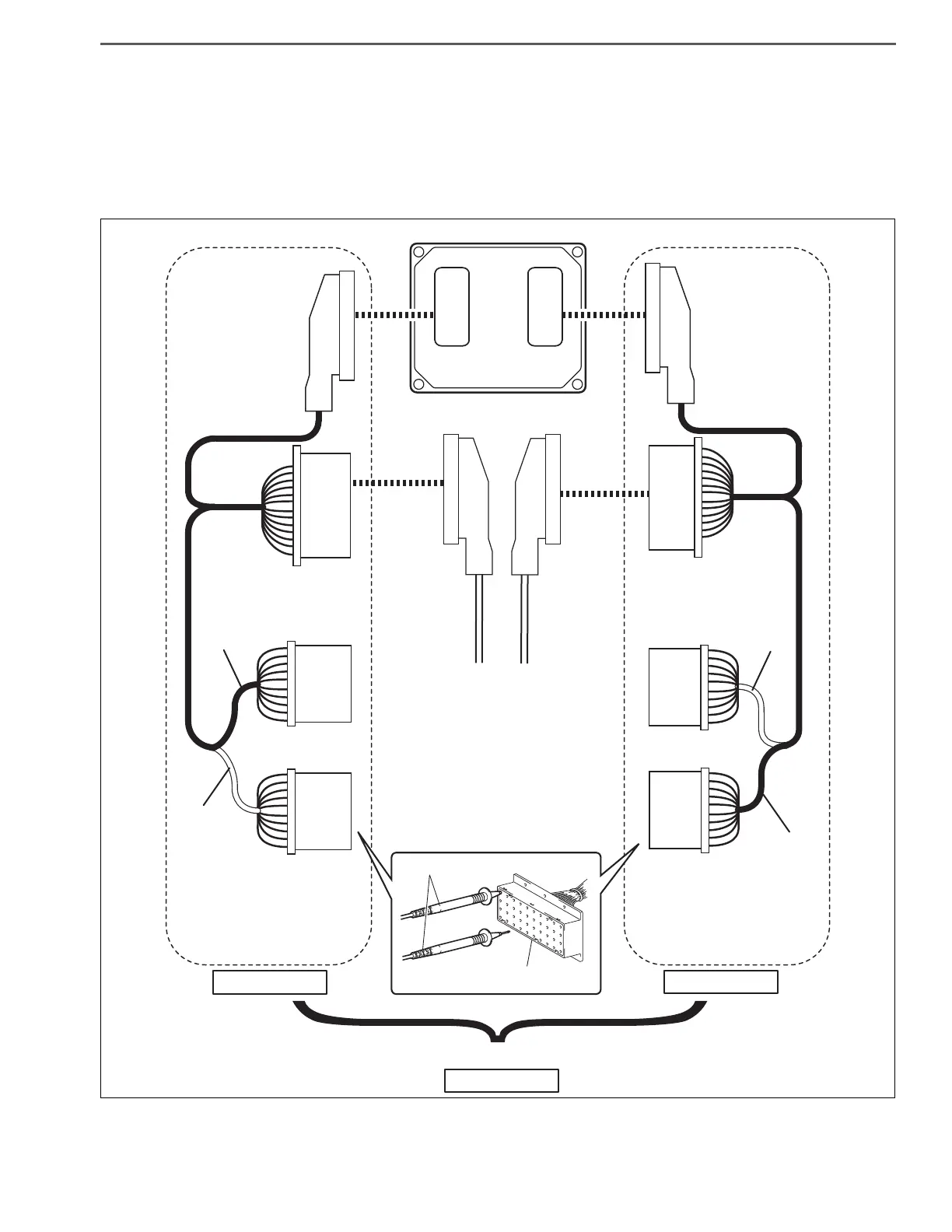

(2) Connect a signal check harness to the engine sub harness
and the engine ECU.
SST: 09843-E4050
Signal check harness
Test lead
Contact box
Connector
(engine ECU side)
09843-E4020
09843-E4050
Signal check harness assembly
09843-E4060
Engine sub harness
A
B
C
D
Computer (engine ECU)
Signal check
harness
(engine side)
Signal check
harness
(vehicle side)
Engine
side
Vehicle
side
Black
Blue
Red
White
Terminal
V01-V40
Terminal
V41-V80
Terminal
E01-E40
Terminal
E41-E80
Connector
(engine ECU side)
Connector
(engine sub
harness side)
Connector
(engine sub
harness side)
SHTS021270300005
