ENGINE (J05E)/TROUBLESHOOTING2–742
DTC: P119F
EN01H02127030602016124
P119F: Fuel rail pressure sensor - rationality
INFORMATION
1. Technical description
• The common rail pressure sensor consistently measures common rail pressure.
<Description of malfunction>
• Common rail pressure cannot be correctly sensed.
• Malfunction is likely to have occurred in the common rail pressure sensor.
2. DTC set condition
(1) DTC detection condition
• Starter key "ON".
• Battery voltage is in the range of 10 V to 16 V.
• The engine stopped, or the engine speed remains at 500 r/min or more for 5 seconds or more.
• Common rail pressure is 220 MPa or less.
(2) Judgement criteria
P119F is detected under the conditions described below. 1 and 2 represent the order of priority.
• The difference obtained by subtracting the common rail pressure sensor power (main) from the common rail
pressure sensor power (sub) continues to be more than 1.06 V for 3 seconds or more, or the difference
obtained by subtracting the common rail pressure sensor power (main) from the common rail pressure sensor
power (sub) continues to be less than 0.04 V for 3 seconds or more.
3. Reset condition
• After normal operation is restored.
4. Indication, warning or system control regulation when the DTC is set.
• MIL: ON
• SVS light: OFF
• Cruise control is not available.
• Idling stop system is not available.
5. Symptoms on the vehicle when the DTC is set
<Symptoms on the vehicle due to backup control (fail safe function)>
• Cruise control does not work.
• Idling stop system does not work.
<Symptoms on the vehicle due to malfunction>
• –

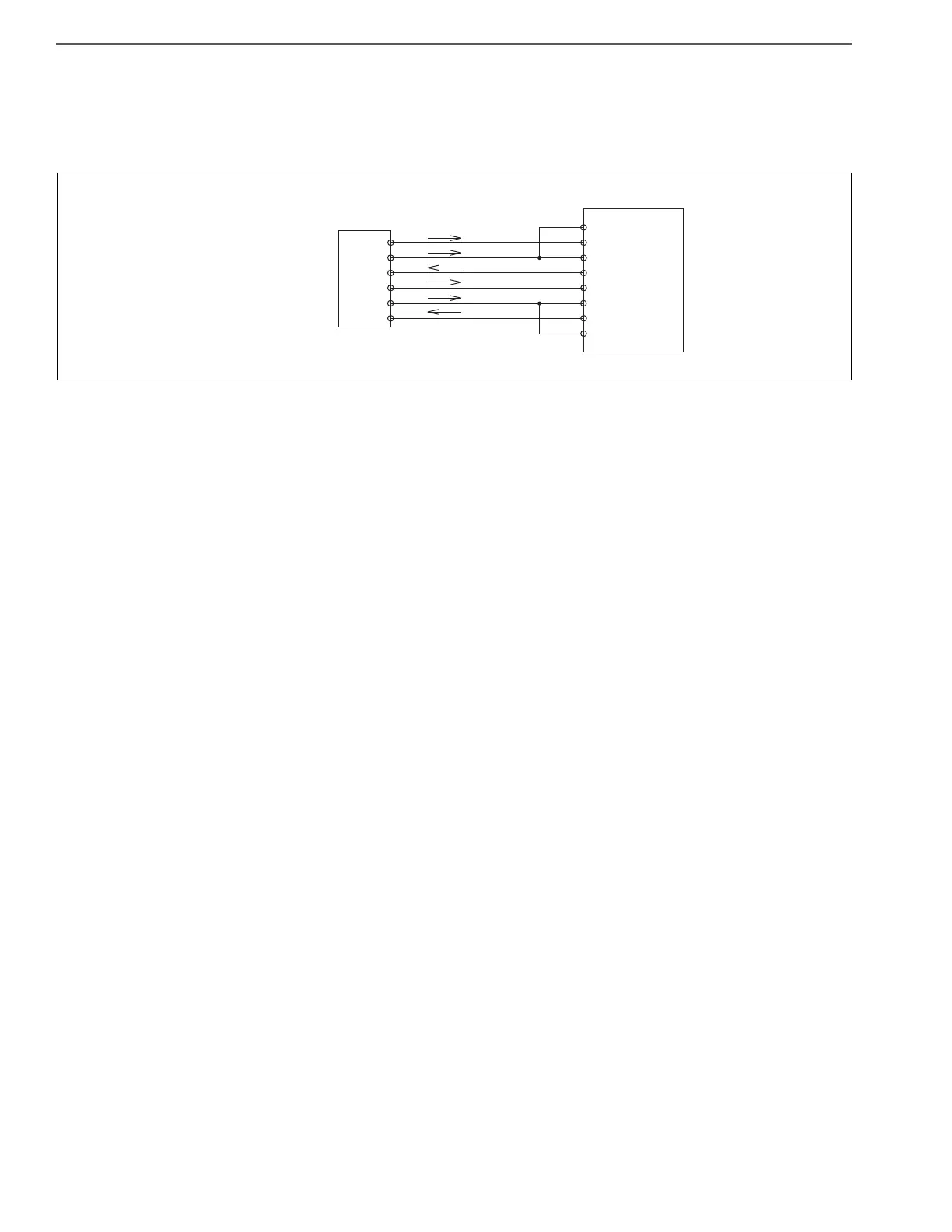

$XW
(PC2S)
(E1)
X85
XZG
Z70
$XV
(PCR1)
(VC1)
(E2)
(PCR2)
(VC2)
Z72
XZH
(VC2)
(PCR2)
(E2)
(VC)
(PCR1)
(E1)
(PC1S)
XG2
EBJ
EBH
EBN
EBM
EBL
EBK
15mA
15mA
2mA
2mA
15mA
15mA
Common rail
pressure sensor
Engine ECU
To Next Page
