ENGINE (J05E)/TROUBLESHOOTING2–54

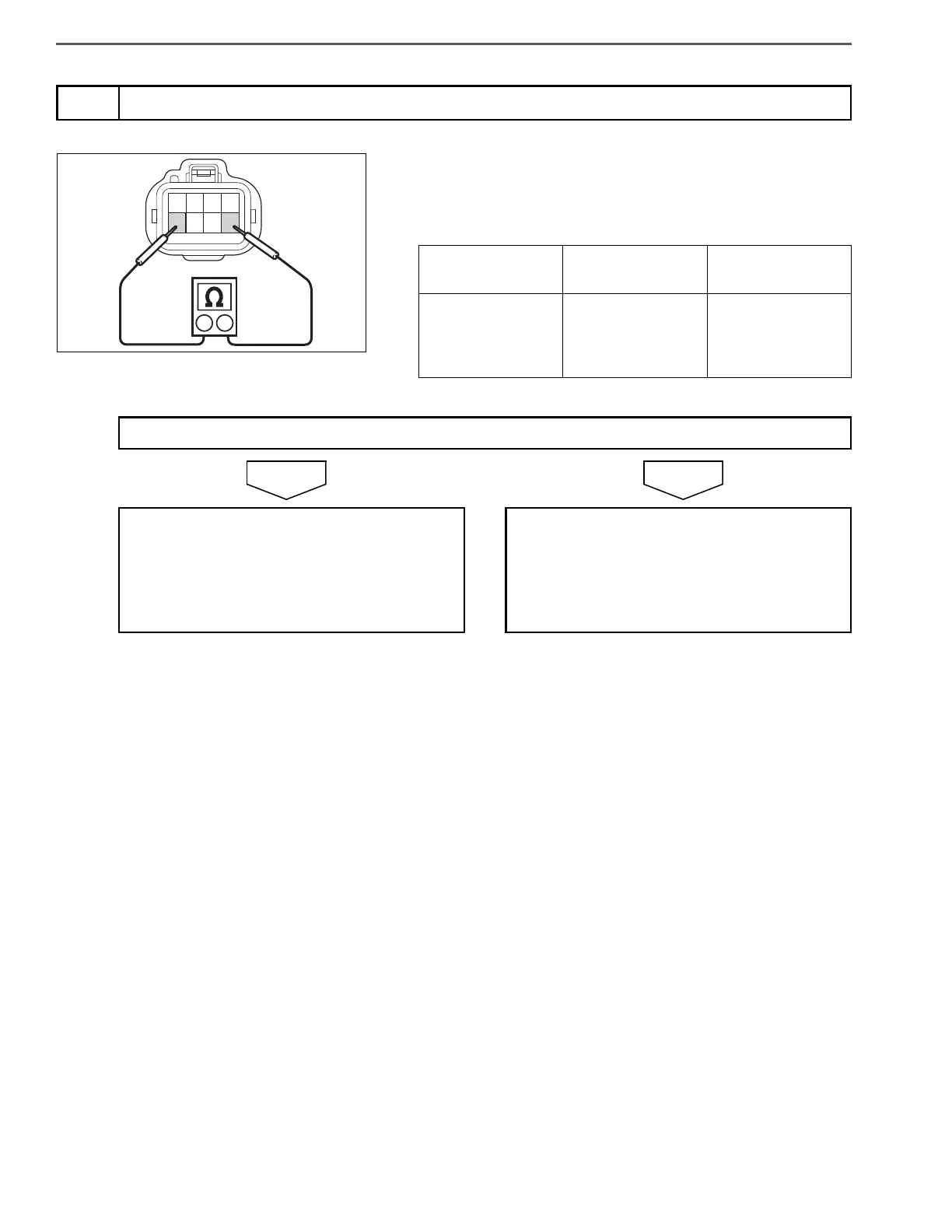

1. Disconnect the J/C_CAN_Diesel connector.
2. Use electrical tester to measure the resistance between No.5
(CANH) terminal and No.8 (CANL) terminal at the J/
C_CAN_Diesel connector.
2
Check harness in CAN bus line between J/C_CAN_Diesel and J/C DEF SSR (Failure Site 10)
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
J/C_CAN_Diesel
connector
No.5 (CANH) –
No.8 (CANL)
110 – 130
Do the measurements meet the standard value?
Connect the J/C_CAN_Diesel connector, and
go to step 3.
CAN bus line disconnection between J/
C_CAN_Diesel and the J/C DEF SSR
Repair or replace the harness.
Perform After-inspection work. (Clear all past
DTC. Check no DTC is stored after test
drive.)
