ENGINE (J05E)/TROUBLESHOOTING 2–329
1. Connect the connector of the common rail pressure sensor.
2. Connect the signal check harness to the engine ECU vehicle side
harness. (Do not connect the harness to the ECU.)

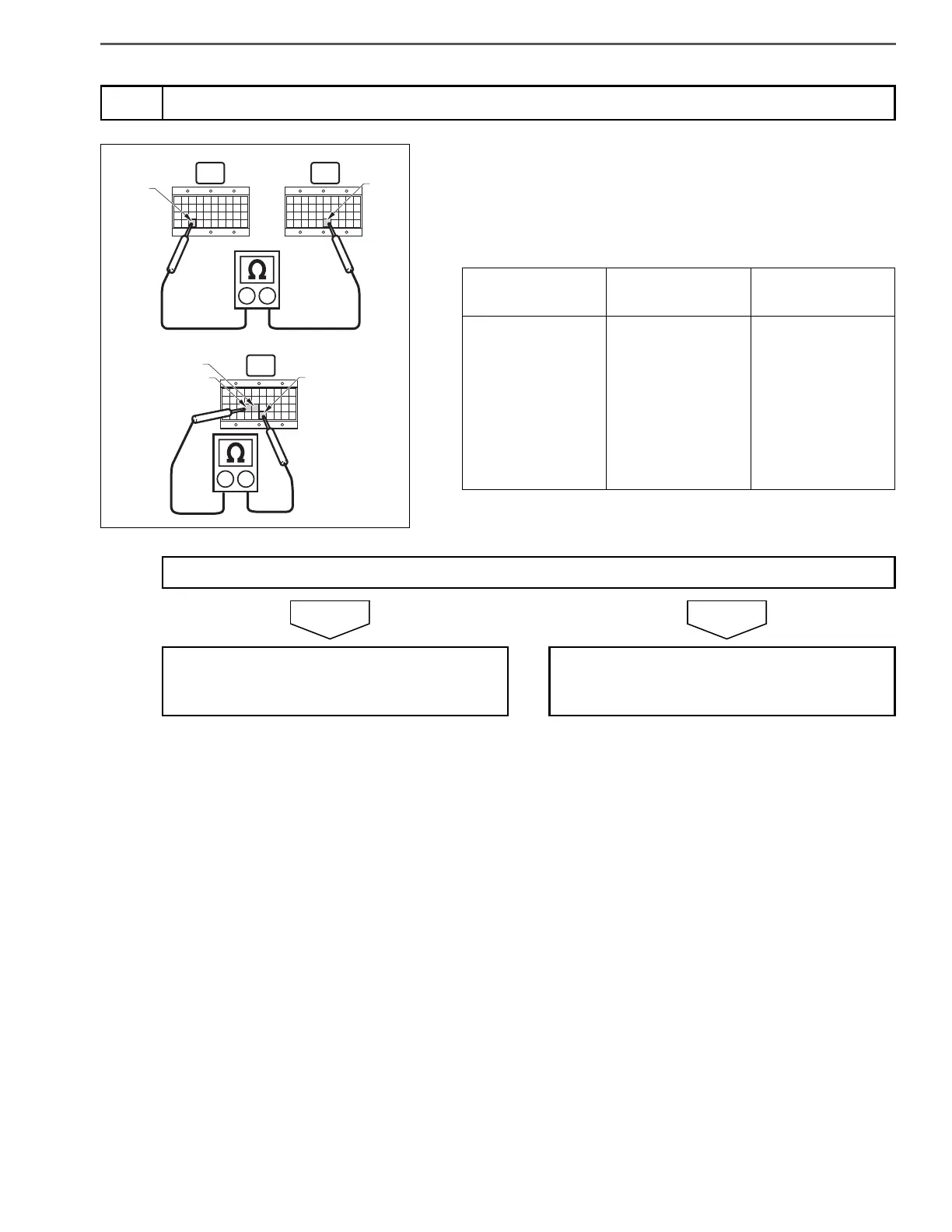

3. Use the electrical tester to measure the resistance between the
terminals of the engine ECU (signal check harness).
7
Inspect disconnection of the common rail pressure sensor harness
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
Engine ECU (sig-
nal check har-
ness)
VC2 (E33) –
E2 (E76)
PCR2 (E64) –
E2 (E76)
PC2S (E65) –
E2 (E76)
2 or more
Do the measurements meet the standard value?
Go to step 8. Repair or replace the harness.
Perform "After-inspection work" of INFOR-
MATION section.
