Switching
114
4.5
VLAN
RM Web
Release
6.0
07/2010

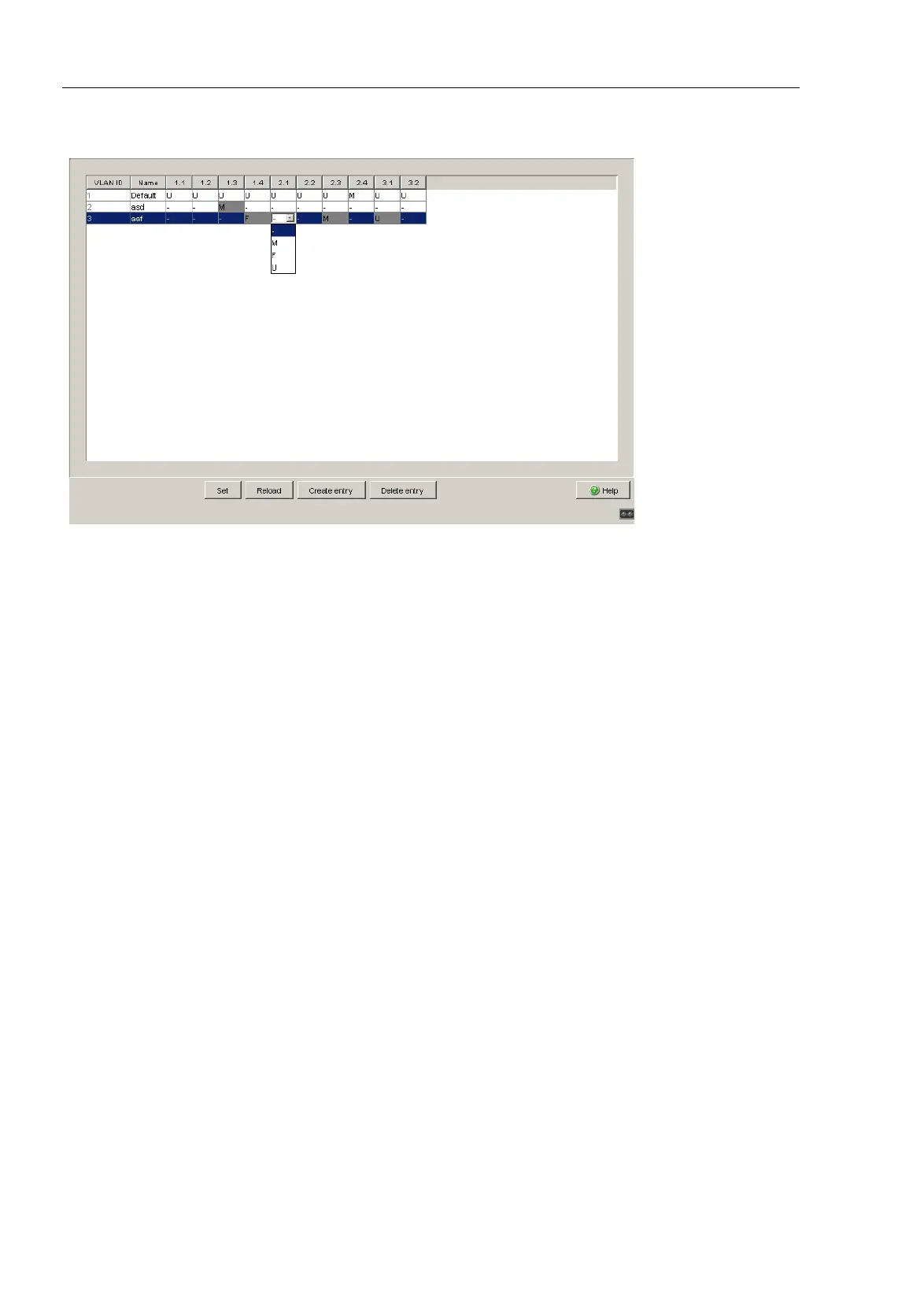

Figure 31: VLAN Static Dialog
Note: When configuring the VLAN, the management station must maintain
access to the device after the VLAN configuration is saved.
You achieve this by connecting the management station to a port with the
VLAN ID 1. The device transmits the data of the management station in
VLAN 1.
Note: The device automatically creates VLANs for MRP rings. The MRP ring
function prevents the deletion of these VLANs.
Note: Note the tagging settings for ports (see table 44) that are part of a
redundant Ring or the Ring/network coupling.
