Switching
RM Web L3E
Release
6.0
07/2010
4.5
VLAN
111

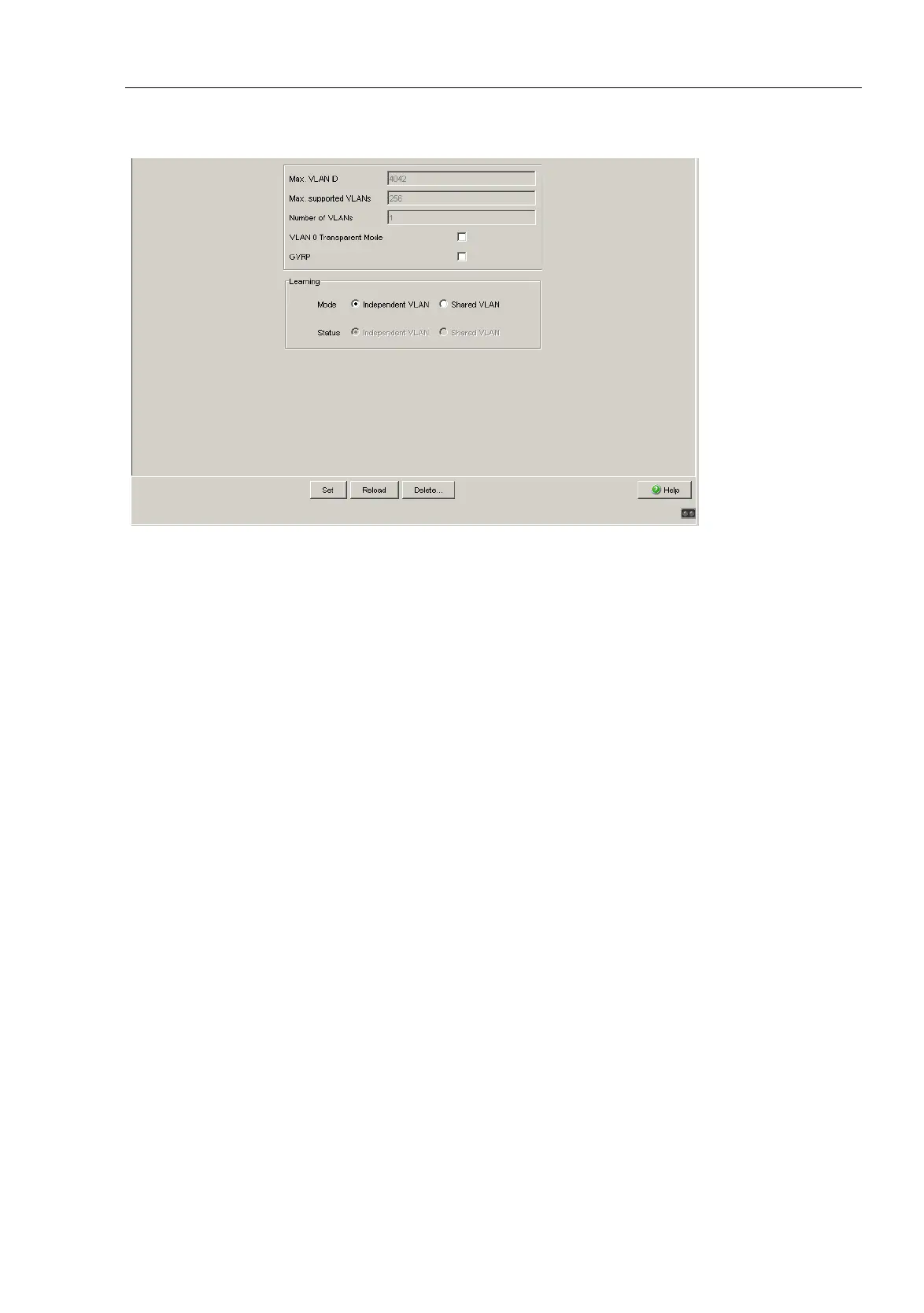

Figure 29: VLAN Global dialog
4.5.2 Current VLAN
With this dialog you can:
X display VLAN parameters
The Current VLAN table shows all
– manually configured VLANs
– VLANs configured via redundancy mechanisms
– VLANs configured via GVRP
The Current VLAN table is only used for information purposes. You can make
changes to the entries in the VLAN:Static dialog.
Note: Ports not displayed are participants in the link aggregation. You can
assign these ports to a VLAN using the port assigned to the link aggregation
in module 8 (display 8.X).
