Switching
112
4.5
VLAN
RM Web
Release
6.0
07/2010

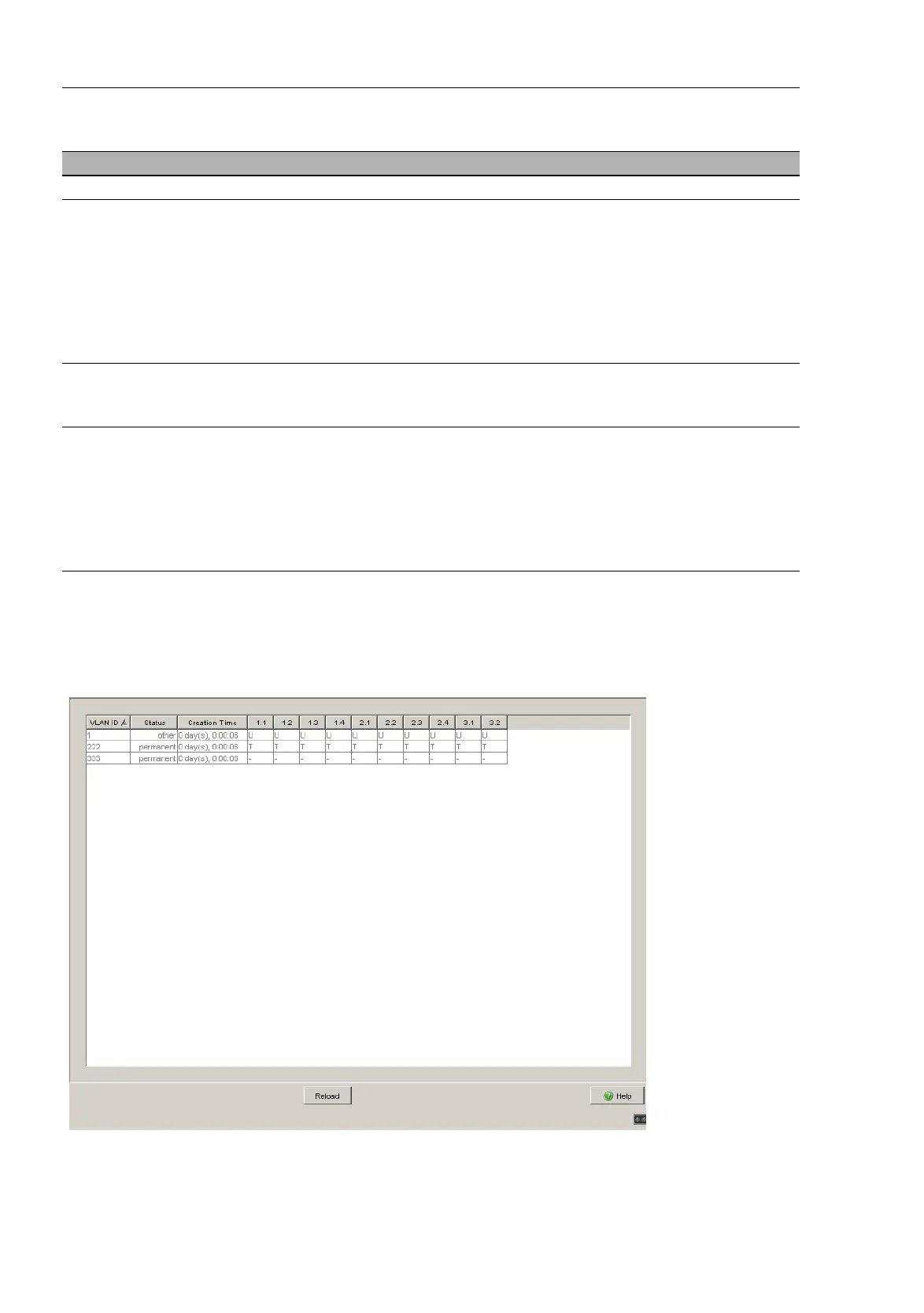

Figure 30: Current VLAN dialog
Parameter Meaning Value range
VLAN ID Displays the ID of the VLAN.
Status Displays the VLAN status. other: This entry solely appears for
VLAN 1. The system provides VLAN 1.
VLAN 1 is always present.
permanent: A static entry made by you.
This entry is kept when the device is
restarted.
dynamic: This VLAN was created
dynamically via GVRP.
Time created Operating time (see “System
Data“) at which the VLAN was
created.
Ports x.x VLAN membership of the
relevant port and handling of
the VLAN tag.
- Currently not a member
T Member of VLAN; send data packets with
tag.
U Member of the VLAN; send data packets
without tag (untagged).
F Membership forbidden, so no entry
possible via GVRP either.
Table 42: Current VLAN
