Diagnostics
RM Web L3E
Release
6.0
07/2010
9.3
Ports
245
9.3.3 SFP modules
The SFP status display allows you to look at the current SFP module
connections and their properties. The properties include:

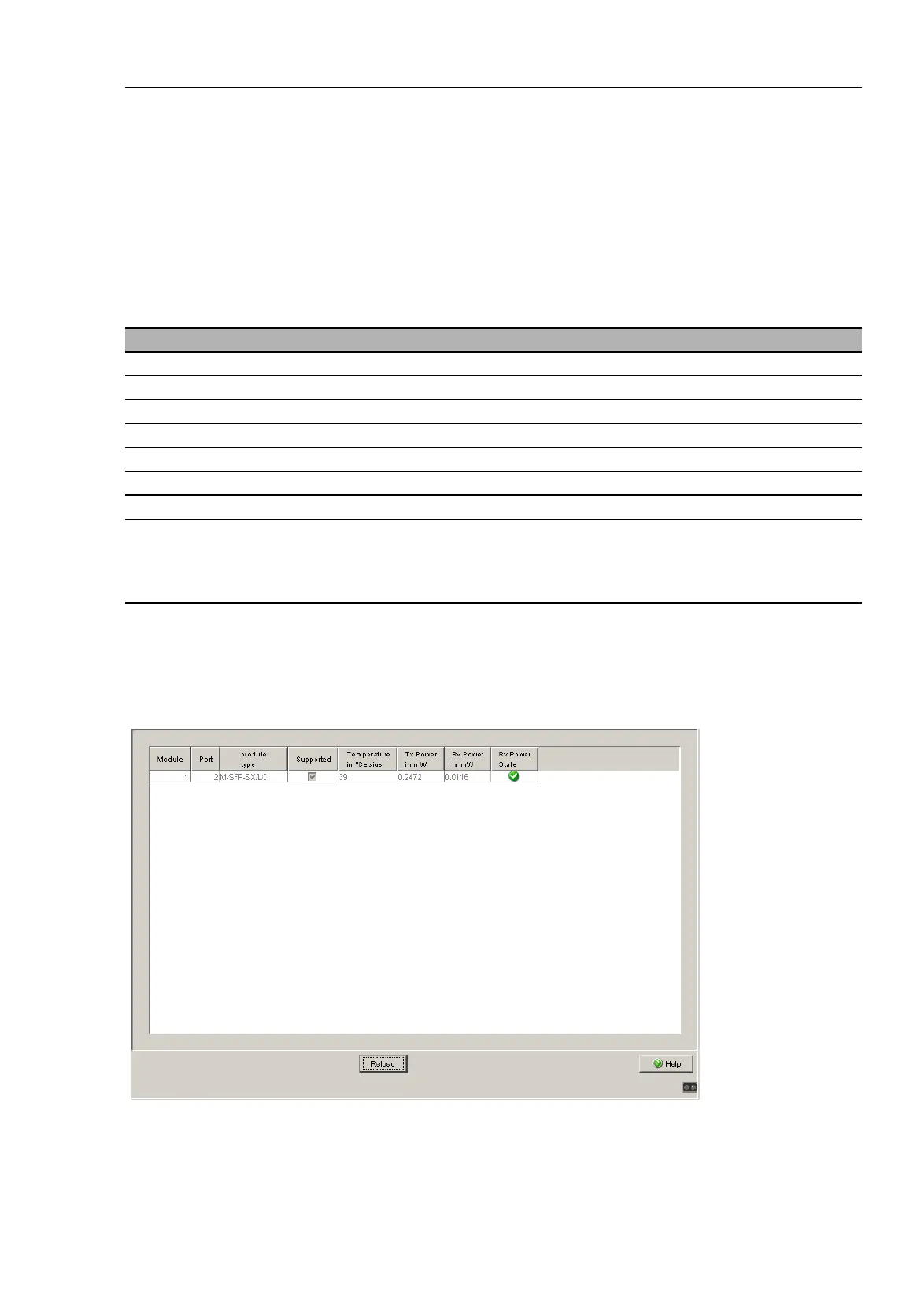

Figure 60: SFP Modules dialog
Parameter Meaning
Module Module of the device on which the port is located.
Port Port to which this entry applies.
Module type Type of SFP module, e.g. M-SFP-SX/LC
Supported Shows whether the media module supports the SFP module.
Temperature in Celsius Shows the operating temperature of the SFP
Tx Power in mW Shows the transmission power in mW
Rx Power in mW Shows the receiver power in mW
Receiver power status Shows the power level of the received signal.
– good receiver power
– limited receiver power
– insufficient receiver power
Table 107: SFP Modules dialog
