Redundancy
RM Web L3E
Release
6.0
07/2010
7.2
Ring Redundancy
165

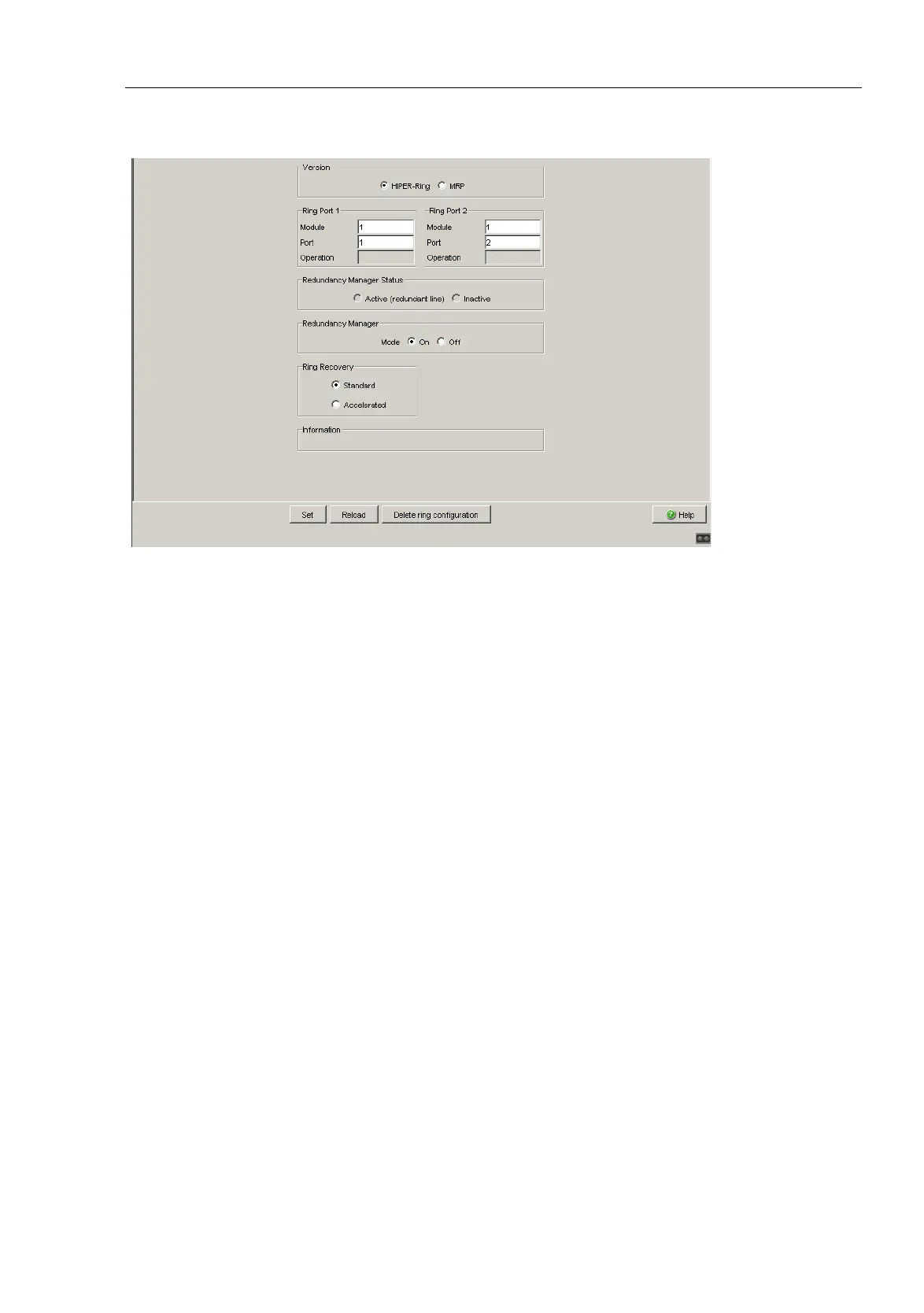

Figure 39: Selecting ring redundancy, entering ring ports, enabling/disabling ring
manager and selecting ring recovery.
Note: Deactivate the Spanning Tree protocol (STP) for the ports connected
to the redundant ring, because the Spanning Tree and the Ring Redundancy
work with different reaction times (
Redundancy:Spanning Tree:Port
).
If you used the DIP switch to activate the HIPER-Ring function, STP is
automatically switched off.
Note: If you have configured VLANs, note the VLAN configuration of the ring
ports.
In the configuration of the HIPER-Ring, you select for the ring ports
VLAN ID 1 and
VLAN membership Untagged in the static VLAN table
Note: If you want to use link aggregation connections in the HIPER-Ring
(PowerMICE and MACH 4000), you enter the index of the desired link
aggregation entry for the module and the port.
