Security
58
2.6
IEEE 802.1X Port Authentication
RM Web
Release
6.0
07/2010
With "RADIUS Request Retransmissions” you specify, how often the
device retransmits an unanswered request to the RADIUS server before
the device transmits the request to another RADIUS server.
With “RADIUS time-out” you specify how long (in seconds) the device
waits for a response after a request to the RADIUS server before the
device retransmits the request.

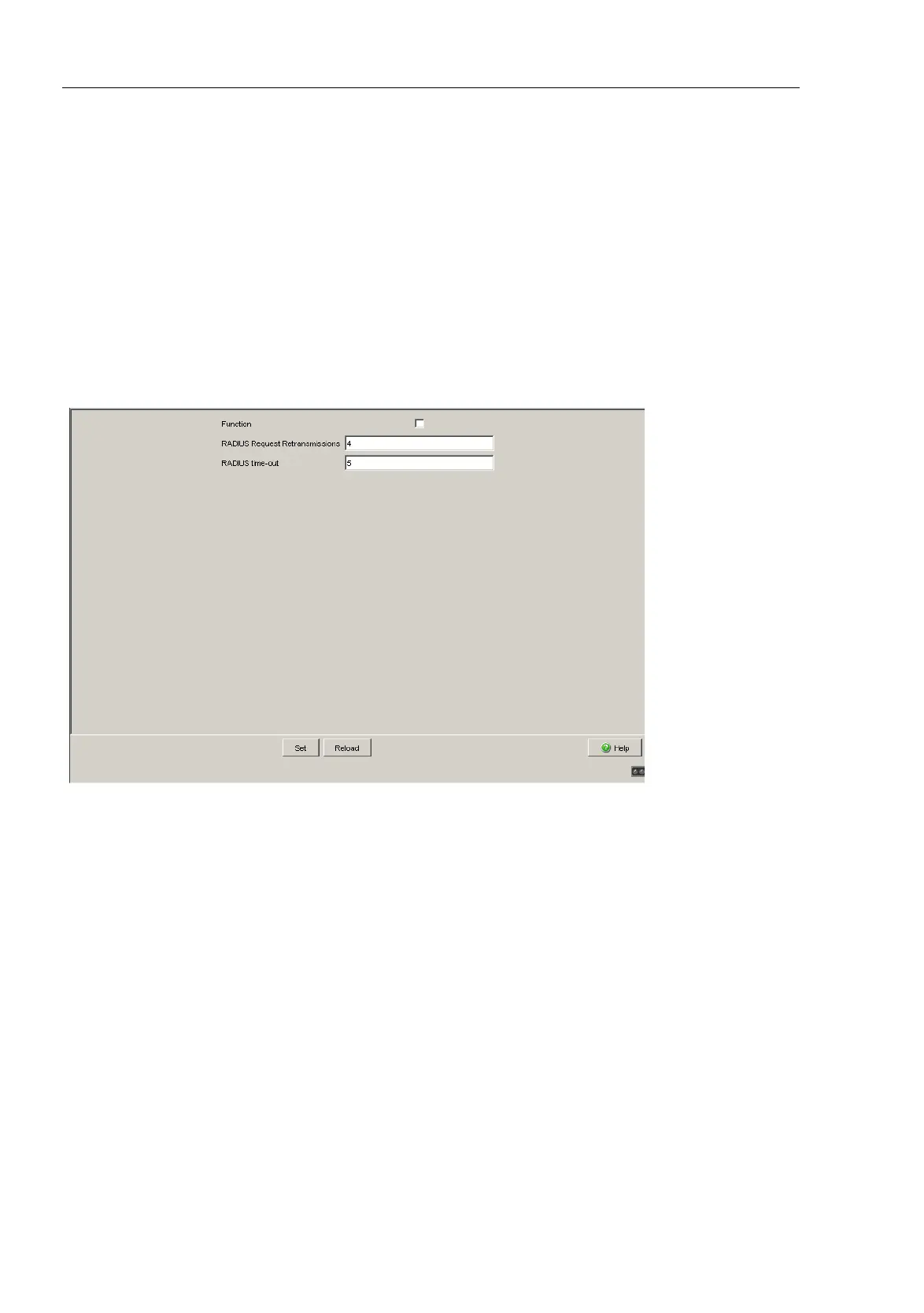

Figure 18: Global dialog
Preparing the device for the 802.1X port authentication
Configure your own IP parameters (for the device).
Globally enable the 802.1X port authentication function.
Set the 802.1X port control to "auto". The default setting is "force-
authorized".
Enter the "shared secret" between the authenticator and the RADIUS
server. The shared secret is a text string specified by the RADIUS server
administrator.
Enter the IP address and the port of the RADIUS server. The default UDP
port of the RADIUS server is port 1812.
