3Dimensions System User Guide
Chapter 2: General Information
MAN-05085-002 Revision 002 Page 11
DRAFT Preview Copy-Generated May 30, 2018
2: General Information
2.1 System Overview

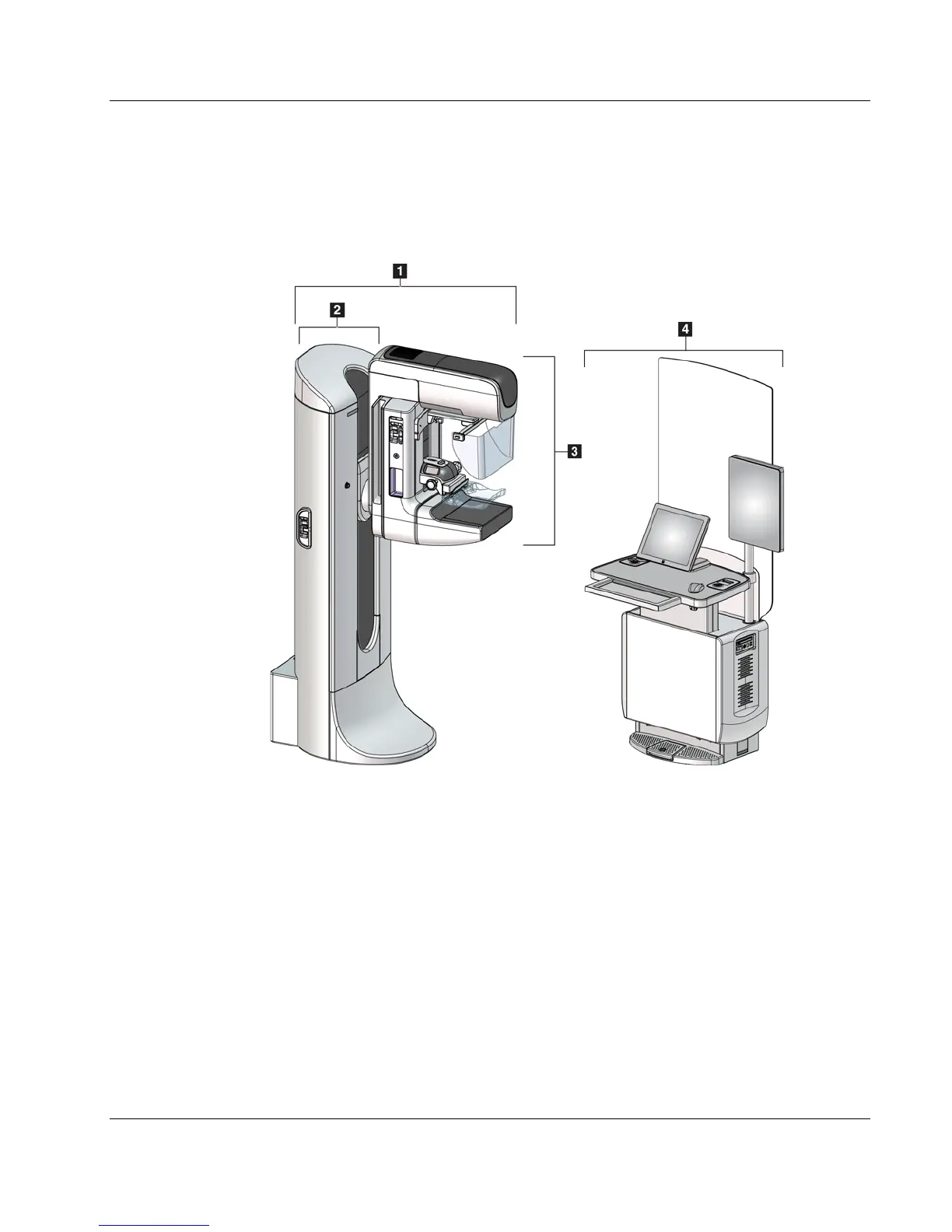

Figure 1: 3Dimensions™ System
Figure Legend
1. Tubestand (Gantry and C-arm)
2. Gantry
3. C-arm (Tube Arm and Compression Arm)
4. Universal Acquisition Workstation
