3.2.5 Dual Function Footswitch
Warning:
Place each footswitch in a position where, when used, they remain in reach of
the Emergency Off Switches.
Warning:
Position the footswitches to prevent accidental operation by a patient or
wheelchair.
To use the footswitch:
1. Press the footswitch to actuate.
2. Release the switch to stop the
movement.
Figure Legend
1. C-arm Down
2. C-arm Up
3. Compression Down
4. Compression Up

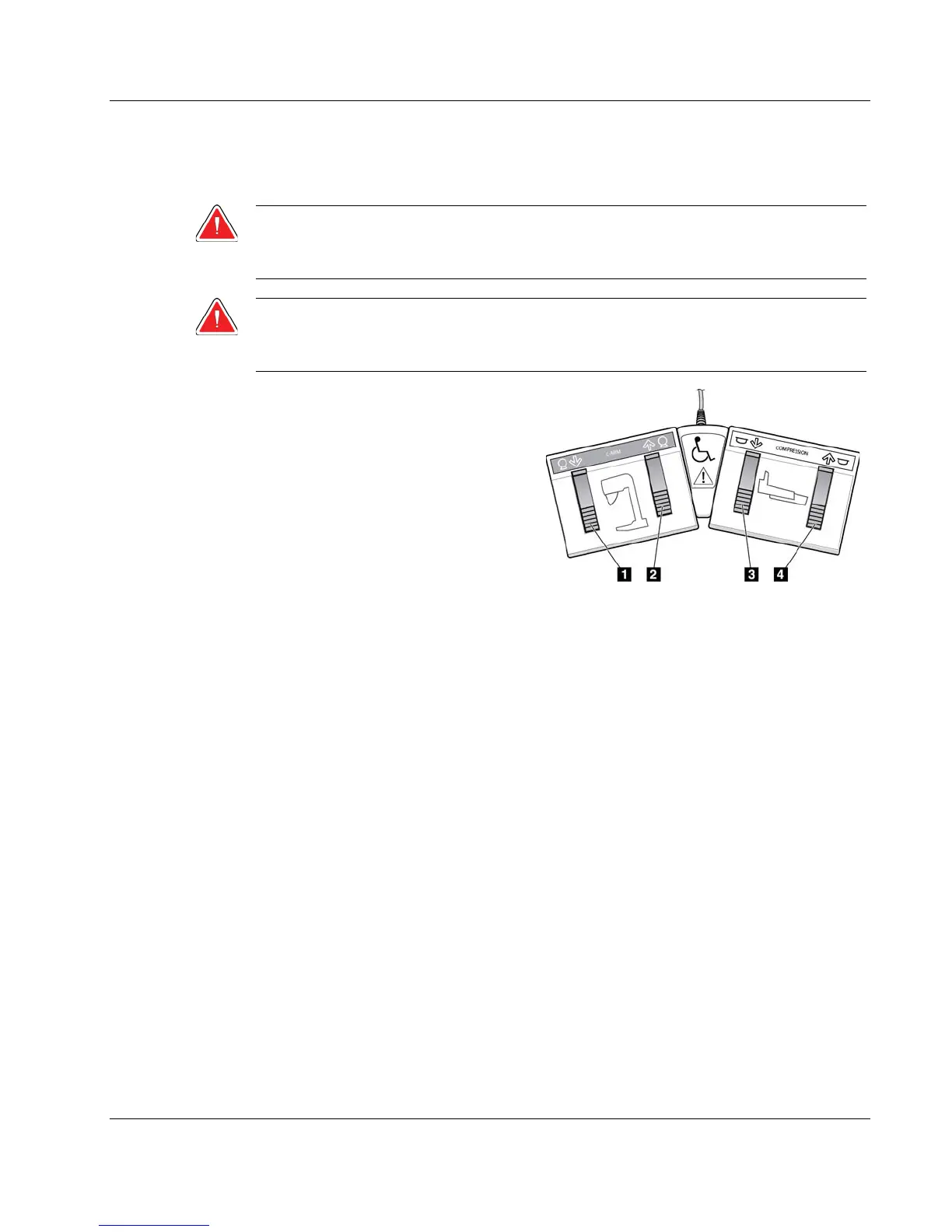

Figure 12: Dual Function Footswitch
