3Dimensions System User Guide
Chapter 3: System Controls and Indicators
MAN-05085-002 Revision 002 Page 23
DRAFT Preview Copy-Generated May 30, 2018
3: System Controls and Indicators
3.1 System Power Controls

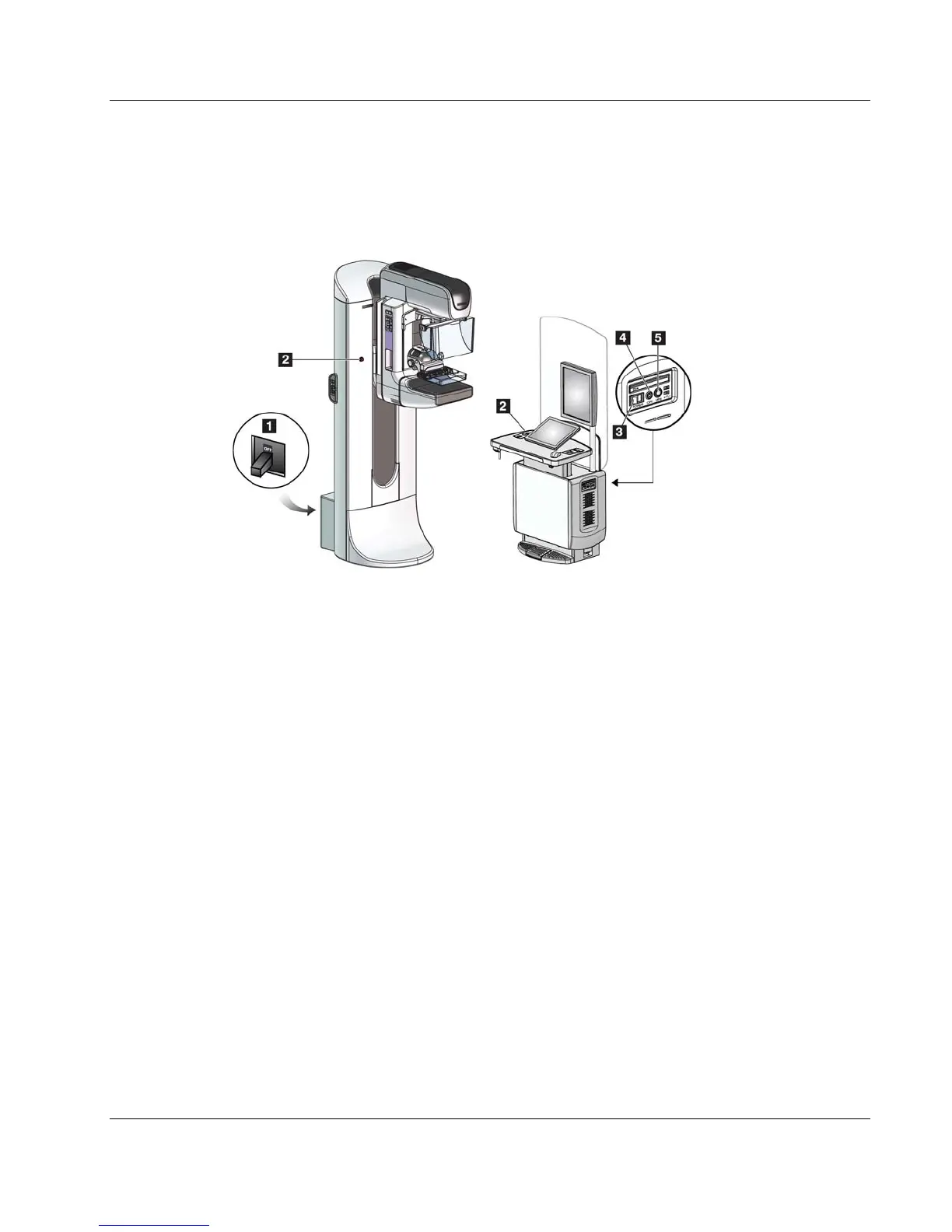

Figure 5: System Power Controls
Figure Legend
1. Gantry Power Circuit Breaker
2. Emergency Off Switch (two on the Gantry, one on the
Acquisition Workstation)
3. Acquisition Workstation Power Switch
4. Computer Power On/Reset Button
5. Uninterruptible Power Supply (UPS) Power Button
