3.2 Tubestand Controls and Indicators

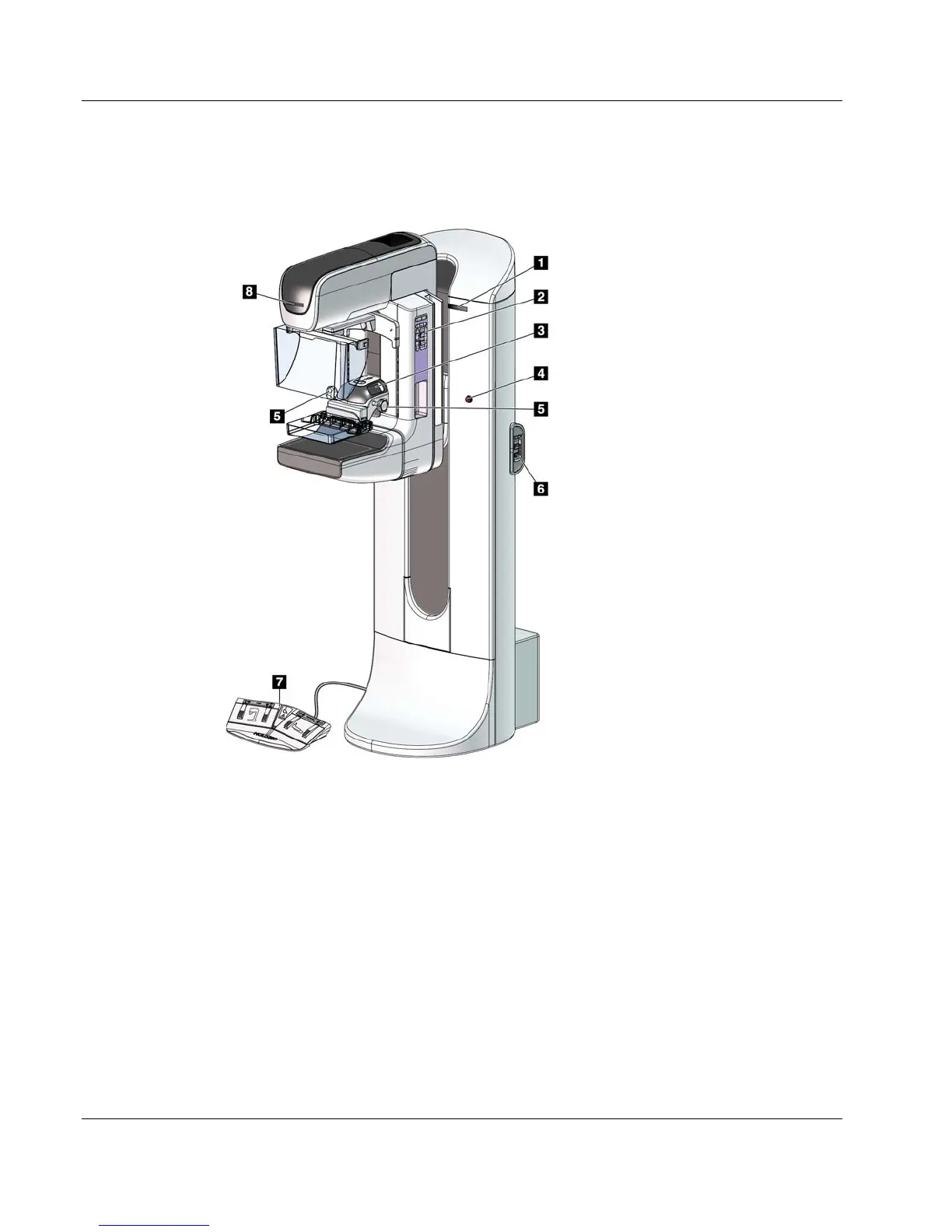

Figure 6: Tubestand Controls and Indicators
Figure Legend
1. Rotation Angle Displays (each side)
2. C-arm Control Panels (each side)
3. Compression Device
4. Emergency Off Switches (each side)
5. Compression Handwheels
6. Gantry Control Panels (each side)
7. Footswitch
8. Tubehead Display
