2.1.1 C-Arm Overview

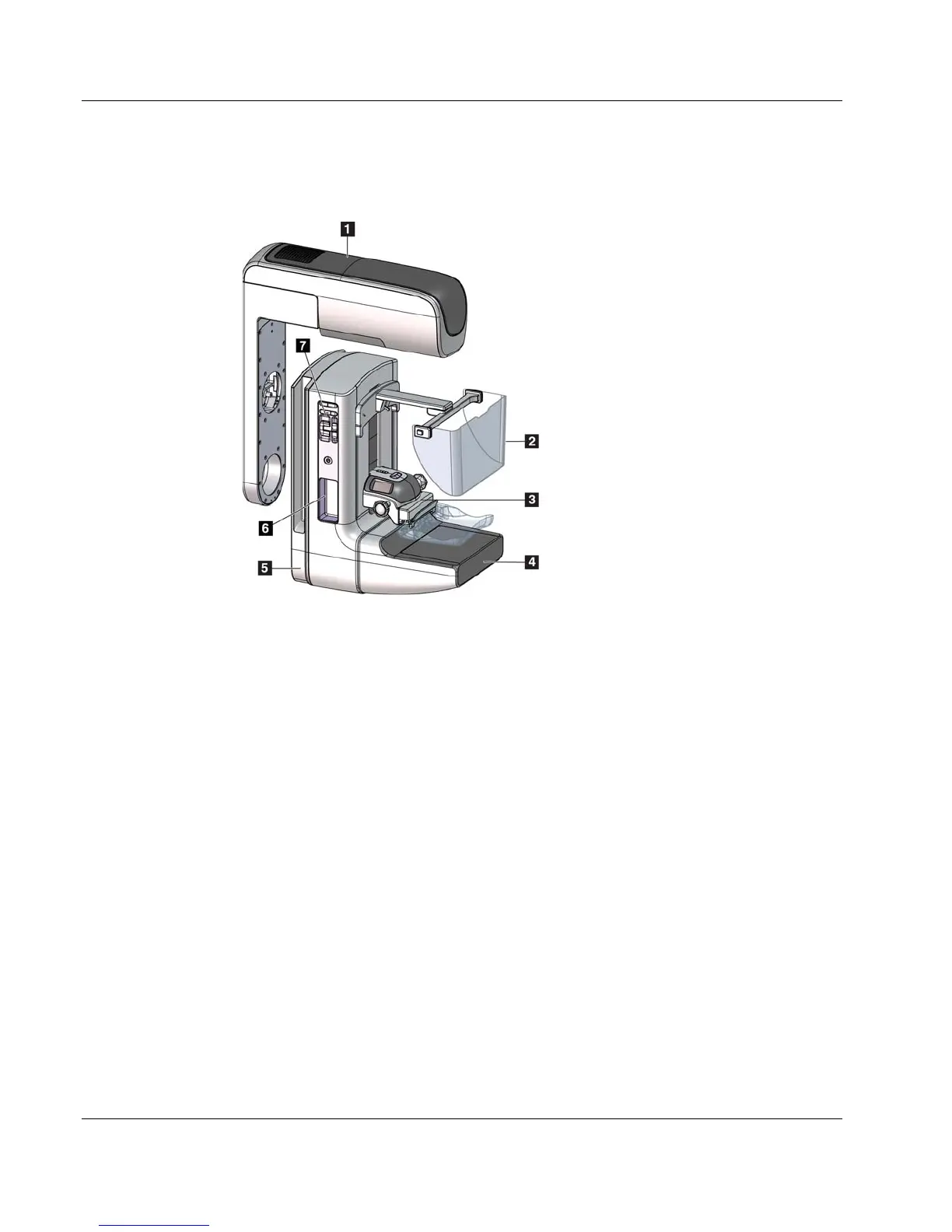

Figure 2: C-arm Overview
Figure Legend
1. Tube Arm
2. Patient Face Shield
3. Compression Device
4. Image Receptor
5. Compression Arm
6. Patient Handle
7. C-arm Control Panel
