User Manual
Chapter 2—System Controls and Indicators
Tubestand Controls and Indicators
3.1 C-arm Controls
3.2 Compression Device Controls and Displays
The C-arm Controls provide the
Collimator and C-arm functions.
See Section 5.0, page 17.

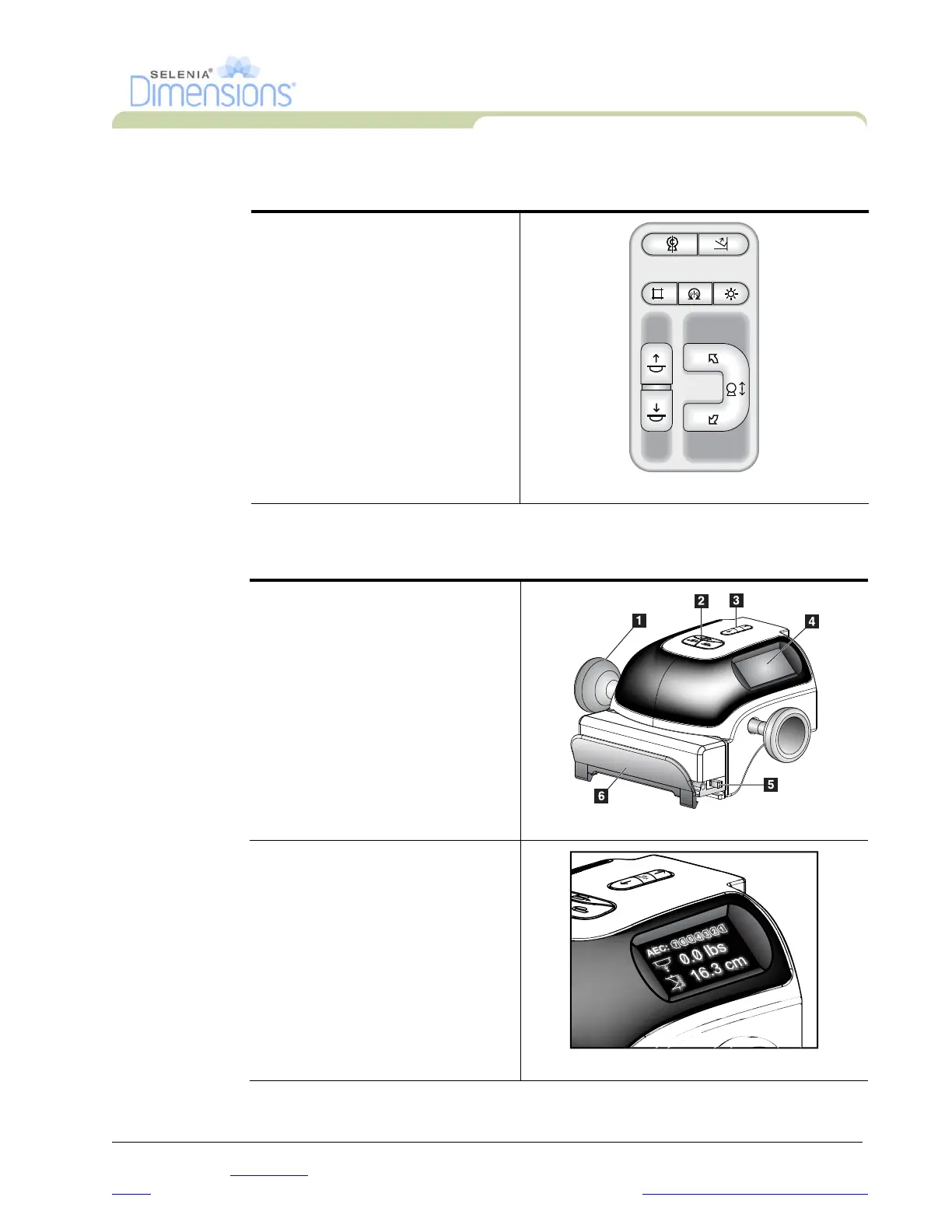

Figure 2-4: C-arm Controls
Legend for Figure2-5
1. Manual Compression Handwheels
2. Paddle Shift Buttons
3. AEC Buttons
4. Compression Device Display
5. The FAST Compression Mode Slide
6. Paddle Clamp
Figure 2-5: Compression Device
The Display on the compression
device shows:
• AEC Sensor Position
• Compression Force (displays 0.0
when force is less than 4 pounds)
• Compression Thickness
• Angle of C-arm after rotation (for
10 seconds)
Figure 2-6: Compression Display
AE
C
P
O
S
I
TIO
N
