Hologic selenia dimensions - Dual Function Footswitches; Figure 2-7: Tubehead Display; Figure 2-8: Dual Function Footswitches; Tubehead Display

14 P/N MAN-01964 Revision 001
DRAFT Preview copy—Generated 7/9/2010
User Manual
Chapter 2—System Controls and Indicators
Tubestand Controls and Indicators
3.3 Tubehead Display
3.4 Dual Function Footswitches
Warning: Put both footswitches away from the patient and C-arm area to
prevent any accidental footswitch use. When the patient has a
wheelchair, put the footswitches away from the area.
The Tubehead Display shows:
•SID
• Filter Type
• Collimator Setting
• Paddle Position

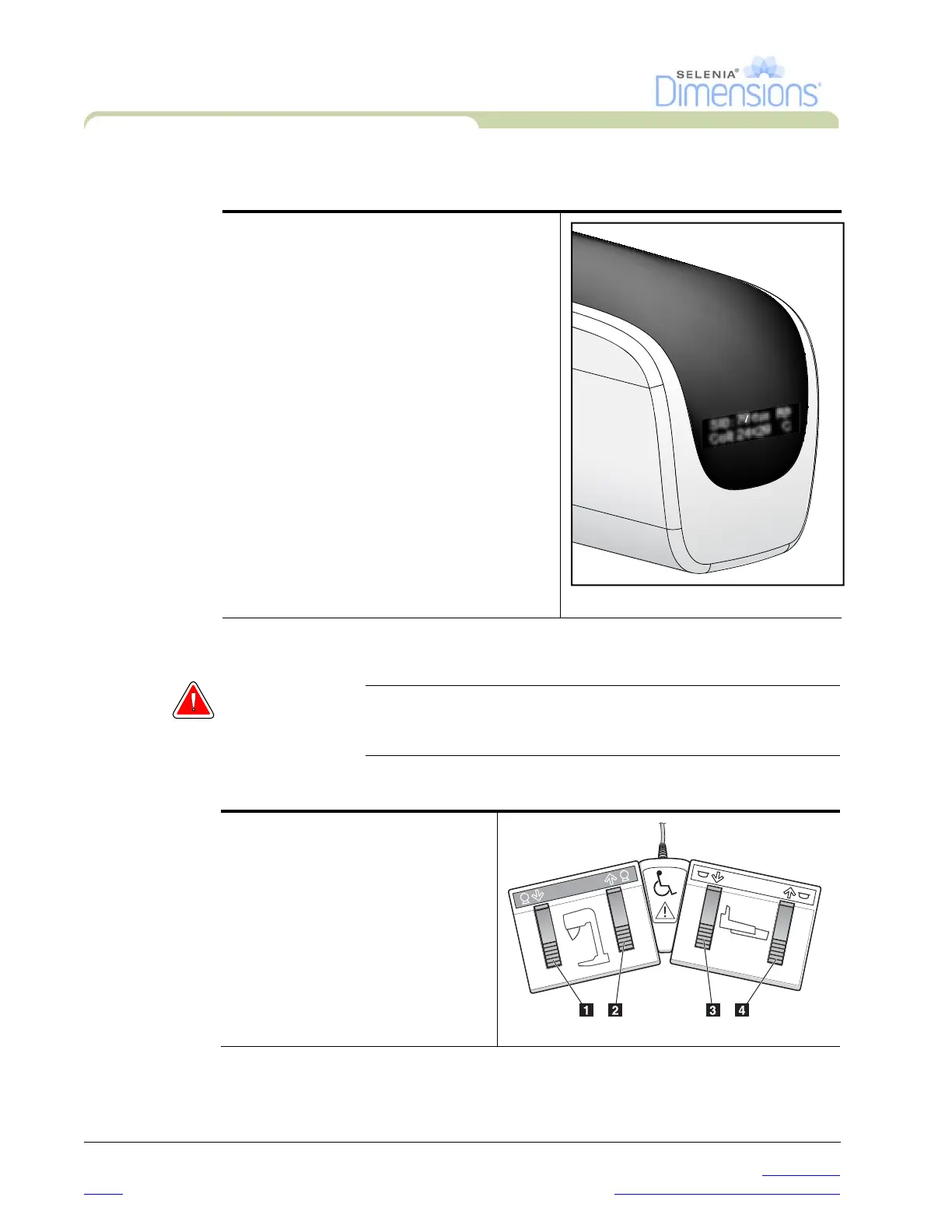

Figure 2-7: Tubehead Display
SID: 70 cm Rh
Coll: 24x29 C
To use the footswitches:
1. Press the footswitch to actuate.
2. Release the switch to stop the
movement.
Legend for Figure2-8
1. C-arm Down
2. C-arm Up
3. Compression Down
4. Compression Up
Figure 2-8: Dual Function Footswitches
COMPRESSION
C-ARM
