User Manual
Chapter 5—How to Use the Accessories
The Patient Face Shields
3.0 The Patient Face Shields
The Face Shield keeps the head and face of the patient away from the x-ray field during the
examination. Inspect the shield each day before use.
Warning: The Face Shield must be attached for all exposures except
magnification case studies.
Warning: The Face Shield does not protect from radiation.
3.1 How to Install or Remove the Conventional Face Shield

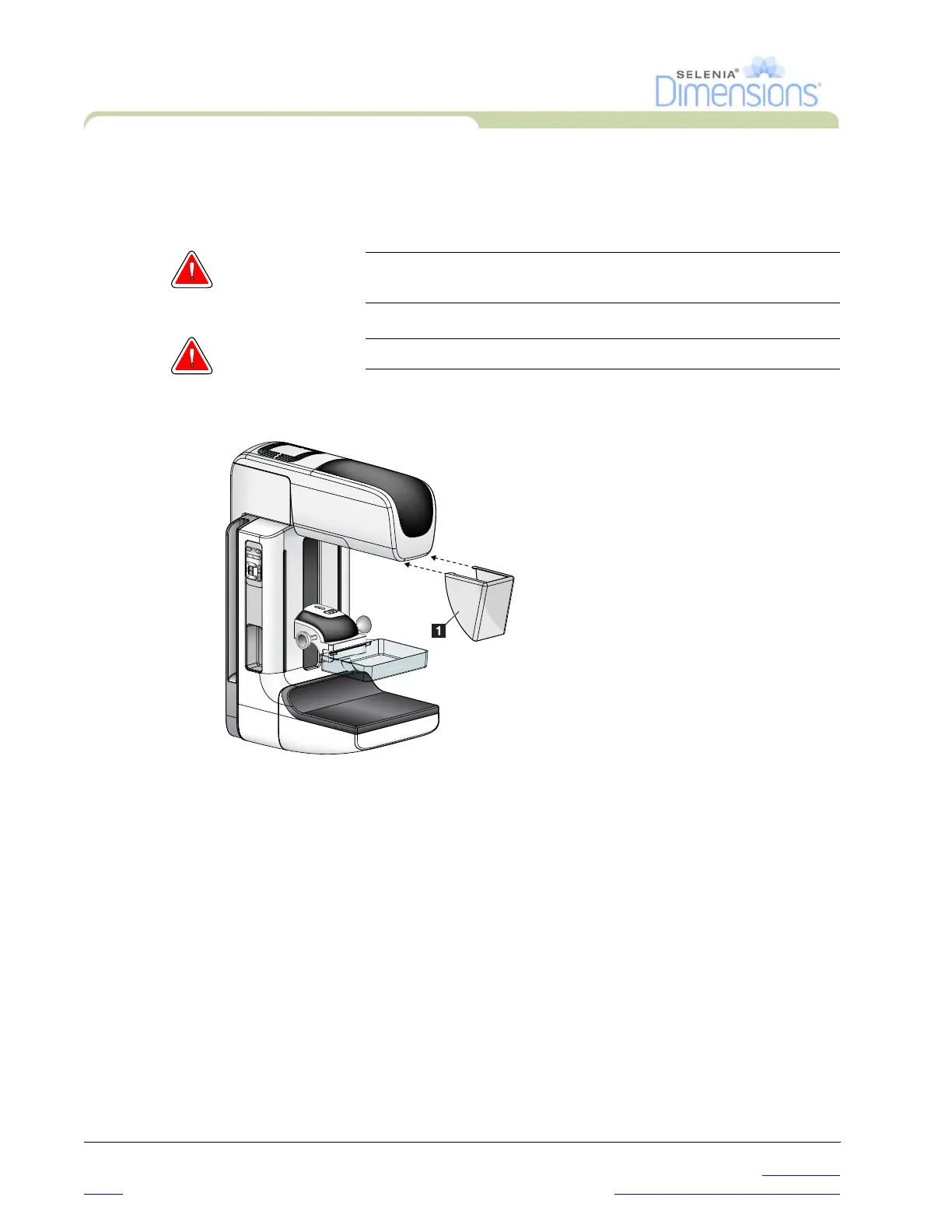

Figure 5-2: How to Install the Conventional Face Shield
See Figure 5-2 to install the Conventional Face Shield:
1. Carefully put the tab ends of the Face Shield (Number 1 in the Figure) into the slots at the
front of the tubehead mount.
2. Slide the Face Shield on the tubehead mount until the Face Shield locks.
To remove the Conventional Face Shield:
1. Pull the sides of the Face Shield in a horizontal direction (away from the tubehead).
2. Remove the Face Shield.
