Introduction
Chapter 5—How to Use the Accessories
1.0 Introduction
The Selenia Dimensions can perform screening or diagnostic applications with specified
accessories. This chapter describes how to use all possible system accessories. Your
accessories depend on your system configuration.
2.0 How to Install Accessories on the C-arm
The Retractable Face Shield, Magnification Stand, and Localization Crosshairs are installed
in slots on the C-arm. The slots have labels with icons to indicate the accessory that attaches
in the slot. Each accessory has two lines. Align the accessory with the related line on the C-
arm. When the hook on the accessory is at the correct depth, the second, thinner line aligns
with the line on the C-arm.
The next sections contain installation instructions for each accessory.

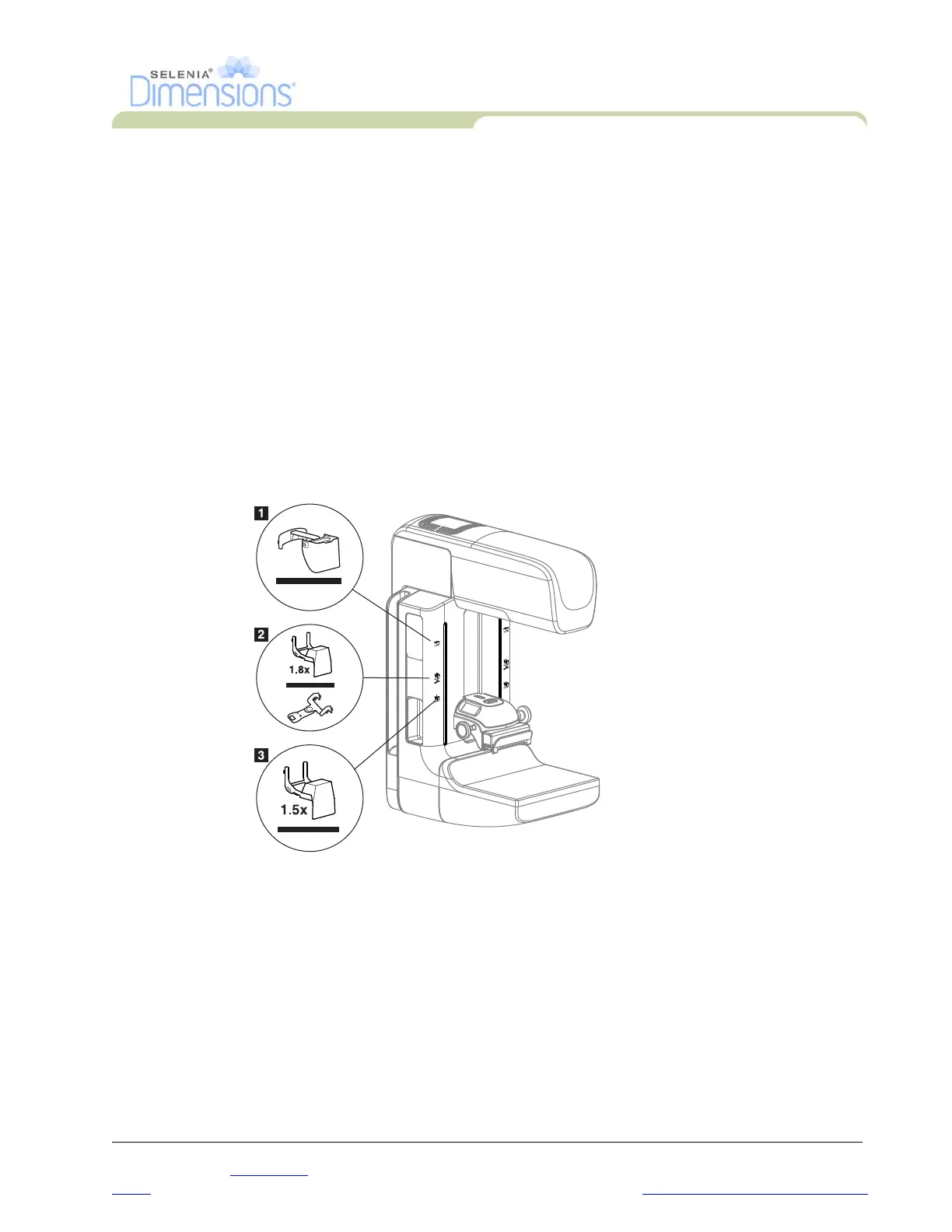

Figure 5-1: C-arm Accessories
Legend for Figure5-1
1. Slot for Retractable Face Shield (Tomosynthesis option)
2. Slot for 1.8x Mag Stand
3. Slot for 1.5x Mag Stand
