User Manual
Chapter 5—How to Use the Accessories
The Patient Face Shields
3.2 How to Install or Remove the Retractable Face Shield
To install the Retractable Face Shield, see Figure 5-4, page 50:
1. Completely extend the Face Shield to the outer position.
2. Align the hooks of the Face Shield with the mounting slots on the C-arm, indicated by a
face shield icon.
3. Put the hooks on both sides of the Face Shield into the mounting slots on the C-arm. The
Unlock Lever (number 1, Figure 5-4) will be in the Up position.
4. Push the Face Shield to the down and locked position. The Unlock Lever is in the down
position when the Face Shield locks.

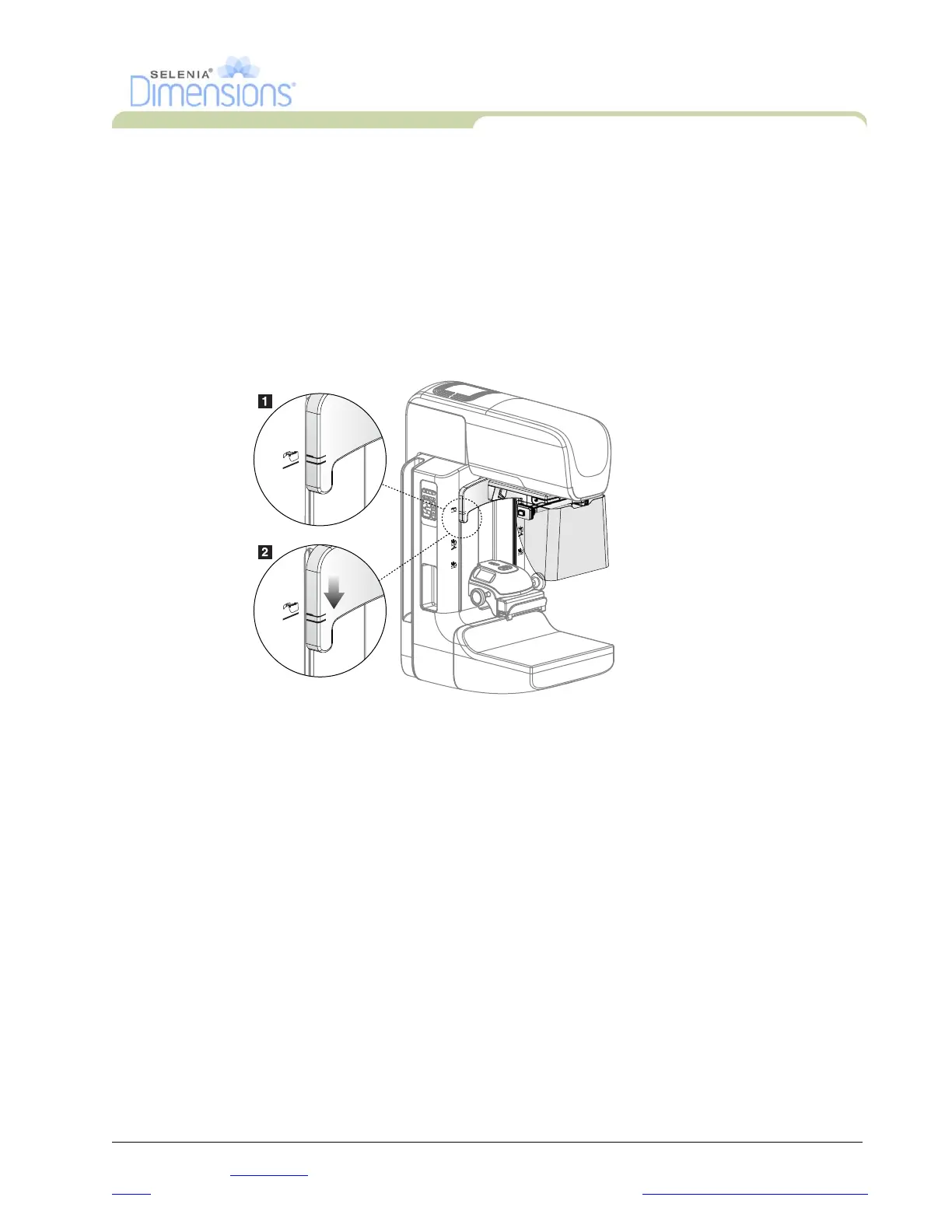

Figure 5-3: How to Align the Retractable Face Shield on the C-arm
To remove the Retractable Face Shield:
1. Press and hold the Unlock Lever (number 1, Figure 5-4) in the Up position.
2. Lift the Face Shield from the slots and remove from the C-arm.
