Magnification Stand
5.0 Magnification Stand
The Selenia Dimensions Magnification Stand has a breast platform and an abdominal shield.
When the Magnification Stand is installed, the HTC grid automatically retracts and the x-ray
exposure techniques are set to the Magnification default values. When the platform is
installed, only use the Magnification paddles (see Section 4.4, page 52).
5.1 How to Install and Remove the Magnification Stand

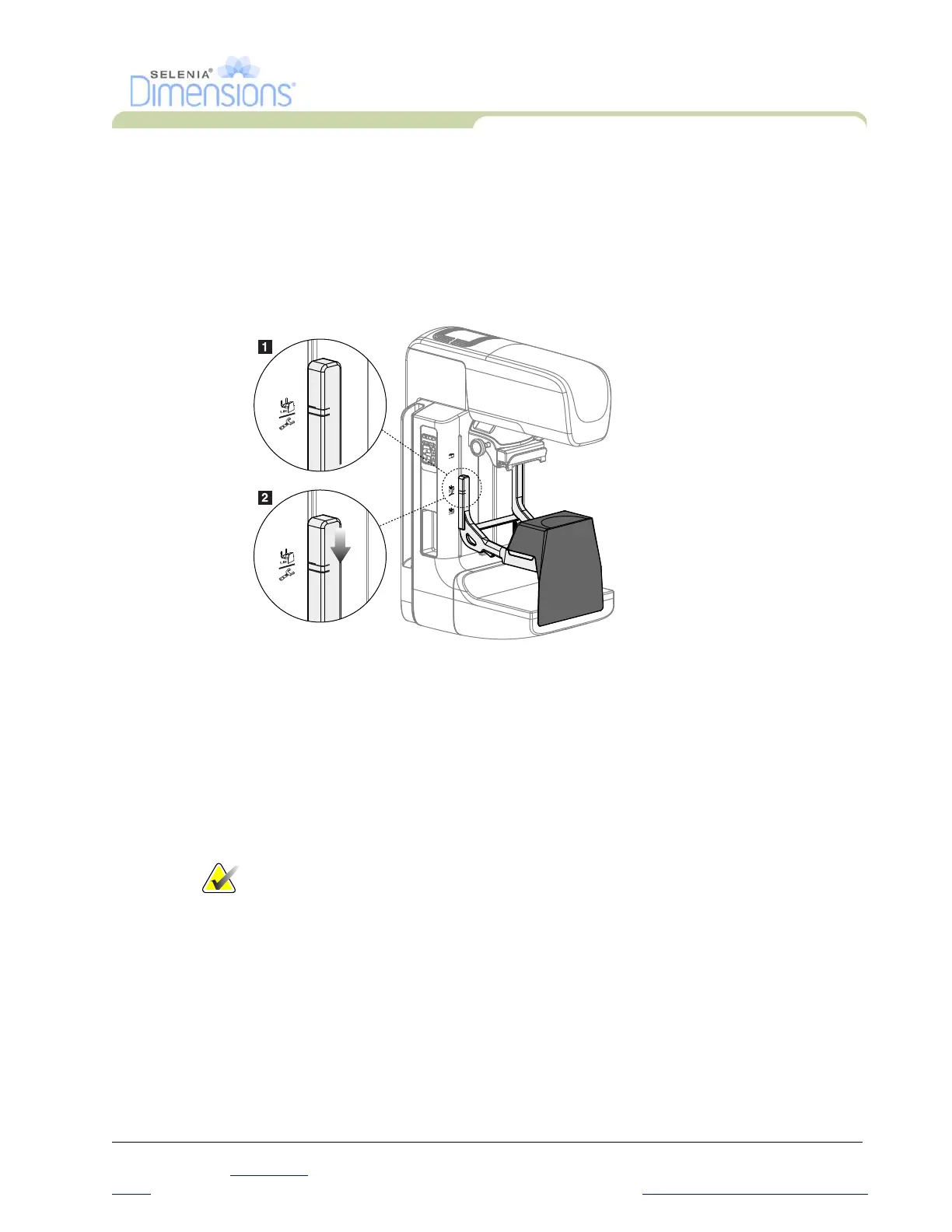

Figure 5-9: Installation of the Magnification Stand
To install the Magnification Stand:
1. Remove the Face Shield (see Section 3.0, page 48) and the compression paddle.
2. Move the Compression Device completely to the top.
3. Hold the Magnification Stand with the handles. Compress the release levers on the
bottom of each handle, and hold the levers open.
4. Align the thick black lines on the Magnification Stand with the thick black lines on the
C-arm. When these lines meet, the hooks of the Magnification Stand align to the
mounting slots on the C-arm. See Figure 5-9, number 1.
Note… There are two sets of hooks for the Magnification Stand—One set is for
1.8x, and the other set is for 1.5x. See Figure 5-1, page 47, numbers 2
and 3.
5. Put the hooks of the Magnification Stand into the C-arm slots. Slide the Magnification
Stand down, until the thin black lines on the Magnification Stand and the black line of
the C-arm meet. See Figure 5-9, number 2.
6. Release the levers. The locking pins slide into holes and lock the device.
To remove the Magnification Stand:
1. Remove the Magnification paddle.
2. Hold the handles of the Magnification Stand and compress the release levers.
3. Lift and remove the device from the C-arm.
