User Manual
Chapter 2—System Controls and Indicators
Perform the Functional Tests
5.0 Perform the Functional Tests
The following Functional Tests make sure that the control operates correctly.

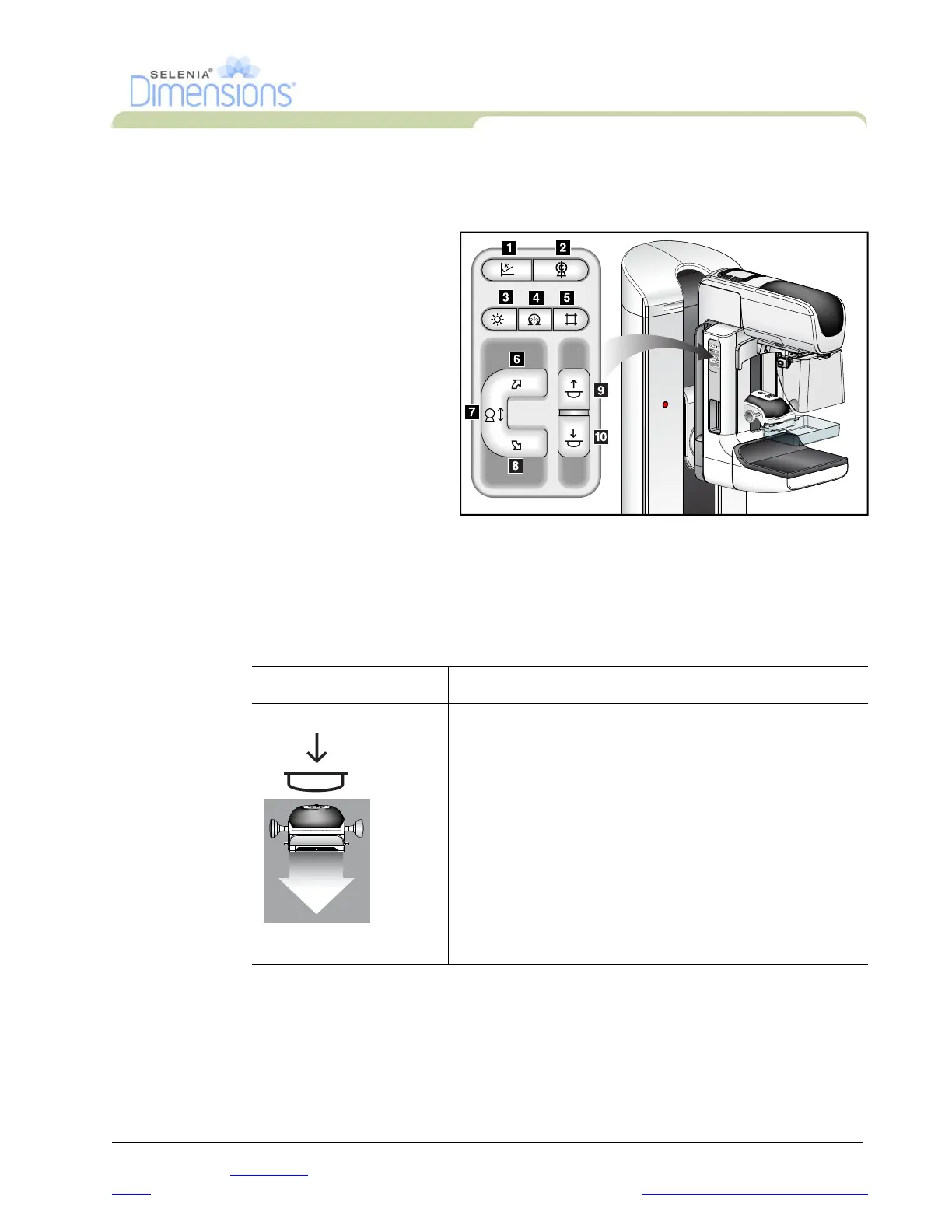

Legend for Figure2-11
1. Compression Release
2. (Future use)
3. Light Field Lamp
4. (Future use)
5. Collimator Override
6. Clockwise C-arm Rotation
7. C-arm Up and Down
8. Counterclockwise C-arm
Rotation
9. Compression Up
10. Compression Down
A C-arm control panel is on
both the left and right sides
of the Gantry.
Figure 2-11: C-arm Controls (left side shown)
Table 2-1: C-arm Functional Tests
Function Functional Test
Compression Down Press a Compression Down button:
• The compression brake engages.
• The light field lamp illuminates.
• The compression device lowers.
Note… When you press the Compression Down button, the
compression brake remains engaged until the Compression
Release button is pressed.
Compression down movement stops:
• When you release the button.
• When you reach the Down Force limit.
• When you reach the Lower Travel limit.
