18 P/N MAN-01964 Revision 001
DRAFT Preview copy—Generated 7/9/2010
User Manual
Chapter 2—System Controls and Indicators
Perform the Functional Tests
Compression Up Press a Compression Up button:
• The Compression Device moves toward the top.
• The Compression Up button does not release the
Compression Brake.
Compression Up movement automatically stops:
• When you release the button.
• When you reach the upper travel limit.
Compression Release Press the Compression Release button:
• The Compression Motor Brake releases.
• The Compression Device lifts.
C-arm Up Press the C-arm Up button:
• The C-arm movement automatically stops when the
button is released.
• The C-arm movement automatically stops when the
C-arm reaches the upper travel limit.
• The C-arm movement is disabled when a compression
force of 45 N (10 pounds) or greater is applied.

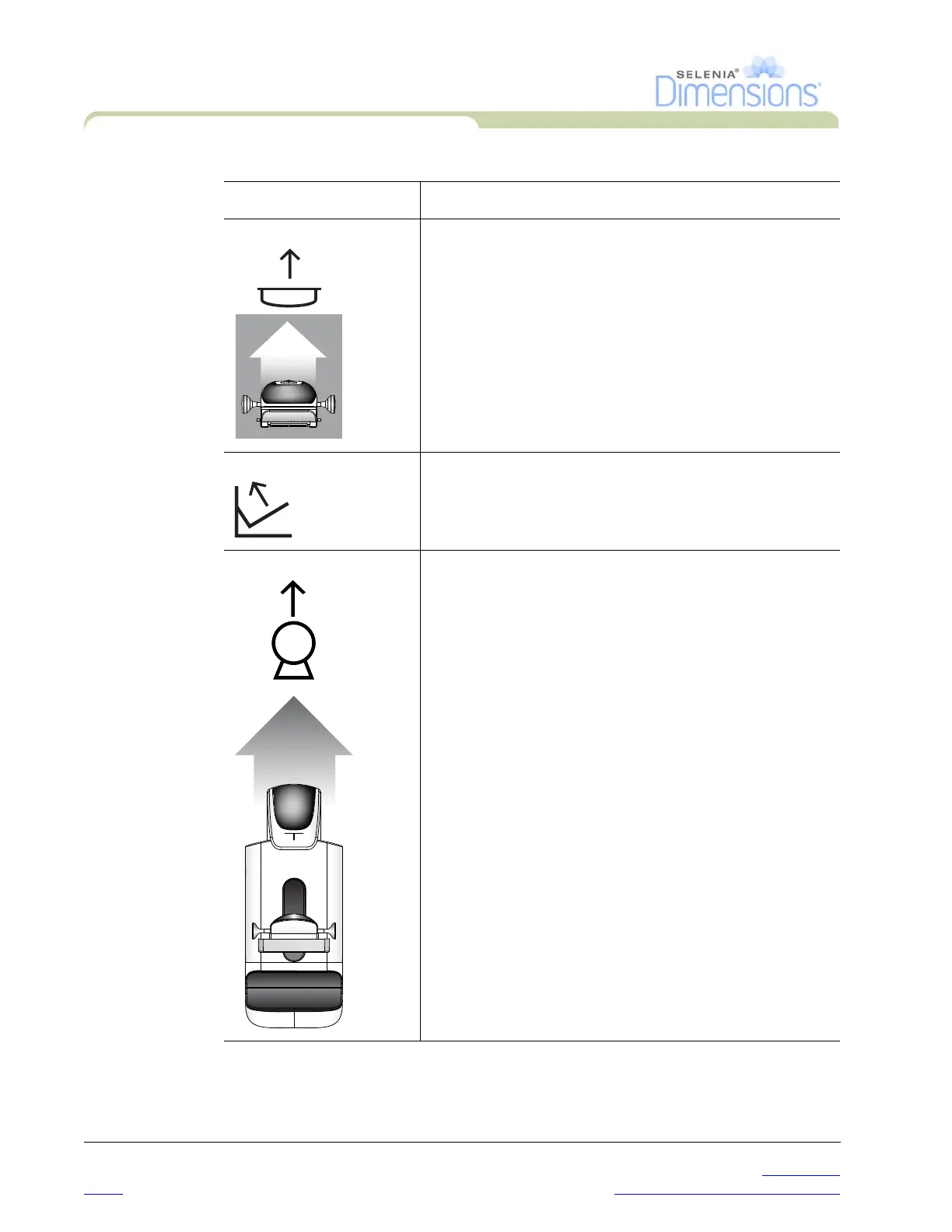

Table 2-1: C-arm Functional Tests
Function Functional Test
