User Manual
Chapter 5—How to Use the Accessories
The Patient Face Shields
3.3 How to Use the Retractable Face Shield
1. Always completely extend the Face Shield before an exposure.
2. To extend the Face Shield, pull the shield away from the C-arm until the device latches
in the outer position.
To retract the Face Shield
1. Press one of the Latch Release buttons (number 2, Figure 5-5—one on each side).
2. Push the Face Shield toward the C-arm until the device stops.

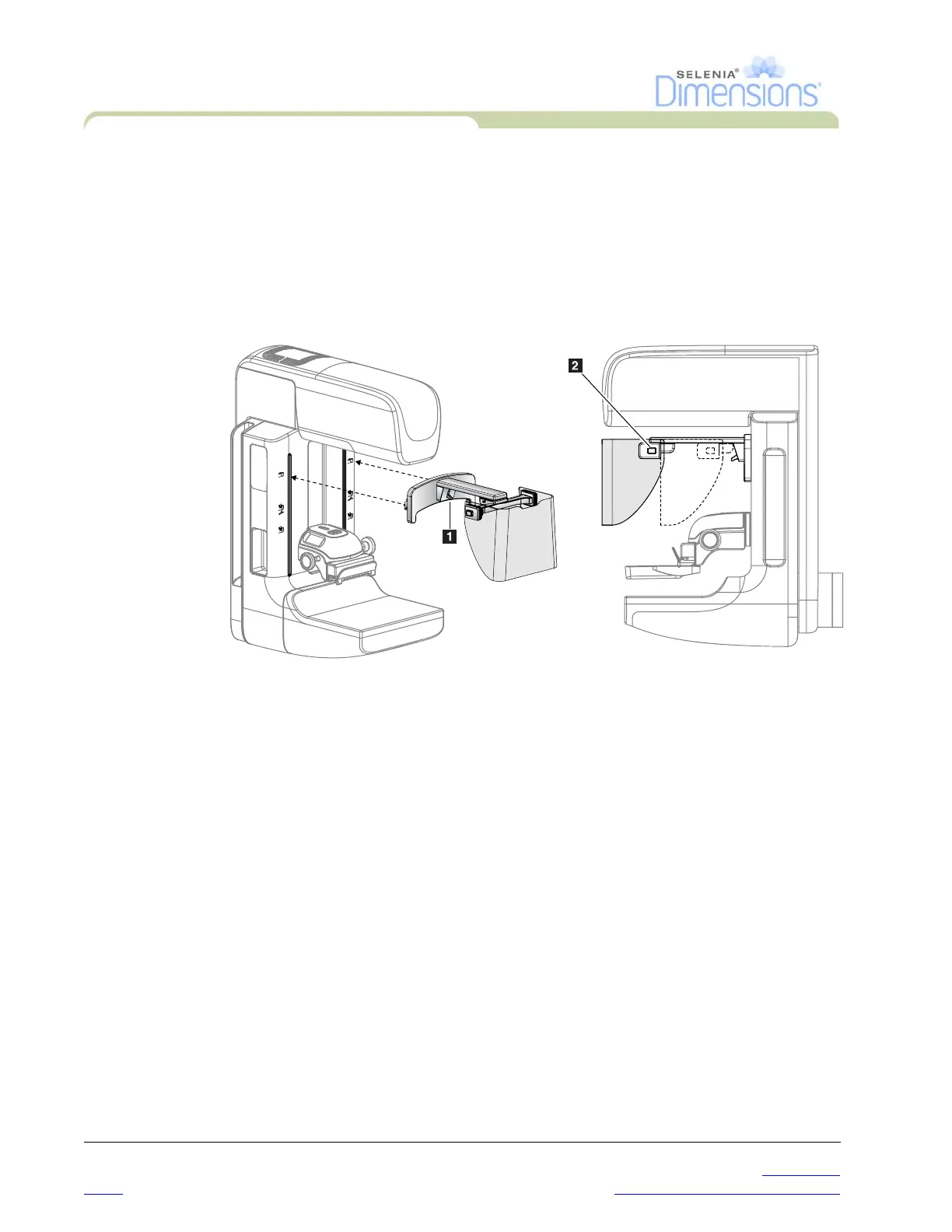

Figure 5-4: Installation
Figure 5-5: Operation
