ThinPrep™ 5000 Processor with AutoLoader Operator’s Manual
2.3
INSTALLATION

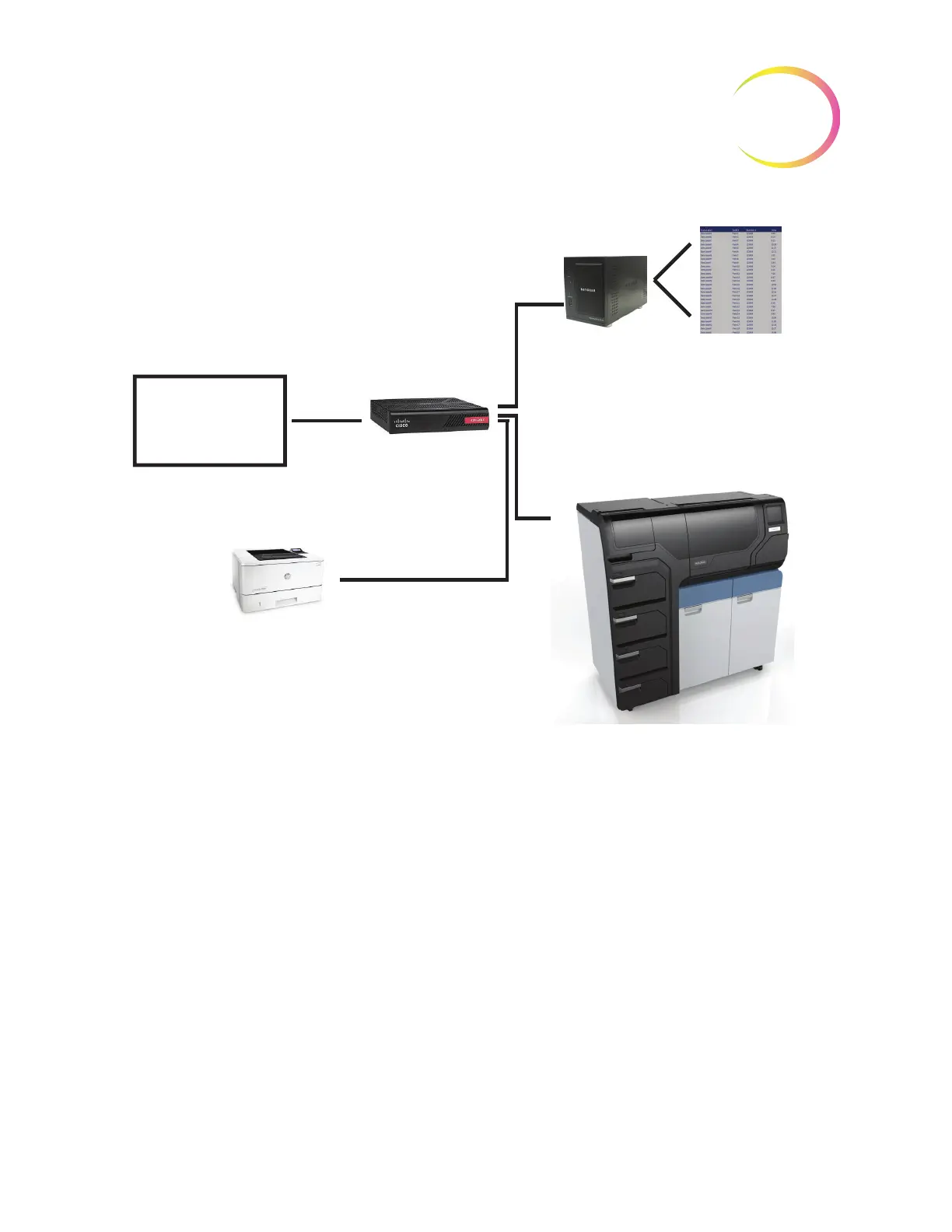

Figure 2-2 Local Network Interconnection Schematic (Example)
The NAS device is provided by Hologic as a means to store files from the ThinPrep 5000 processor
with AutoLoader. This NAS device will be added to the Hologic network side of the router.
The instrument LIS interface is compatible with a variety of LIS systems. Hologic can provide
guidance on confirmation capabilities and constraints for setting up the LIS connection. Hologic will
validate the integrity of the instrument LIS interface. The end user will be responsible for all changes
to their LIS system as Hologic makes no representation or warranties with respect to the user’s LIS
system.
Customer’s
LIS System
Customer’s
network
Note:
Not to scale. A NAS device
is about a 6-inch cube.
Local
area
network
NAS
Data file
ThinPrep 5000 Processor with AutoLoader
Router
Note:
The appearance of components may
differ from those illustrated here.
