Honeywell 30 Series IP Cameras User Guide

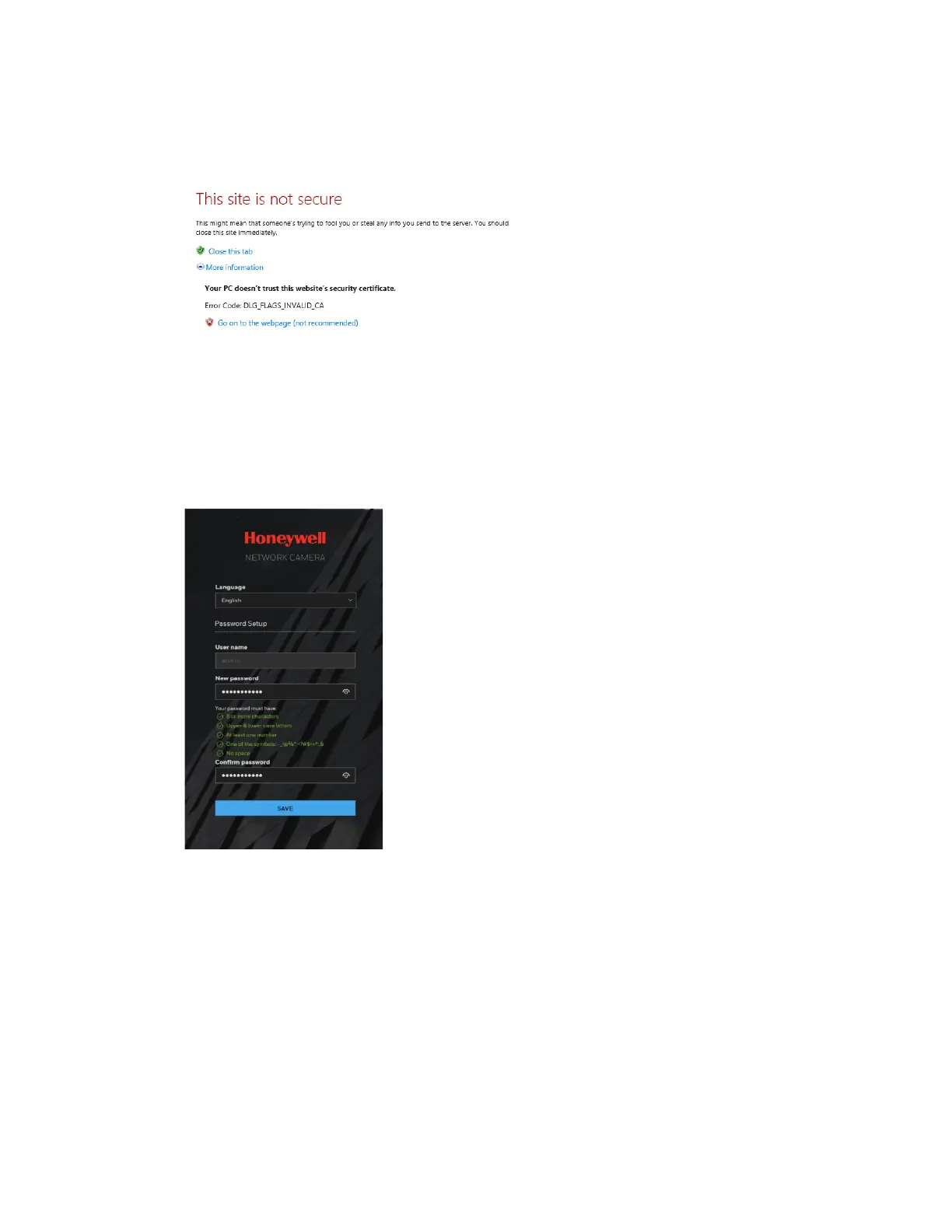

2. The following window is displayed. Click Go on to the webpage (not

recommended).

Figure 10 Security Certificate Problem

For how to resolve the security certificate problem, see Export CA Certificate on page

81.

3. Setup a new password according to the password requirements at the first login.

Click SAVE.

The password cannot be blank.

Figure 11 Setup a New Password

4. Enter the user name as admin and newly created password. Click LOGIN.

Main Page
