Honeywell 30 Series IP Cameras User Guide
Model Main Stream Sub Stream Third Stream
HC30WE5R2
(5MP)
2560x1920/2048x1536/1600x1200/
1280x960/800x600/704x480/640x4
80
800x600/704x48
0/640x480
640x480/70
4x480
HC30WF5R1 1920x1920/1536x1536/1200x1200/
960x960/480x480
960x960/480x48
0
480x480
HC30W25R3(
4MP)
2688x1520/1920x1080/1600x904/1
280x720/640x360
1280x720/640x3
60
640x360
HC30W25R3(
5MP)
2560x1920/2048x1536/1600x1200/
1280x960/800x600/704x480/640x4
80
800x600/704x48
0/640x480
640x480/70
4x480
HC30W25R3-
12V(4MP)
2688x1520/1920x1080/1600x904/1
280x720/640x360
1280x720/640x3
60
640x360
HC30W25R3-
12V(5MP)
2560x1920/2048x1536/1600x1200/
1280x960/800x600/704x480/640x4
80
800x600/704x48
0/640x480
640x480/70
4x480

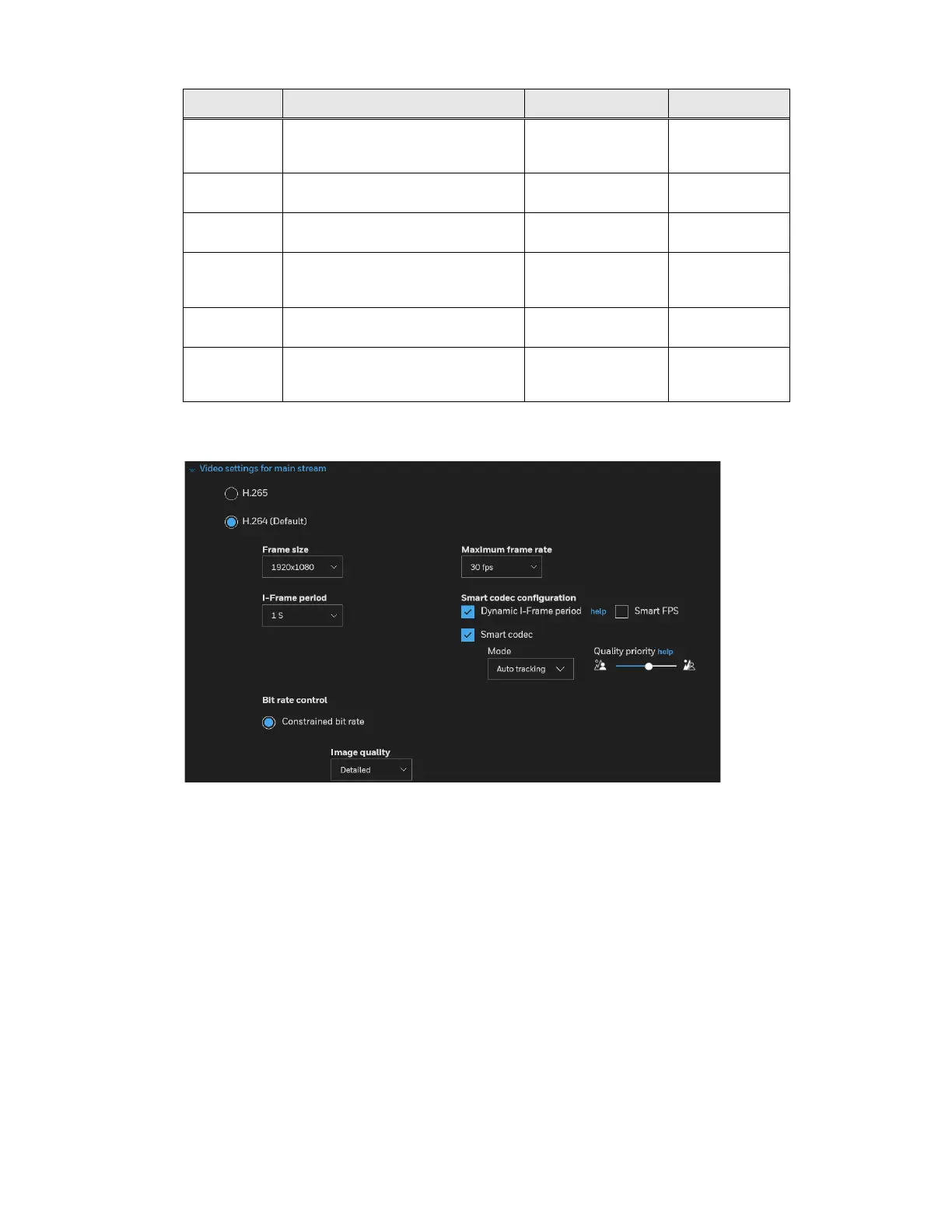

Figure 35 Video Stream Settings
Frame Size
You can set different video resolutions for different viewing devices. For example, you
can configure a smaller frame size and lower bit rate for remote viewing on mobile
phones and a larger video size and a higher bit rate for live viewing on web browsers or
recording the stream to an NVR. A larger frame size takes up more bandwidth.
Maximum Frame Rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for
smoother video quality and for recognizing moving objects in the field of view.
If the power line frequency is set to PAL, the frame rates are selectable from 1-50 fps. If
the power line frequency is set to NTSC, the frame rates are selectable from 1-60 fps.
You can also select Customized and manually enter a value.

Honeywell 30 Series Specifications

General

Video Compression	H.264
Series	30 Series
Category	Security Camera
Night Vision	Yes
Power Source	Wired
Motion Detection	Yes
Weather Resistance	Yes
Lens	Fixed
Storage	MicroSD card (up to 128GB)
