Honeywell 30 Series IP Cameras User Guide
server setting.
• URL: Enter the URL of the HTTP server.
• User name: Enter the user name if necessary.
• Password: Enter the password if necessary.
To verify if the HTTP settings are correctly configured, click TEST. The result will be
shown in a pop-up window. If successful, you will receive a test.txt file on the HTTP
server.
Click SAVE SERVER to enable the settings.
Add Media
Click Add media to open the media setting window. You can specify the type of media
that will be sent when a trigger is activated. There are three choices of media types
available: Snapshot, Video Clip, and System log. Select the item to display the detailed
configuration options. You can configure either one or all of them.

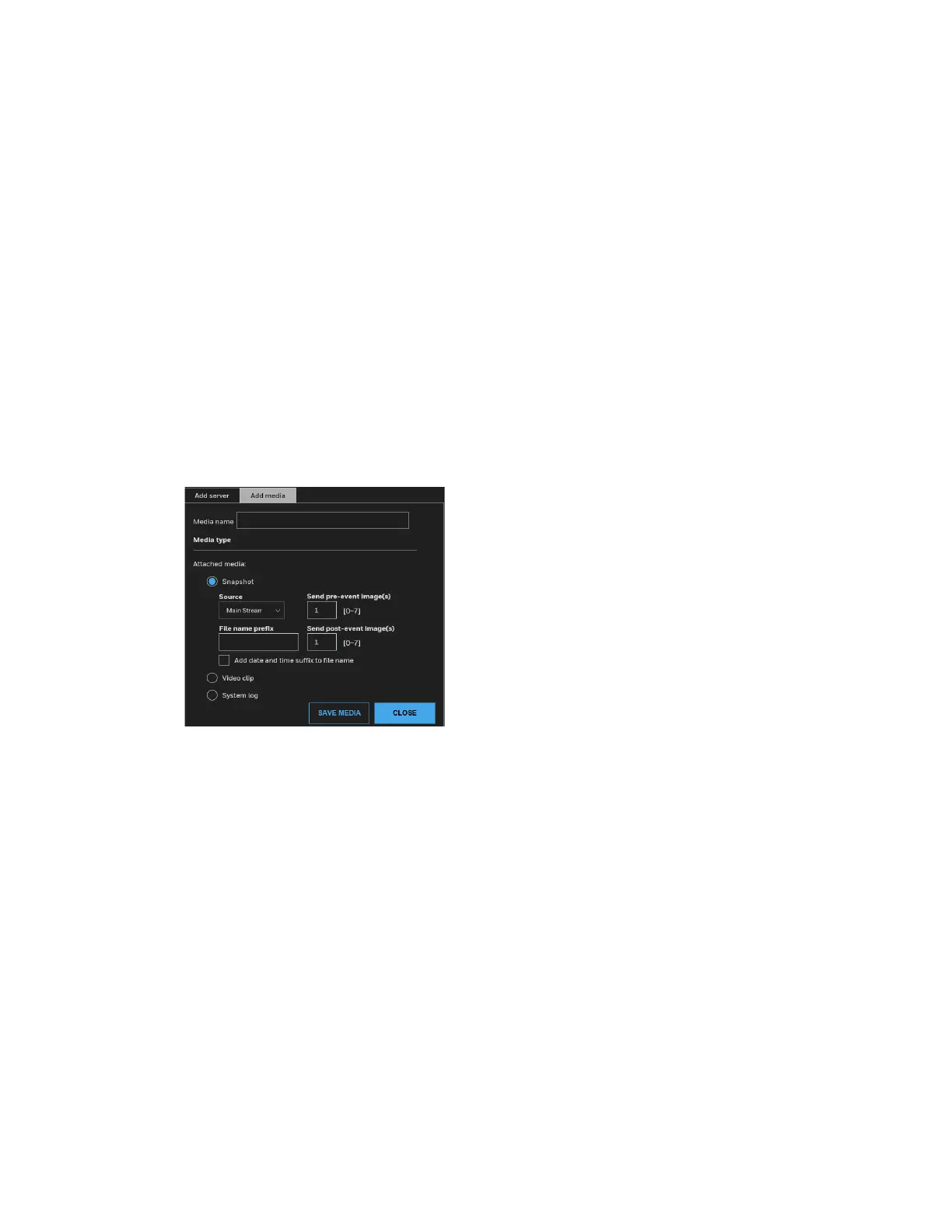

Figure 78 Add Media
Media type - Snapshot
Select to send snapshots when a trigger is activated.
• Media name: Enter a name for the media setting.
• Source: Select to take snapshots from any of the video streams.
• Send pre-event image(s)
The camera has a buffer to temporarily hold data up to a certain limit. Enter a number to
decide how many images to capture before a trigger is activated. Up to 7 images can be
generated.
• Send post-event image(s)
Enter a number to decide how many images to capture after a trigger is activated. Up to
7 images can be generated.
For example, if both the Send pre-event images and Send post-event images are set to
7, a total of 15 images can be generated after a trigger is activated.
• File name prefix
