Honeywell 30 Series IP Cameras User Guide

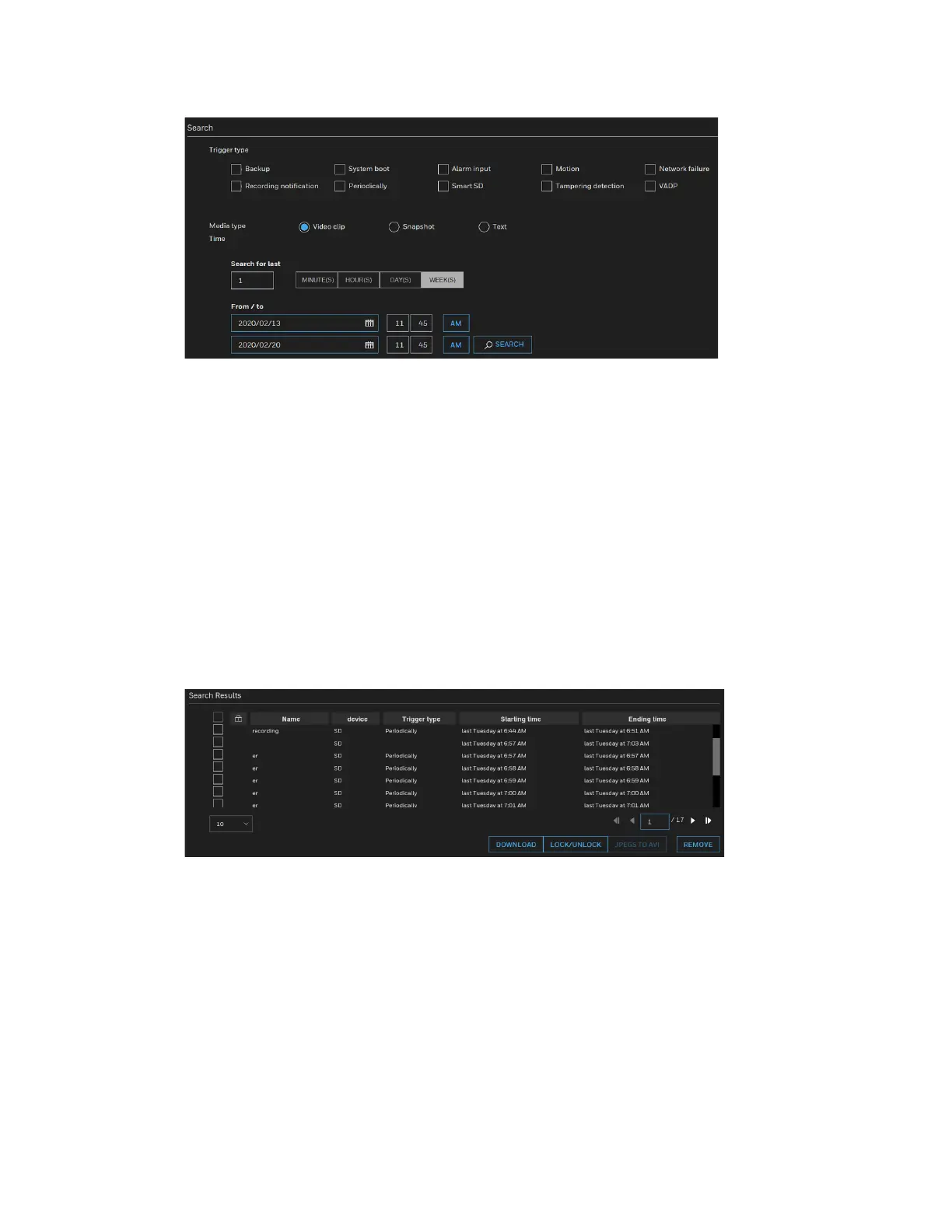

Figure 85 Search the Records

• Trigger Type: Select one or more trigger types.

• Media Type: Select a media type (Video clip, snapshot or text).

• Time: Manually enter the time range you want to search for contents created at a

specific point in time.

Click SEARCH and the recorded data corresponding to the search criteria will be listed

in Search Results tab.

Search Results

The following is an example of search results. To sort the search results, click each

column header.

Figure 86 Search Results

• Play: Click on a search result and a Play window will be displayed for immediate

review of the selected file.
