68
Honeywell 30 Series IP Cameras User Guide
Click SAVE MEDIA to enable the settings, and then click CLOSE to exit the page.
In the Event Settings tab, the Servers and Medias you configured will be listed.
Note: Make sure the Event Status is set to ON to enable the event triggering action.
When completed, click SAVE EVENT to enable the settings and click CLOSE to exit.
See the example of the Event Settings page below:

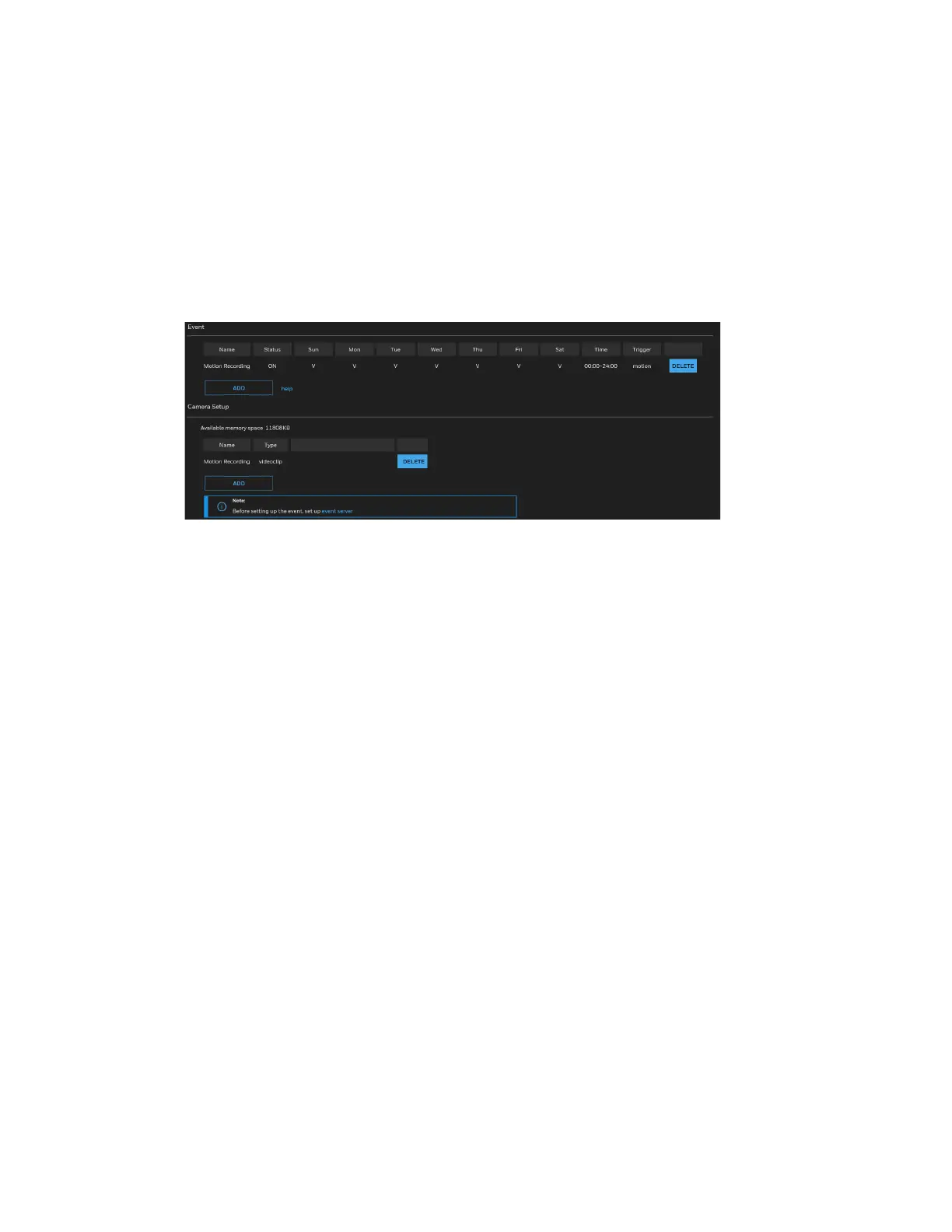

Figure 80 Event Settings Examples
When the Event Status is ON, the event configuration above is triggered by motion
detection, the camera will automatically send snapshots via e-mail.
If you want to stop the event trigger, click on the ON button to turn it to OFF status or
click DELETE to remove the event setting.
• To remove a server setting from the list, select a server name and click DELETE.
You can only delete a server setting when it is not applied in an existing event
setting.
• To remove a media setting from the list, select a media name and click DELETE.
You can only delete a media setting when it is not applied in an existing event
setting.
