57
Honeywell 30 Series IP Cameras User Guide

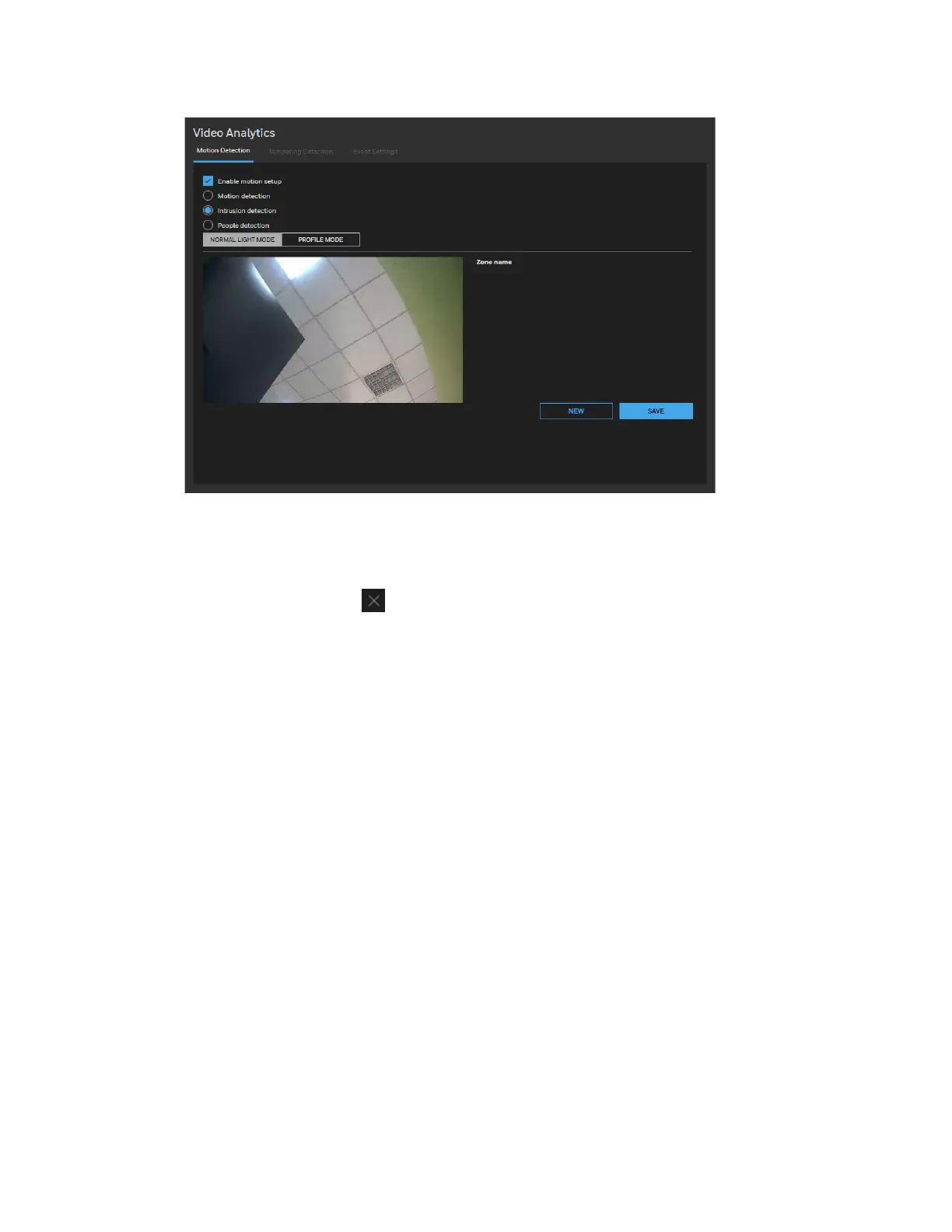

Figure 66 Intrusion Detection
To enable intrusion detection:
1. Click NEW to add a new intrusion detection window.
2. In the Window Name text box, enter a name for the intrusion detection window. To
delete a window, click on the right of the window name.
3. Draw a detection area by clicking four corner points on the target area. You can
change the shape of the detection area by dragging the corner points.
4. Click SAVE to enable the settings.
5. Select Enable motion detection to enable this function.
People Detection
Note: Fisheye model (HC30WF5R1) doesn’t support people detection function.
The people detection function can detect and trace people motions in customized
windows. If a people motion is detected, a flashing red window will frame the head of the
people and follow the motion of the people.
