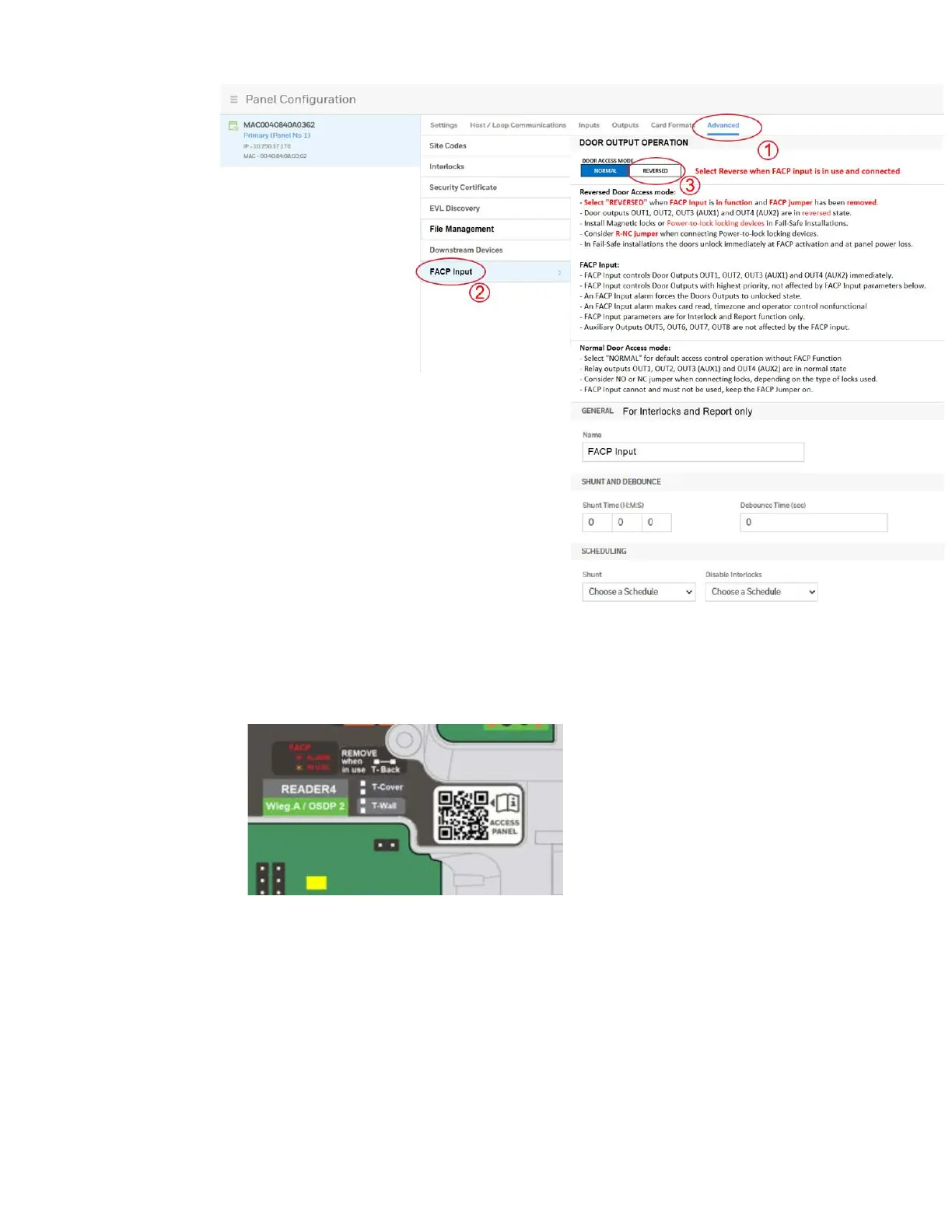

112 MPA2C3 User Manual
2. Click Save
On the panel the Amber FACP LED will be ON and all Door Relays will be
energized state (if the door outputs are in idle locked mode).
3. Reposition the OUT/AUX NO/NC jumper on all Outputs.
On the Panel, regard all (OUT1, OUT3 (AUX1), OUT2, OUT4 (AUX2)) relay outputs
modes on the panel as reversed.
