5. Install the side rails on each side of the SP by aligning each side rail to the component, and
then snapping it into place.

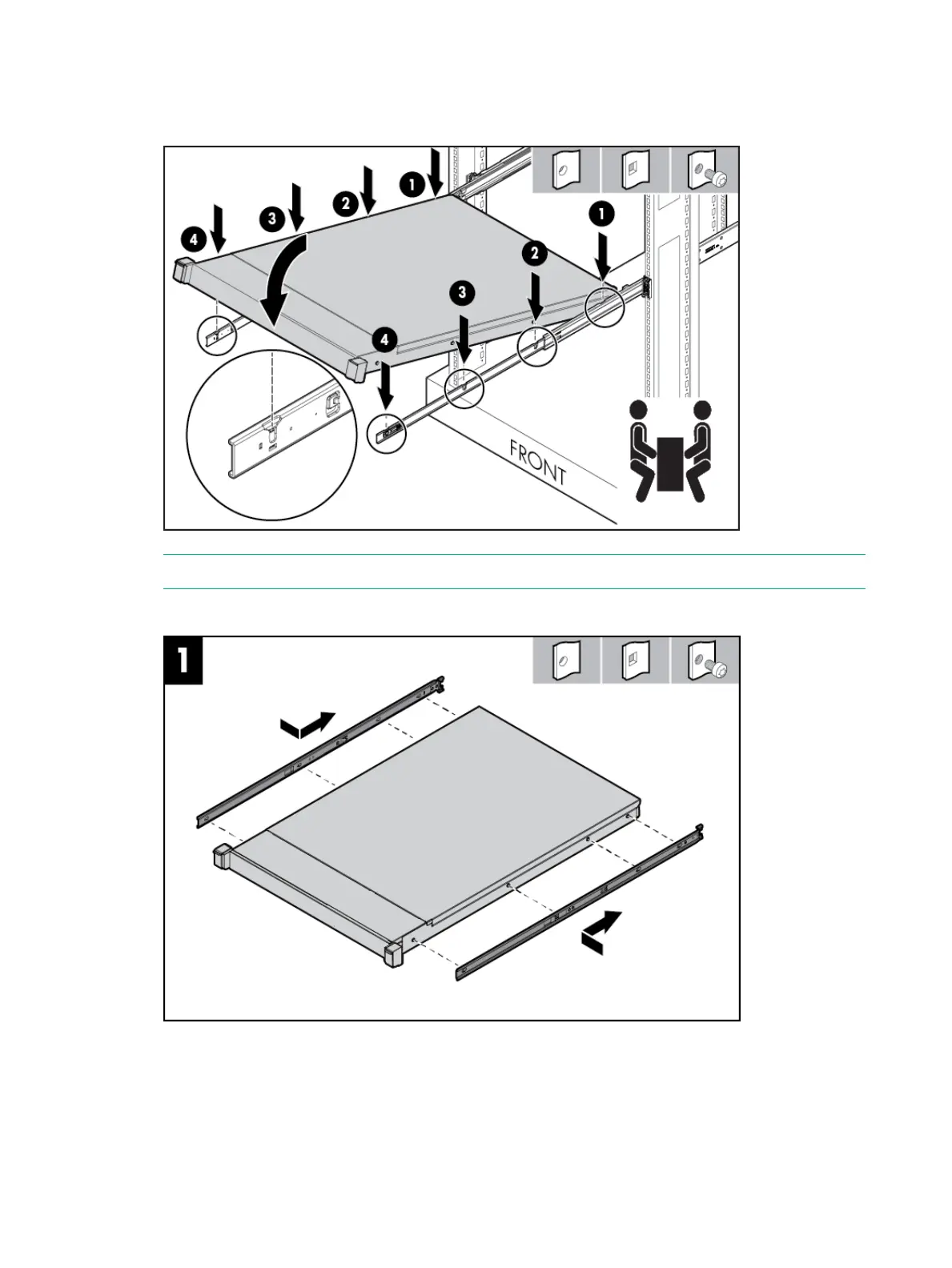

Figure 75 Installing SP
NOTE: Align the rail pin guides with the slots on the mounting rails before setting the SP.
Figure 76 Installing side rails
6. Slide the SP onto the mounting rails and into the rack.
76 System Component Installation in Existing Rack
