Static Virtual LANs (VLANs)
Configuring VLANs
Status:
Port-Based: Port-Based, static VLAN
Protocol: Protocol-Based, static VLAN
Dynamic: Port-Based, temporary VLAN learned through
GVRP (Refer to the chapter titled “GVRP” in the Advanced
Traffic Management Guide for your switch.)
Voice: Indicates whether a (port-based) VLAN is configured as
a voice VLAN. Refer to
“Voice VLANs” on page 2-49.
Jumbo: Indicates whether a VLAN is configured for Jumbo
packets. For more on jumbos, refer to the chapter titled “Port
Traffic Controls” in the Management and Configuration Guide
for your switch.
Port Information: Lists the ports configured as members of the
VLAN.
DEFAULT: Shows whether a port is a tagged or untagged member
of the listed VLAN.
Unknown VLAN: Shows whether the port can become a dynamic
member of an unknown VLAN for which it receives an
advertisement. GVRP must be enabled to allow dynamic
joining to occur. Refer to table
3-1 on page 3-8.
Status: Shows whether the port is participating in an active
link.

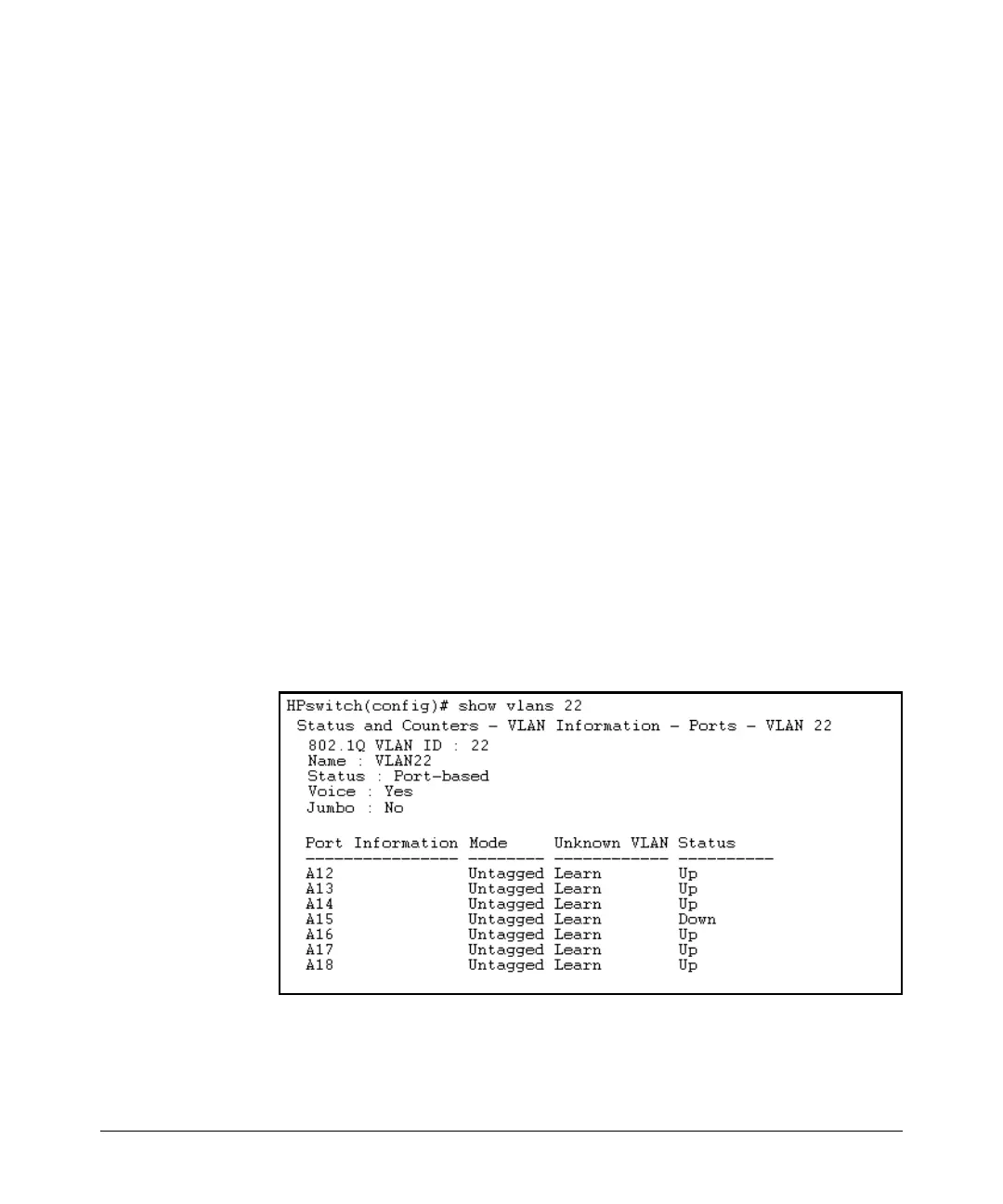

Figure 2-19. Example of “Show VLAN” for a Specific Static VLAN
2-30
