MAC-based VLAN configuration example
Network requirements
As shown in Figure 54:
• Ten-GigabitEthernet 1/0/1 of Device A and Device C are each connected to a meeting room.
Laptop 1 and Laptop 2 are used for meetings and might be used in either of the two meeting
rooms.
• One department uses VLAN 100 and owns Laptop 1. The other department uses VLAN 200
and owns Laptop 2.
Configure MAC-based VLANs, so that Laptop 1 and Laptop 2 can access Server 1 and Server 2,
respectively, no matter which meeting room they are used in.

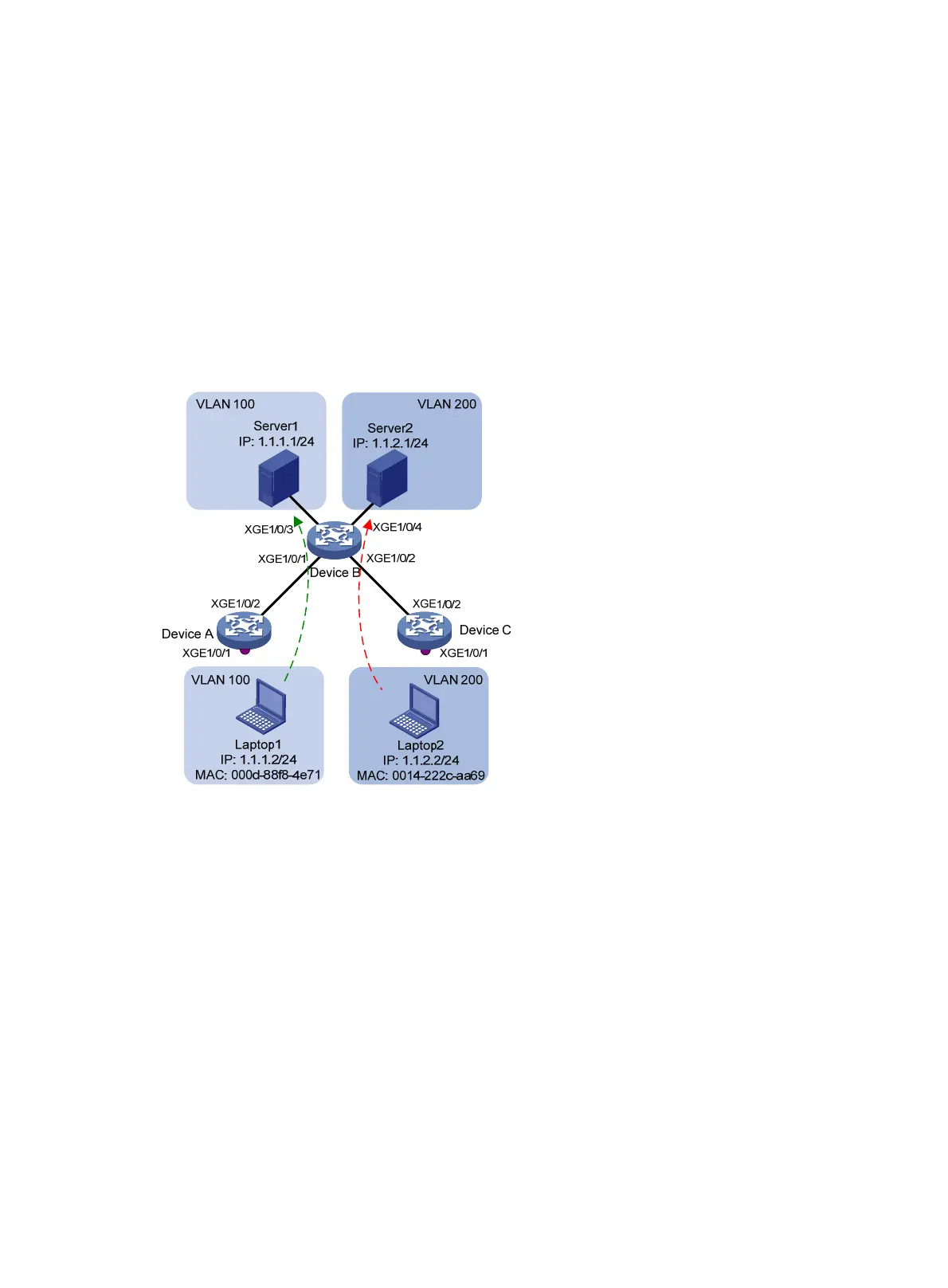

Figure 54 Network diagram
Configuration procedure
1. Configure Device A:
# Create VLANs 100 and 200.
<DeviceA> system-view
[DeviceA] vlan 100
[DeviceA-vlan100] quit
[DeviceA] vlan 200
[DeviceA-vlan200] quit
# Associate the MAC addresses of Laptop 1 and Laptop 2 with VLANs 100 and 200,
respectively.
[DeviceA] mac-vlan mac-address 000d-88f8-4e71 vlan 100
[DeviceA] mac-vlan mac-address 0014-222c-aa69 vlan 200
# Configure Ten-GigabitEthernet 1/0/1 as a hybrid port, and assign it to VLANs 100 and 200 as
an untagged VLAN member.
[DeviceA] interface ten-gigabitethernet 1/0/1
[DeviceA-Ten-GigabitEthernet1/0/1] port link-type hybrid
