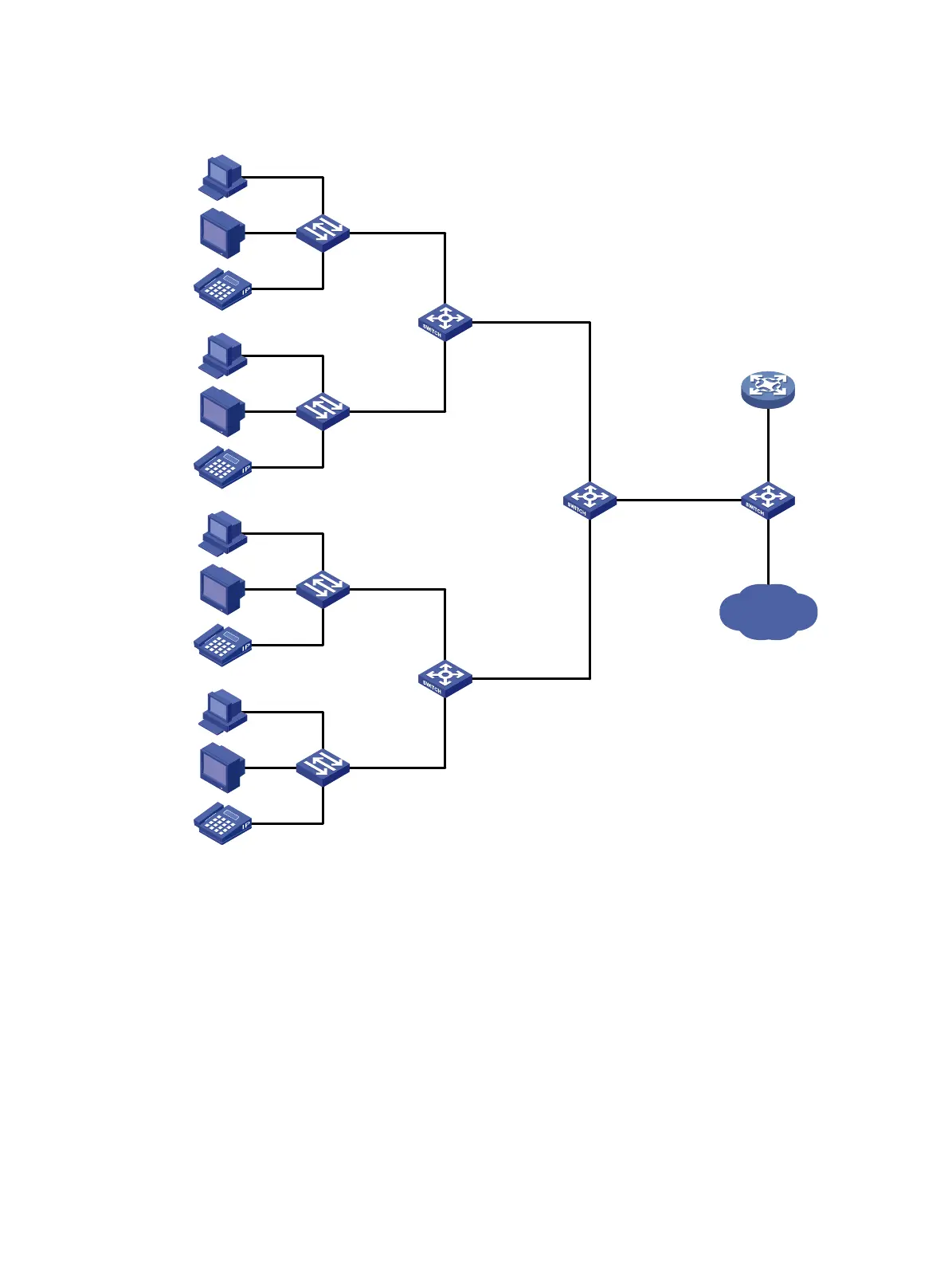

Figure 81 Network diagram
Configuration procedure
1. Configure Switch A:
# Create the original VLANs.
<SwitchA> system-view
[SwitchA] vlan 2 to 3
# Create the translated VLANs.
[SwitchA] vlan 101 to 102
[SwitchA] vlan 201 to 202
[SwitchA] vlan 301 to 302
# Configure customer-side port Ten-GigabitEthernet 1/0/1 as a trunk port.
<SwitchA> system-view
[SwitchA] interface ten-gigabitethernet 1/0/1
[SwitchA-Ten-GigabitEthernet1/0/1] port link-type trunk
VLANs 103–104 -> VLAN 501
VLANs 203
–204 -> VLAN 502
VLANs 303
–304 -> VLAN 503
Campus switch
Switch C
Distribution
network
DHCP client
DHCP server
Wiring-closet
Switch A
VLAN 1 -> VLAN 101
VLAN 2 -> VLAN 201
VLAN 3 -> VLAN 301
VLAN 1 -> VLAN 102
VLAN 2 -> VLAN 202
VLAN 3 -> VLAN 302
PC
VoD
VoIP
VLAN 2
Home gateway
VLAN 1
VLAN 3
PC
VoD
VoIP
VLAN 2
Home gateway
VLAN 1
VLAN 3
VLAN 1 -> VLAN 103
VLAN 2 -> VLAN 203
VLAN 3 -> VLAN 303
VLAN 1 -> VLAN 104
VLAN 2 -> VLAN 204
VLAN 3 -> VLAN 304
PC
VoD
VoIP
VLAN 2
Home gateway
VLAN 1
VLAN 3
PC
VoD
VoIP
VLAN 2
Home gateway
VLAN 1
VLAN 3
Wiring-closet
Switch B
XGE1/0/1
XGE1/0/2
XGE1/0/1
XGE1/0/2
XGE1/0/1
XGE1/0/2
XGE1/0/3
XGE1/0/3
XGE1/0/3
XGE1/0/1
Switch D
VLANs 101–102 -> VLAN 501
VLANs 201
–202 -> VLAN 502
VLANs 301
–302 -> VLAN 503
